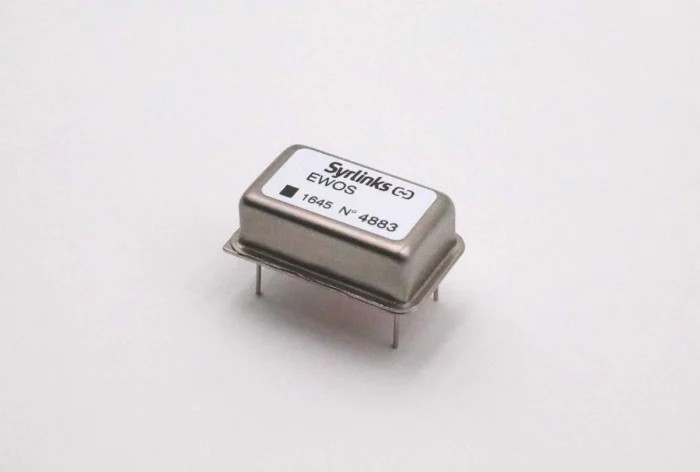

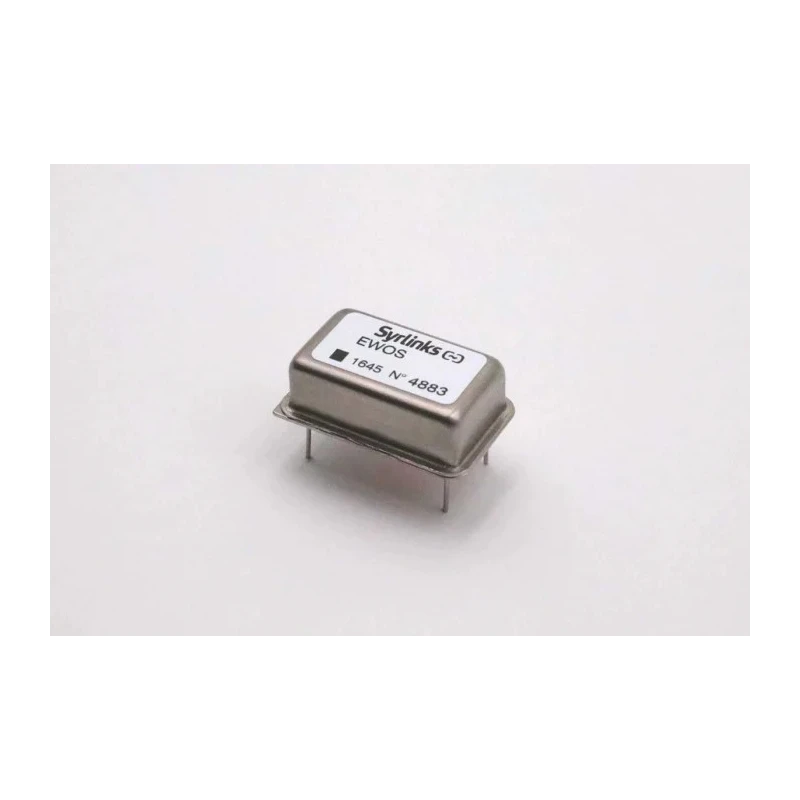

SYRLINKS 10MHz Oscillator DIL14 Low ±70 ppb Load 10pF Clipped Sinewave 5V PCB Mount EWOS10-5V0-B-C1

SYRLINKS EWOS10-5V0-B-C1 is a high precision 10MHz oscillator designed for industrial and laboratory applications where frequency stability and signal integrity are paramount. The device comes in a compact DIL14 Low (Dual In-line) package, allowing easy PCB mounting in electronic assemblies.

This oscillator provides a clipped sinewave output with a load capacitance of 10pF and maintains frequency stability within ±70 parts per billion (ppb), making it ideal for precision timing, communication systems, and instrumentation.

Engineered to operate over a wide temperature range (-30°C to 70°C) and powered by a 5V supply, it guarantees consistent performance under diverse environmental conditions. The device features 4 pins and adheres to stringent military standards including MIL STD 202-214 condition E and MIL-STD-883 Method 2002, Test Condition B, assuring durability and reliability in harsh environments.

With compact dimensions (20.27mm length x 12.65mm width x 6.6mm height), the EWOS10-5V0-B-C1 is suitable for space-constrained applications in aerospace, defense, telecommunications, and industrial control systems.

Stable 10MHz output frequency with ±70 ppb frequency stability. Load capacitance of 10pF for precision load matching. DIL14 Low package fits standard PCB formats. Clipped sinewave output ensures minimal signal distortion.

Wide operating temperature range for reliability. Complies with MIL STD 202 and MIL-STD-883 military qualification standards. Compact size with exact dimensions for design accuracy. Manufactured in France, guaranteeing quality control and high standards.

This Oscillator is widely used in industrial electronics, communication equipment, instrumentation, and aerospace applications that require precise timing signals and dependable operation. EnvMart offers this precision instrument for engineers and designers seeking high stability frequency sources.
