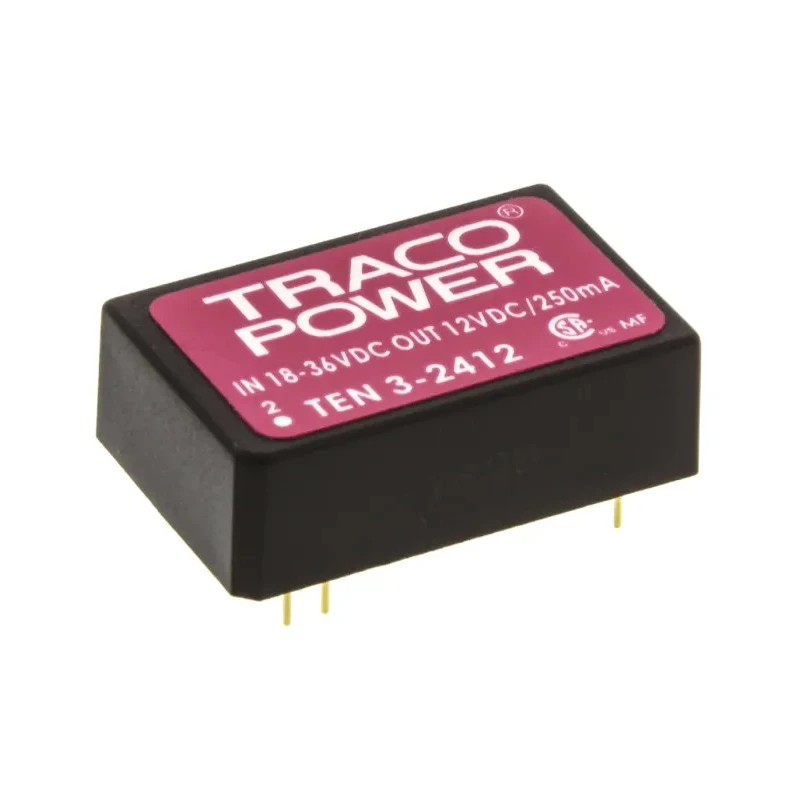

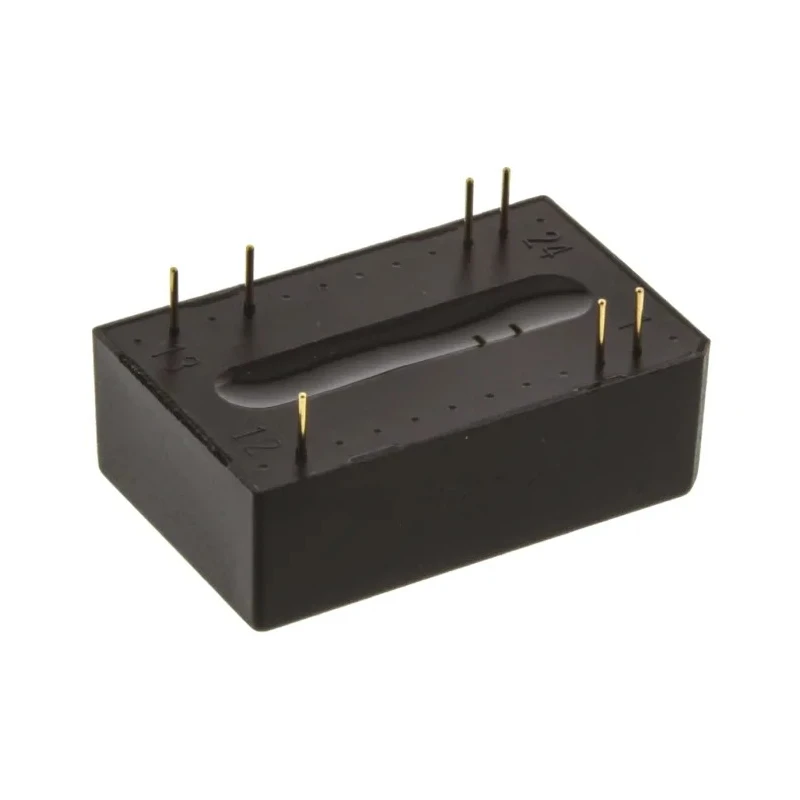

TRACOPOWER DC/DC Converter 12V dc 250mA 36V dc Input 18V Input 3W Through Hole TEN 3-2412
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 12V dc/ 250 mA |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 32mm |
| Model | TEN 3-2412 |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input range |
Key Features
- This DC/DC converter features a through-hole mount type for reliable PCB installation.
- It offers a wide operating temperature range from -40°C to +85°C, suitable for harsh industrial environments.
- The converter provides 1500V DC isolation voltage ensuring safety and noise immunity.
- With high efficiency up to 84%, it promotes power-saving in embedded systems.
- The TEN 3 series package is a surface mount DIP-24 style with 8 pins and a compact length of 32mm and depth of 10.2mm.
- Mean time between failures (MTBF) is rated at 1,100,000 hours, highlighting its long-term reliability.
- This DC/DC converter series is ideal for industrial and communication system applications requiring isolated power conversion.
- Short circuit protection and EMI input filter compliant with EN 55022 Class A and FCC Level A standards are included.
Product Description
TRACOPOWER TEN 3-2412 DC/DC Converter is a regulated isolated power converter designed for industrial and communication systems demanding robust and efficient voltage conversion. It outputs 12V DC at 250mA with a maximum output power of 3W, operating over an input voltage range of 18V to 36V DC, featuring a 2:1 input ratio.
The converter utilizes a through-hole mounting approach in a DIP-24 surface mount package with 8 pins, ensuring ease of PCB installation. Its compact dimensions of 32mm length and 10.2mm depth make it suitable for space-limited designs.
Designed for reliability, the TEN 3 series encompasses full SMD construction with a high MTBF of over 1.1 million hours. Operating temperature ranges from -40°C minimum to +85°C maximum, allowing usage in demanding temperature environments.
This converter delivers an isolation voltage of 1500V DC, providing effective separation between input and output circuits for safety and noise reduction. It features advanced input filter circuitry to meet EN 55022 Class A and FCC Level A without external components, and includes short circuit protection for secure operation.
Efficiency reaches 84%, improving overall power utilization in embedded and communication applications. Although it has no listed standards or approvals for this specific product, it fits many industrial requirements.
Reliable isolated DC/DC conversion with regulated 12V output at 250mA current. Wide input voltage range from 18V to 36V supporting various power sources. Through-hole mount type with DIP-24 surface mount package design. High MTBF of 1,100,000 hours for long service life in industrial use.
Temperature endurance from -40°C to +85°C for harsh environments. 1500V DC isolation voltage enables safe signal and power separation. Efficiency up to 84% ensures minimal energy loss and heat generation. EMI input filter compliant with CE and FCC Class A standards included internally.
Short circuit protection safeguards converter and connected components.
Manufactured in Taiwan, Province of China, this TRACOPOWER TEN 3-2412 model suits applications ranging from industrial control systems to communication equipment requiring step-down isolated DC-DC power conversion. Browse the DC/DC Converter category on EnvMart for more options to suit your industrial electronics requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 12V DC at a current of 250mA, with a maximum output power of 3W.
The input voltage range for the TEN 3-2412 is from 18V to 36V DC, featuring a 2:1 input ratio.
The efficiency of the TEN 3-2412 is rated at up to 84%, promoting power-saving in embedded systems.
This unit has a length of 32mm and a depth of 10.2mm, making it suitable for space-limited designs.
The TEN 3-2412 features a through-hole mount type for reliable PCB installation.
It provides an isolation voltage of 1500V DC, ensuring safety and noise immunity between input and output circuits.
The operating temperature range for the TEN 3-2412 is from -40°C to +85°C, suitable for harsh industrial environments.
This converter has one output.
The MTBF for the TEN 3-2412 is rated at 1,100,000 hours, indicating its long-term reliability.
It includes an EMI input filter compliant with EN 55022 Class A and FCC Level A standards.
This model is ideal for industrial and communication system applications requiring isolated power conversion.
The TEN 3-2412 comes in a surface mount DIP-24 package type with 8 pins.
