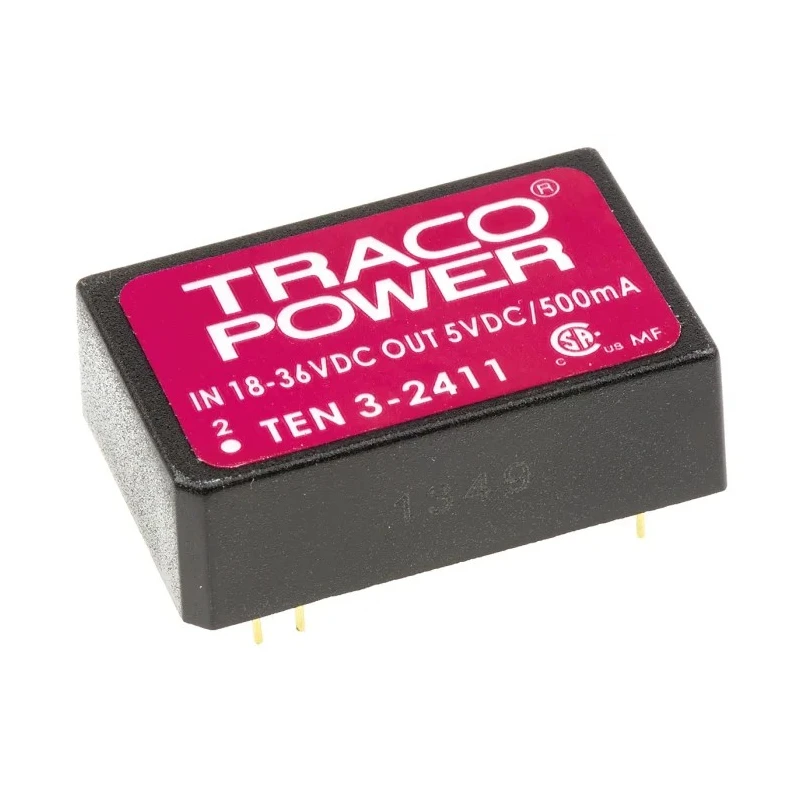

TRACOPOWER TEN 3-2411 DC/DC Converter 5V DC 500mA 18-36V DC Input 2.5W Surface Mount PCB 85°C Max -40°C Min
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 5V dc/ 500 mA, 3 |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 32mm |
| Model | TEN 3-2411 |
| Depth | 10.2mm |
| Width | 31.8mm |
| Mount Type | PCB |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 2.5W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 500mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- This converter operates over a wide temperature range from -40°C to +85°C.
- It features 79% efficiency to reduce heat generation during operation.
- The unit includes 1.5kV DC isolation for protection against voltage surges.
- Designed with a 24-pin DIP-24 package for easy PCB mounting.
- Continuous short-circuit protection with automatic reset ensures safety.
- Industry-standard pinout simplifies integration into existing designs.
- Compact dimensions of 32mm length, 31.8mm width, and 10.2mm depth.
- Suitable for industrial control systems, data centers, and radar technology applications.
Product Description
TRACOPOWER TEN 3-2411 DC/DC Converter delivers efficient and stable 5V DC output at 500mA current, operating from an input voltage range between 18V and 36V DC. This surface mount device offers a maximum power output of 2.5W and is housed in a DIP-24 plastic casing that is flame retardant and provides functional insulation.
With a robust efficiency rating of 79%, this converter minimizes energy loss and heat production, allowing operation within a broad temperature range from -40°C to +85°C without needing additional cooling measures such as fans or heatsinks.
Its design includes 1.5kV DC isolation, effectively shielding sensitive electronics from voltage spikes and surges, enhancing overall circuit reliability. The 24-pin DIP-24 package facilitates easy mounting and compatibility with PCB layouts following industry standards.
Additional safety features include continuous short-circuit protection with automatic reset, ensuring protection for both the converter and connected equipment against faults.
This model is particularly useful in demanding industrial environments, including industrial control systems, data centers, and radar technologies, where reliable low-noise power conversion is essential.
The compact size measuring 32mm in length, 31.8mm in width, and 10.2mm in depth allows for space-efficient integration in various electronic assemblies. This DC/DC converter delivers stable 5V DC output with 500mA current capacity.
Operates efficiently at 79% with minimal heat production. Wide input voltage range from 18V to 36V DC supports diverse applications. Enhanced safety via 1.5kV DC isolation and continuous short-circuit protection. Compact DIP-24 surface mount package designed for ease of PCB installation.
Suitable for use in industrial control, data center, and radar system environments. Wide operating temperature range from -40°C to +85°C. Explore further TRACOPOWER DC/DC Converters and power supply solutions in EnvMart’s extensive catalog for dependable industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within an input voltage range of 18V to 36V DC.
The maximum output power of the TEN 3-2411 is 2.5W.
It provides a stable output current of 500mA.
This converter has an efficiency rating of 79%.
The converter measures 32mm in length, 31.8mm in width, and 10.2mm in depth.
It is designed for surface mount on PCBs with a 24-pin DIP-24 package.
It operates effectively within a temperature range of -40°C to +85°C.
It includes 1.5kV DC isolation and continuous short-circuit protection with automatic reset.
This model is suitable for industrial control systems, data centers, and radar technology applications.
The isolation voltage for this converter is 1.5kV DC, which protects against voltage surges.
The TEN 3-2411 has a single output.
The MTBF for the TEN 3-2411 is rated at 700,000 hours.
