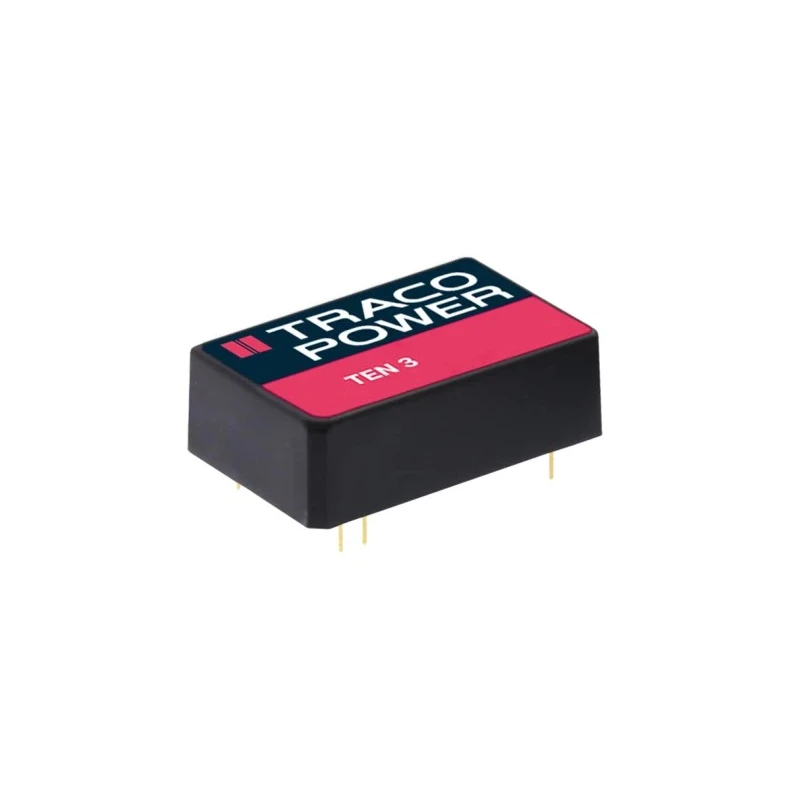

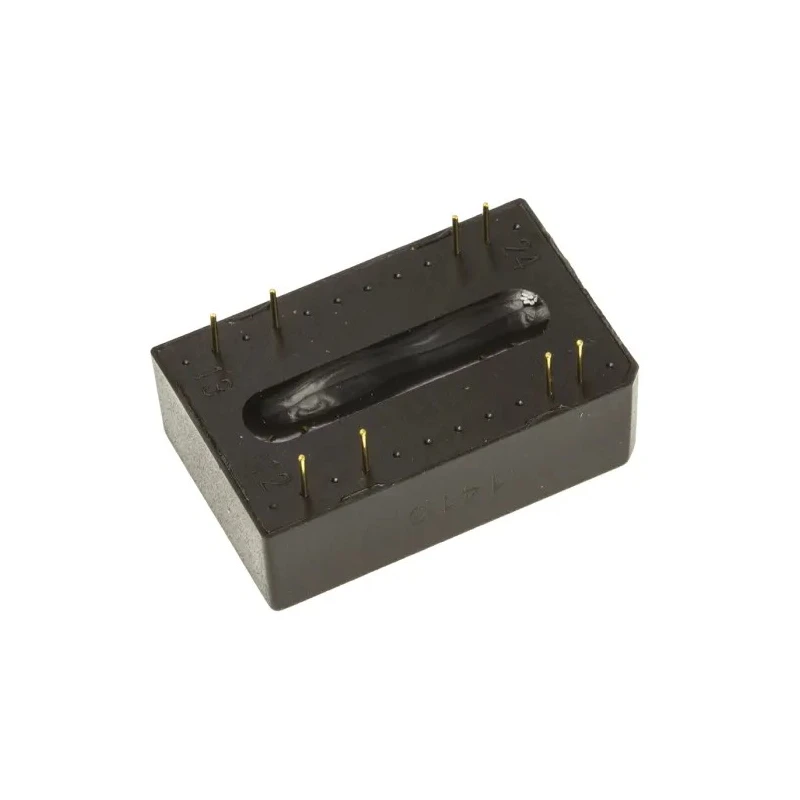

TRACOPOWER TEN 3 Series Regulated Isolated DC-DC Converter 15V DC Output 100 mA 3W Through Hole TEN 3-1223
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 15V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 32mm |
| Model | TEN 3-1223 |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -15V dc |
| Wide 2 | 1 input range |
Key Features
- Wide input voltage range from 9V to 18V DC allows versatile application.
- Compact DIP-24 through hole package eases PCB mounting and integration.
- High efficiency up to 80% reduces power loss and heat generation.
- Operational temperature range from -40°C to +85°C supports harsh environments.
- Dual isolated outputs with 1.5 kV DC isolation enhance safety and noise reduction.
- Built-in short circuit protection ensures device and system reliability.
- MTBF rated over 1,100,000 hours guarantees long-term dependable performance.
- Ideal for industrial and communication applications requiring stable DC power.
Product Description
TRACOPOWER TEN 3-1223 is a regulated and isolated DC-DC converter designed for industrial and communication systems. It delivers a stable 15V DC output at 100 mA with a maximum output power of 3W. Its through hole mounting package ensures easy installation in electronic circuits and PCB layouts. The device supports a wide input voltage range of 9V to 18V DC, making it versatile for various power conditions.
This converter features high efficiency of approximately 80%, minimizing energy dissipation and thermal load. Operating reliably within temperatures from -40°C to +85°C, it suits harsh industrial environments.
The converter includes dual output capability with an isolation voltage rating of 1.5 kV DC, enhancing electrical isolation and safety. With an MTBF of over 1.1 million hours, the TEN 3-1223 ensures long-term dependable performance.
Additional benefits include a full surface mount design that improves mechanical stability and reduces noise. Short circuit protection is built in to protect the device and connected circuits.
Typical applications encompass industrial automation, communication equipment, measurement devices, and embedded systems requiring isolated and stable DC voltages. Wide 2:1 input voltage range from 9V to 18V DC. Output voltage of 15V DC with 100 mA output current.
High efficiency up to 80% rated at 3W output power. Operating temperature range: -40°C to +85°C. Isolation voltage: 1.5 kV DC for safe operation. Through hole mount in a compact 32mm x 10.2mm package. MTBF over 1,100,000 hours indicating high reliability.
Short circuit protection for device safety.
Set your designs apart with a high-quality DC-DC converter engineered for industrial-grade performance. Explore more TRACOPOWER products and converters on EnvMart for expanding your power solutions.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V DC with an output current of 100 mA.
It supports a wide input voltage range from 9V to 18V DC, allowing for versatile application in various power conditions.
The maximum output power of the TEN 3-1223 is 3W.
It has an efficiency rating of up to 80%, which helps minimize energy dissipation and thermal load.
This unit has dimensions of 32mm in length and 10.2mm in depth.
It operates reliably within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
This model features a through hole mounting type, which eases PCB integration.
It has an isolation voltage rating of 1.5 kV DC, enhancing electrical isolation and safety.
This converter provides dual isolated outputs.
It includes built-in short circuit protection to ensure the reliability of the device and connected circuits.
The mean time between failures (MTBF) for this model is rated over 1,100,000 hours, indicating high reliability.
It is ideal for industrial automation, communication equipment, measurement devices, and embedded systems requiring stable DC power.
