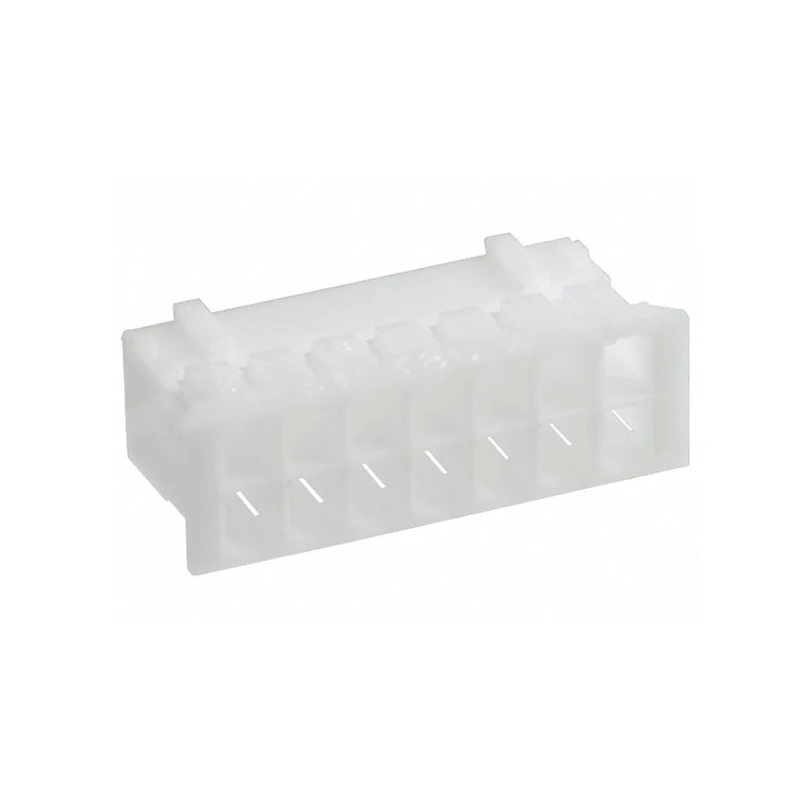

JST PHD Female Connector Housing 2 mm Pitch 14 Way 2 Row Straight PHDR-14VS

JST PHDR-14VS female connector housing is part of the PHD Series, designed for reliable, high-density wire-to-board connections with a 2.0 mm pitch and double-row 14-way configuration. This connector housing is constructed from polyamide to provide durability and insulation in electronic assemblies.

With a compact length of 15.9 mm and width of 7.3 mm, it accommodates 14 female contacts arranged in two rows, making it ideal for applications requiring a straight PCB mount. The low-profile design, with an assembly height of just 8.8 mm after mating, addresses space-saving requirements in dense circuit board layouts.

This product is intended for use with JST PHD crimp connectors, offering secure electrical connections in various electronic devices and systems. The housing material ensures long-term mechanical and environmental resistance, suitable for industrial electronics manufacturing.

The contacts used with this housing need to be purchased separately, compatible with specific JST stock numbers. This modular system allows flexibility in designing custom wiring harnesses and electronic assemblies with precise connector arrangements.

The PHDR-14VS Connector Housing finds application across industrial electronics, automation equipment, telecommunications devices, and other commercial electronic assemblies requiring reliable and compact PCB connectors.

Compact 2.0 mm pitch double-row design for space efficiency. Polyamide housing ensures durability and insulation. PCB mount with straight orientation simplifies assembly. Low profile height suitable for dense electronic circuits.

Contact housing supports secure and reliable connections, with contacts sold separately. Designed for electronic and industrial manufacturing use cases. Manufactured in China, meeting JST quality standards. Explore more connector solutions from JST and related electronic components at EnvMart for your industrial and commercial applications.
