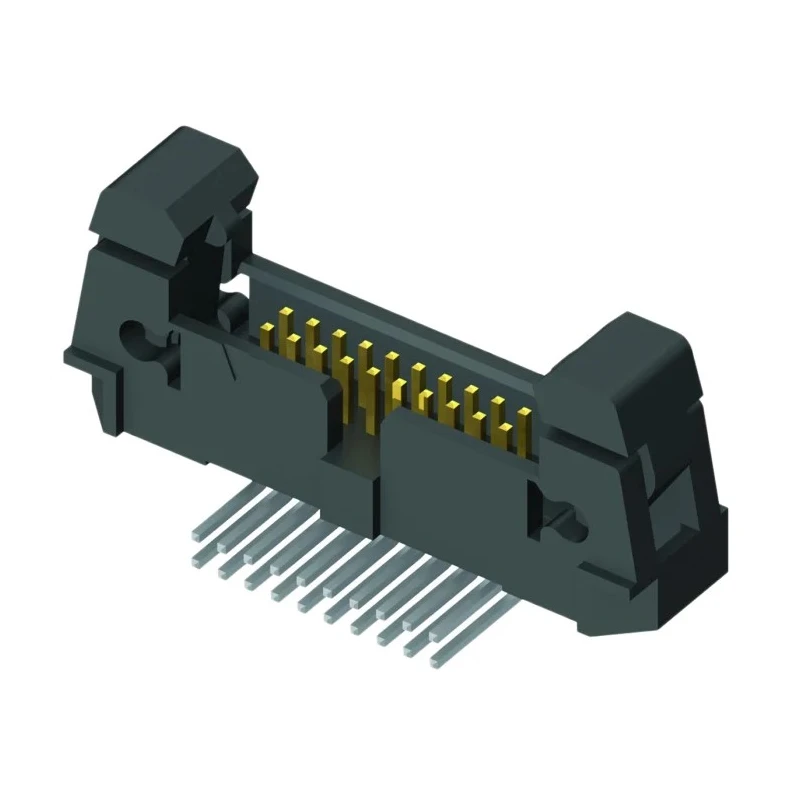

Samtec EHF Series Right Angle Through Hole Shrouded PCB Header, 50 Contacts, 1.27 mm Pitch, 2 Row EHF-125-01-L-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 1.75A |
| Model | EHF-125-01-L-D-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | EHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.29mm |
| Mating Pin Length | 3.05mm |
Key Features
- Features a double row configuration with shrouded design for secure connections.
- Constructed using liquid crystal polymer housing for high durability and performance.
- Contact material is phosphor bronze with gold plating to ensure excellent conductivity and corrosion resistance.
- Rated for a current of 1.75 A, suitable for various electronic applications.
- Operating temperature range from -55°C to 125°C ensures reliability in diverse environmental conditions.
- Contact tail pin length is 2.29 mm; mating pin length is 3.05 mm for reliable soldering and connection.
- Designed with a wire-to-board connector system and solder termination type.
- Ideal for industrial electronics, manufacturing, and PCB assembly applications.
Product Description
Samtec EHF-125-01-L-D-RA is a high-quality right angle through hole shrouded PCB header designed for reliable electronic connections in industrial and commercial electronics. This PCB header features a 1.27 mm pitch with 50 male contacts arranged in two rows, ensuring compact and secure interconnections.
The housing is made of liquid crystal polymer, offering excellent mechanical strength, temperature resistance, and durability in harsh environments. Contacts are crafted from phosphor bronze and plated with gold for superior conductivity and corrosion resistance, making it suitable for demanding electrical applications.
Rated for 1.75 A current, this connector supports high-performance signal and power transmission in PCB assemblies, meeting the demands of manufacturing, industrial automation, and electronic equipment.
The product operates in a wide temperature range from -55°C to 125°C, allowing it to maintain performance stability under varying conditions. The termination type is solder, with tail pin length of 2.29 mm and mating pin length of 3.05 mm, designed for robust solder joints and durable wire-to-board connections.
The shrouded design provides polarization for accurate mating and ejector latches aid easy and secure connector removal, enhancing maintenance and reliability. Features a double row shrouded design for secure, accurate connections.
Constructed of durable liquid crystal polymer housing resistant to temperature extremes. Gold plated phosphor bronze contacts ensure excellent electrical performance. Rated current of 1.75 A suited for various industrial and manufacturing applications.
Suitable for PCBs requiring reliable wire-to-board right angle connections. Wide operating temperature range from -55°C to 125°C guarantees stability. Designed for through-hole mounting with easy solder termination. Includes ejector latches for efficient connector disengagement.
This Samtec PCB header series is widely used across different industrial sectors including electronics manufacturing, industrial automation, and other high-reliability environments.
Explore more high-quality PCB connectors and headers in the Electronics Components category at EnvMart for your design and manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1.75 A, making it suitable for various electronic applications.
The contacts in this PCB header are arranged with a pitch of 1.27 mm.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
It operates within a wide temperature range from -55°C to 125°C, ensuring reliability in diverse environmental conditions.
This PCB header features 50 male contacts arranged in two rows.
The termination type for this model is solder, designed for robust solder joints in wire-to-board connections.
The tail pin length is 2.29 mm, which aids in reliable soldering and connection.
The mating pin length is 3.05 mm, designed to ensure a secure connection.
This model features a right angle orientation, suitable for various PCB layouts.
It is designed with a wire-to-board connector system, enhancing its application in PCB assemblies.
Yes, it is ideal for industrial electronics, manufacturing, and PCB assembly applications due to its robust design and specifications.
The shrouded design provides polarization for accurate mating and includes ejector latches for easy and secure connector removal.
