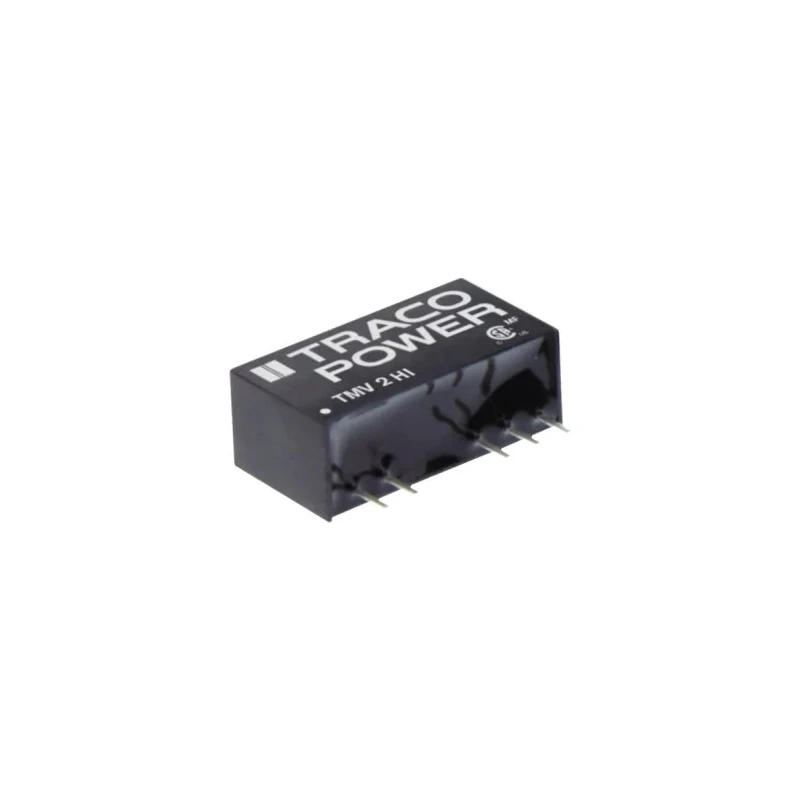

TRACOPOWER TMV 2HI DC/DC Converter, 9V DC Output, 112 mA, 13.2V DC Input, 10.8V Min Input, 2W, Through Hole TMV 2-1209DHI

TRACOPOWER TMV 2-1209DHI TMV 2HI DC/DC Converter is a miniature, isolated, 2 Watt power supply module with a SIP-7 through-hole package, designed for industrial and electronic applications requiring stable DC voltage conversion.

This converter operates efficiently with an input voltage range between 10.8V and 13.2V DC, delivering a regulated 9V DC output at 112 mA current, making it ideal for power-sensitive equipment.

With a high isolation voltage rating of 5.2 kV DC and 76% conversion efficiency, the TMV 2HI series ensures electrical safety and reliable performance even in demanding environments.

The device supports dual outputs with an adjustable voltage range of ±9.45 V DC, suitable for versatile applications including IGBT drivers and industrial controls. Its operating temperature range from -40°C to 85°C without derating allows deployment in harsh and temperature-variable conditions.

Compact SIP-7 through-hole mounting package measuring 19.5mm by 7.1mm by 10.2mm. Continuous short-circuit protection for enhanced safety and product longevity. Industry standard pinout with 5 pins simplifies PCB integration.

MTBF rating of 1,100,000 hours demonstrates high reliability. Certified according to CAN/CSA, ANSI/UL, IEC, and EN 60950-1 standards.

This DC/DC Converter is widely used in industrial automation, transportation electronics, telecommunications, and other commercial equipment where compact power conversion is crucial.

Choose TRACOPOWER TMV 2-1209DHI for a dependable, high-isolation, and efficient DC/DC power supply solution in your next project.
