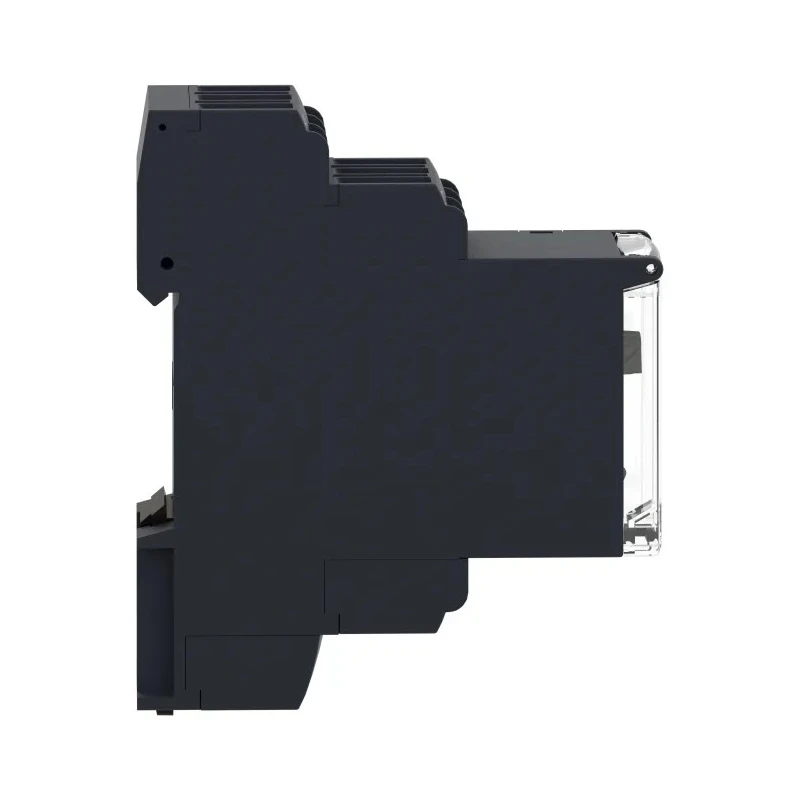

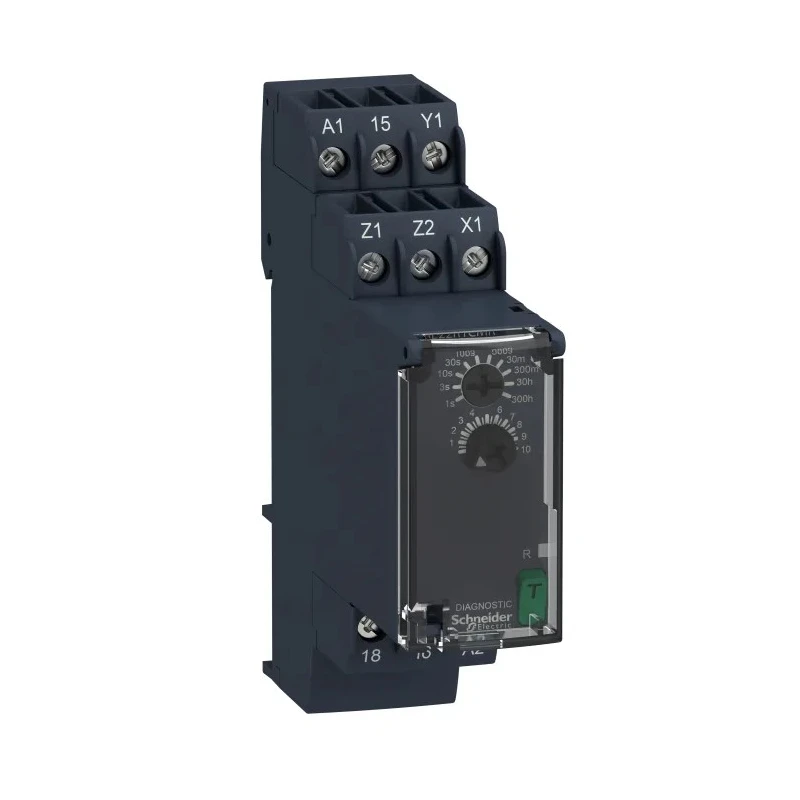

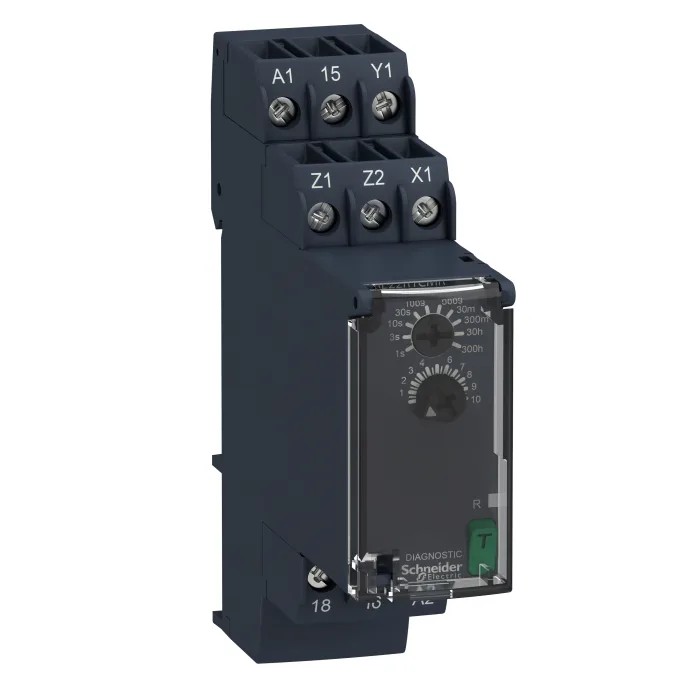

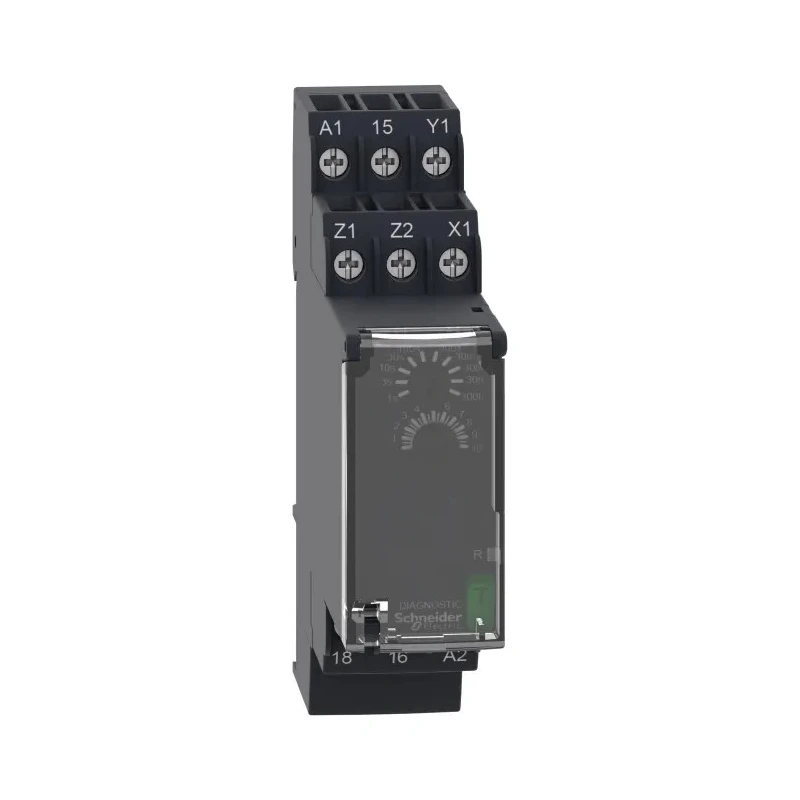

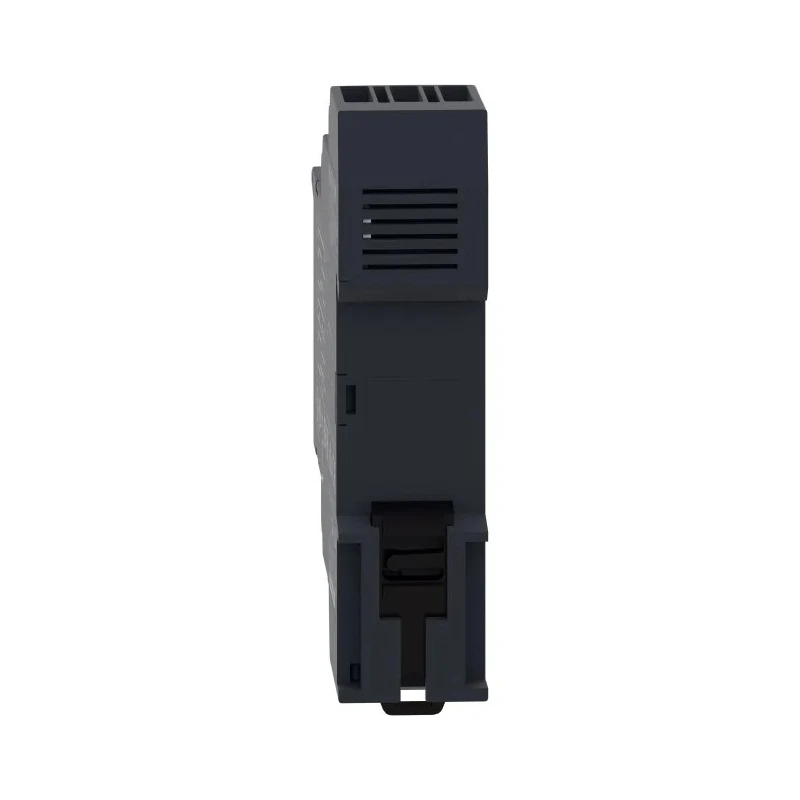

Schneider Electric Harmony Time Series DIN Rail Timer Relay 1-Contact 24 to 240 V DC/AC 250 V AC 8A OFF Delay RE22R1CMR
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 79.5mm |
| Function | 90° Offset |
| Length | 22.9mm |
| Model | RE22R1CMR |
| IP Rating | IP40, IP50, IP20 |
| Mode | OFF Delay |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply DC Voltage | 24 to 240 V dc V |
| Timing Adjustment | Knob |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Compact and high-performance timing relay for industrial automation.
- Equipped with a 90° offset function for precise time control.
- Robust screw terminal connections ensure reliable wiring.
- Operates reliably across -20°C to 60°C temperature range.
- Complies with multiple international standards and approvals.
- Simple timing adjustment via knob and diagnostic button.
- Designed for automation of lighting, motor start control, conveyors, HVAC, and safety systems.
Product Description
Schneider Electric RE22R1CMR Harmony Time Series DIN Rail Timer Relay is a versatile industrial relay designed to control timing events with a single contact configuration (SPDT). This relay supports a wide supply voltage range from 24 to 240 V DC or AC, capable of switching up to 250 V AC at 8A. It includes one timer function with OFF delay, allowing accurate timing control via a knob adjustment and diagnostic button for ease of setup.
Specifically mounted on DIN rails, it operates effectively within temperatures ranging from -20°C to 60°C. The relay is built for demanding industrial environments featuring multiple protection ratings: IP50 on the front panel, IP40 housing, and IP20 terminal block conforming to IEC 60529 standards. This ensures durability against dust and contact protection suitable for various electrical installation requirements.
The RE22R1CMR relay complies with international standards including CCC, UL, CSA, GL, RCM, CE, UL 508, EAC, and IEC 61812-1, offering trustworthy safety and performance. Its compact dimensions (90 mm width, 79.5 mm height, 22.9 mm length) allow integration into control panels and sub-panels seamlessly.
This timer relay is ideal for diverse industrial automation applications such as lighting circuits, motor start control, safety control systems, conveyor belt sequence delays, and HVAC management. Its reliable screw terminal connections make it a user-friendly and efficient solution for automation tasks requiring precise time delays.
Set contains 1 Pc Schneider Electric Harmony Time Series DIN Rail Timer Relay model RE22R1CMR. Compact, high-performance automation timer relay with OFF Delay function. Wide AC/DC supply voltage range from 24 to 240 V enabling flexible installation.
Reliable screw terminals for secure wiring connections. High ingress protection ratings for robust industrial environments. Diagnostic button and simple knob for intuitive timing adjustments. Durable construction backed by multiple international certifications.
Perfect for industrial, construction, and electrical automation sectors requiring dependable timer relays for process control and safety functions. Explore more Schneider Electric control products and Timer Relays on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a supply voltage range from 24 to 240 V DC or AC.
It can handle a maximum contact current of 8A.
This model has dimensions of 90 mm in width, 79.5 mm in height, and 22.9 mm in length.
The operating temperature range is from -20°C to 60°C.
It is designed for DIN rail mounting.
The relay features a single contact configuration, specifically SPDT (Single Pole Double Throw).
Yes, it has IP ratings of IP50 on the front panel, IP40 for the housing, and IP20 for the terminal block, conforming to IEC 60529 standards.
It features an OFF delay timing function, allowing for precise control of timing events.
Timing adjustment is made simple via a knob and a diagnostic button.
It complies with multiple international standards including CCC, UL, CSA, GL, RCM, CE, UL 508, EAC, and IEC 61812-1.
It is suitable for various industrial automation applications such as lighting control, motor start control, safety systems, conveyor belt delays, and HVAC management.
It uses reliable screw terminal connections for secure wiring.
