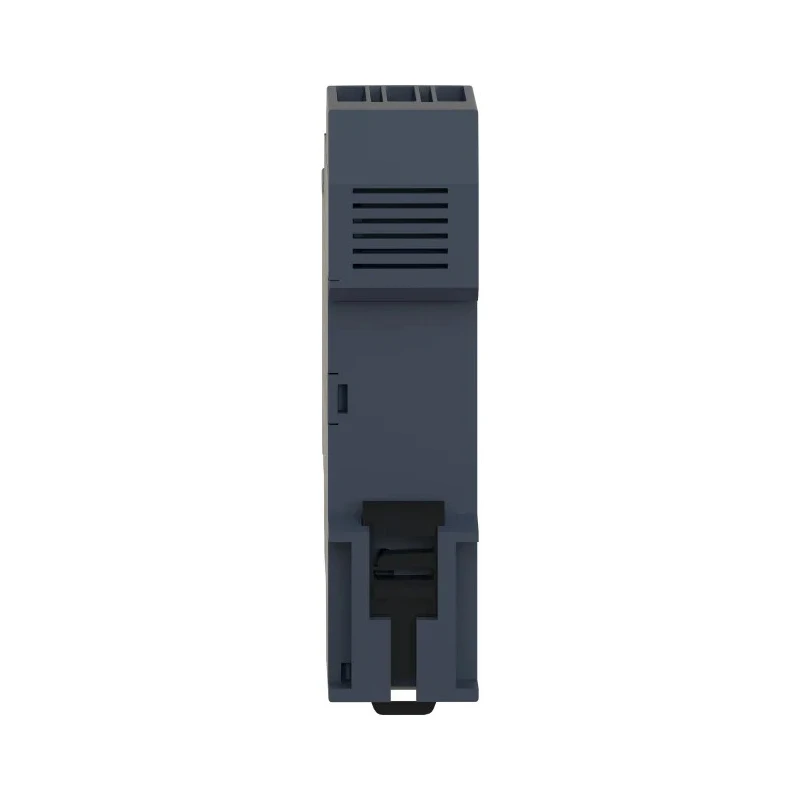

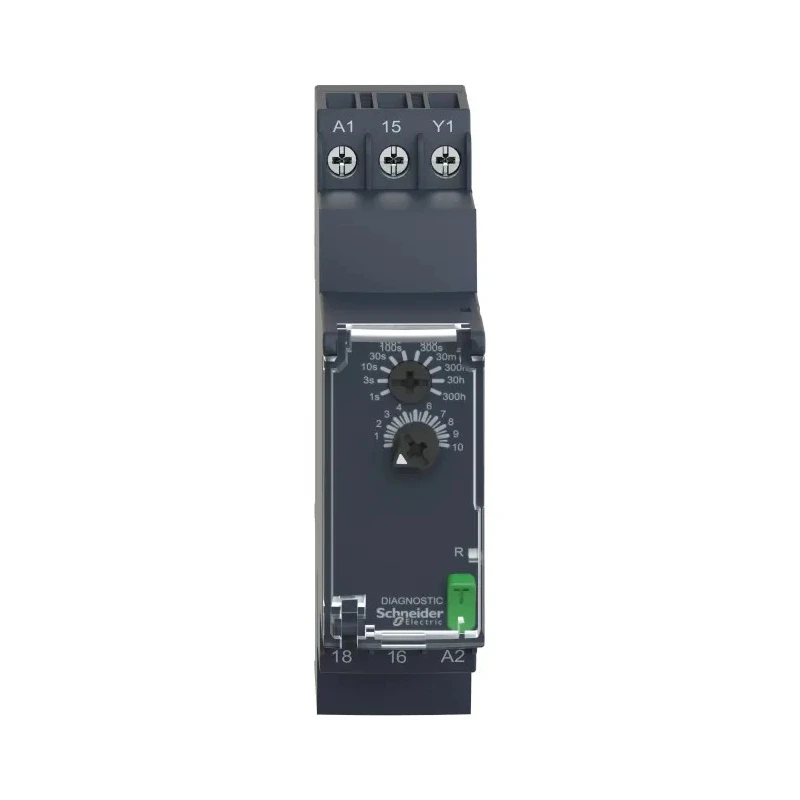

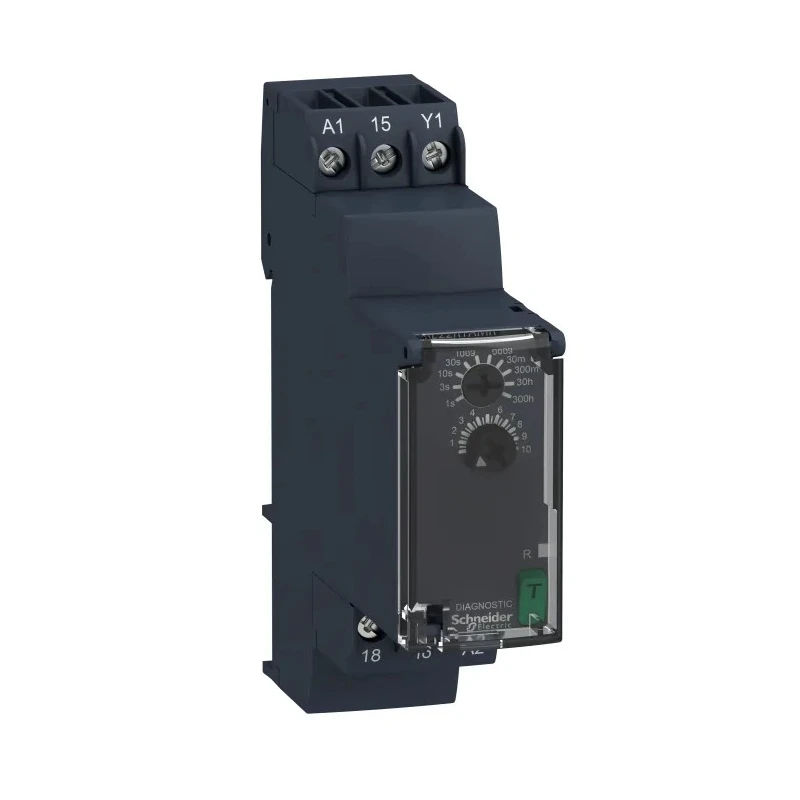

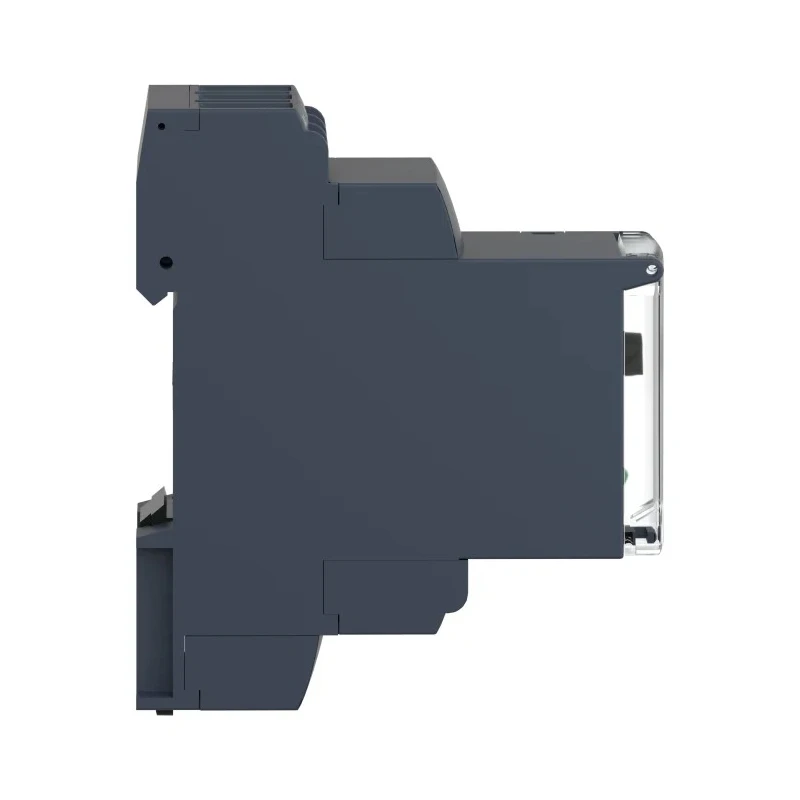

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 1-Contact, 24 to 240 V dc 24V ac, 240 V ac, ON Delay RE22R1AMR

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 1-Contact, 24 to 240 V dc 24V ac, 240 V ac, ON Delay RE22R1AMR

Name: Schneider Electric Harmony Time Series DIN Rail Timer Relay, 1-Contact, 24 to 240 V dc 24V ac, 240 V ac, ON Delay RE22R1AMR
Brand: Schneider Electric
SKU: 110232
Price: 116.17 USD
Availability: InStock



Category Timer Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	Indonesia
Brand	Schneider Electric
Height	79.5mm
Function	Offset Double Ring End
Length	22.9mm
Model	RE22R1AMR
IP Rating	IP20, IP50, IP40
Mode	ON Delay
Width	90mm
Mount Type	DIN Rail
Series	Harmony Time
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number of Contacts	1
Number of Timer Functions	1
Switching Voltage	250V ac
Contact Current	8A
Supply DC Voltage	24 to 240 V dc
Timing Adjustment	Knob
Supply AC Voltage	24, 240V ac

Key Features

Offers 10 selectable timing ranges from 0.05 seconds to 300 hours for versatile timing control.
Equipped with a 1 C/O SPDT contact relay rated for 8A switching current.
Features LED state indication for operational status monitoring.
Compact solid-state design with a profile width of 22.5mm for space-saving installation.
Screw terminal connections provide secure and reliable wiring.
Wide supply voltage range supports both AC and DC voltage inputs.
Self-extinguishing housing ensures safety and durability in industrial environments.
Operational temperature range from -20°C to 60°C for robust performance.

Product Description

Schneider Electric RE22R1AMR Harmony Time Series DIN Rail Timer Relay is a high precision, compact single-function timer relay designed for reliable time control in industrial and process automation applications. It operates over a broad supply voltage range of 24 to 240 V dc and 24/240 V ac with an ON Delay function, making it suitable for diverse control systems.

This timer relay features 10 selectable timing ranges from 0.05 seconds to 300 hours, selectable via dual rotary switches on the unit's front, enabling flexible adaptation to various timing requirements. The relay contains one SPDT (single-pole double-throw) contact rated at 8A for switching loads up to 250 V ac, ensuring dependable switching performance.

The unit incorporates LED state indication for clear operational feedback and includes a solid-state, self-extinguishing housing that complies with multiple international standards such as IEC 61812-1 and UL 508. The compact design with a 22.5 mm profile width helps optimize space in control panels.

Screw terminal connectors allow secure wiring and make installation straightforward. It is suitable for application in industries such as textiles, chemical processing, mining, irrigation, raw material handling, food and beverage production, and industrial process control.

10 timing ranges from 0.05 seconds to 300 hours enable versatile timing options. Wide supply voltage compatibility from 24 V dc/ac to 240 V ac/dc. Single 8A SPDT contact for reliable load switching. LED indication for operational status monitoring.

Compact 22.5 mm profile for efficient DIN rail mounting. Screw terminal connections for secure wiring. Self-extinguishing housing enhances safety and durability. Operating temperature range of -20°C to 60°C suited for harsh environments.

Repeat accuracy of ±0.5% provides precision control.

This DIN rail Timer Relay from Schneider Electric is ideal for a wide range of industrial automation and process control systems, providing accurate and durable timing functions with flexible voltage and timing options. Discover more from the Electronics & Electricals category at EnvMart for all your relay and automation component needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model offers 10 selectable timing ranges from 0.05 seconds to 300 hours, allowing for versatile timing control in various applications.

It operates over a broad supply voltage range of 24 to 240 V DC and 24/240 V AC, making it compatible with various control systems.

This unit has a single-pole double-throw (SPDT) contact configuration rated for 8A, suitable for reliable load switching up to 250 V AC.

The dimensions of this model are 79.5 mm in height, 22.9 mm in length, and 90 mm in width, making it compact for DIN rail mounting.

It can operate within a temperature range of -20°C to 60°C, which is suitable for various industrial environments.

Timing adjustment is made using a knob located on the front of the unit, allowing for easy selection of the desired timing range.

It features screw terminal connections, which provide secure and reliable wiring for installation.

The repeat accuracy of this model is ±0.5%, providing precision control for timing functions.

The housing is made of self-extinguishing material, enhancing safety and durability in industrial applications.

This timer relay is suitable for a variety of industries, including textiles, chemical processing, mining, irrigation, and food and beverage production.

It complies with multiple international standards, including IEC 61812-1 and UL 508, ensuring it meets safety and performance criteria.

This model is designed for DIN rail mounting, which optimizes space in control panels.
