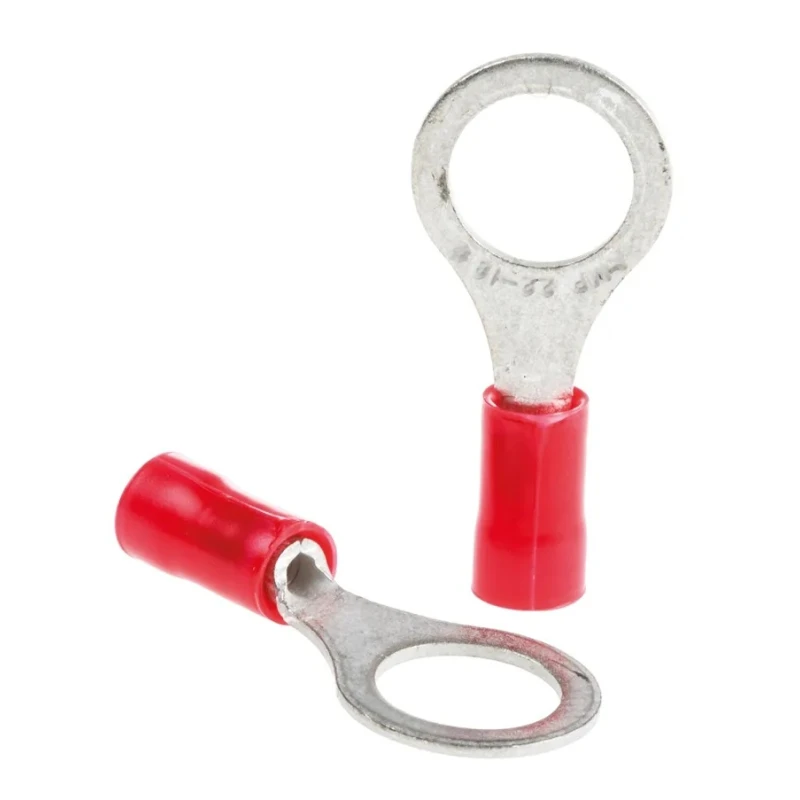

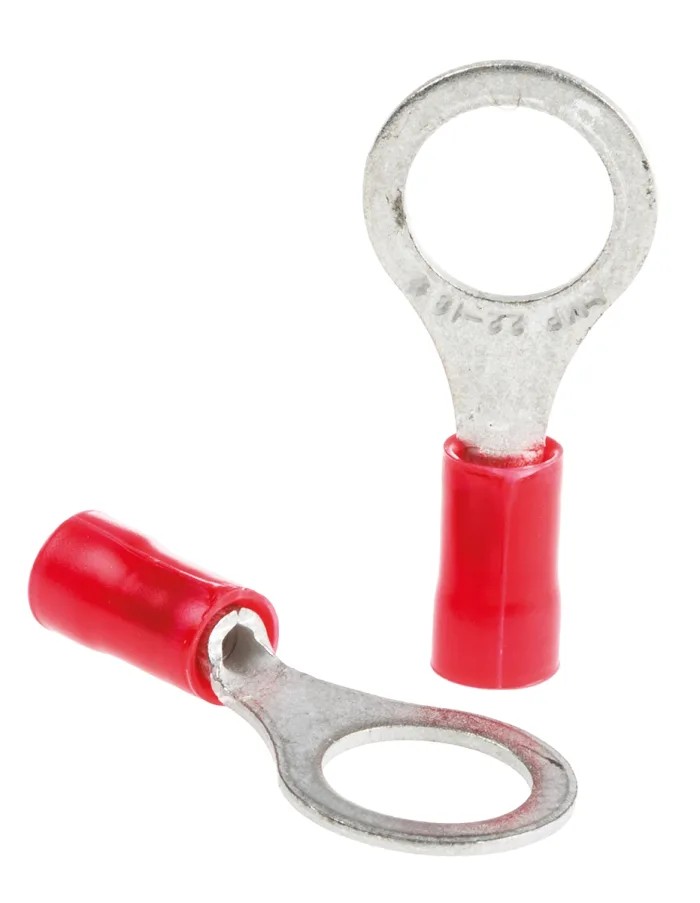

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M8 Stud Size 22 AWG 16 AWG Wire Size Red 34151
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 34151 |
| Insulation | Insulated |
| Overall Length | 27.69mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
| RS PRO Insulated Ring Terminal, M8 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
Key Features
- High conductivity tin plated copper contact for excellent electrical performance.
- PLASTI-GRIP closed barrel design with serrated inner barrel for maximum electrical contact and tensile strength after crimping.
- Vinyl insulation rated 94V-0 offers high dielectric strength.
- Red color coding identifies wire size range of 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²).
- Outer ring diameter of 11.91 mm and inner ring diameter of 8.33 mm for precise fit on M8 studs.
- Overall length 27.69 mm and thickness 0.79 mm provide sturdy mechanical strength.
- Maximum operating temperature of 105°C suitable for demanding electrical applications.
- Ideal for electrical connectors in industrial, electronic component assembly, and power distribution systems.
Product Description
TE Connectivity 34151 PLASTI-GRIP Insulated Ring Terminal is a high-quality electrical wire crimp terminal designed for reliable and durable connections in electrical and electronic components. Featuring an M8 stud size and compatible with wire sizes ranging from 22 AWG to 16 AWG, this wire terminal incorporates a vinyl insulation sleeve with high dielectric strength rated 94V-0, ensuring protection against electrical shocks and environmental conditions.
The terminal's contact is made from high conductivity copper plated with tin to optimize electrical conductivity and corrosion resistance. The serrated inner barrel enhances the mechanical and electrical connection by providing maximum tensile strength post-crimping. The funneled wire barrel entry facilitates easy insertion of stripped wires, improving installation efficiency.
Key physical dimensions include an outer ring diameter of 11.91 mm, inner ring diameter of 8.33 mm, overall length of 27.69 mm, and contact thickness of 0.79 mm. The terminal's red vinyl insulation color codes it for wire sizes 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²). It is rated for a maximum operating temperature of 105°C, making it suitable for various industrial, laboratory, manufacturing, and power distribution applications requiring dependable insulated ring terminal connections.
High conductivity tin plated copper contact for excellent electrical performance. PLASTI-GRIP closed barrel design with serrated inner barrel for strong mechanical retention. Vinyl insulation rated 94V-0 provides superior dielectric strength.
Red vinyl sleeve color indicates wire size range from 22 AWG to 16 AWG. Physical dimensions ensure fitment for M8 stud mounting applications. Maximum operating temperature up to 105 °C for demanding electrical environments.
Suitable for industrial, electronics assembly, and power connector applications. This insulated ring terminal is an essential component in industrial and electrical wiring projects, contributing to secure electrical connections and operational reliability.
Explore a wide range of electrical and electronic connectors and components in the Electronics Components category at EnvMart for all your industrial and manufacturing needs.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 105°C, making it suitable for demanding electrical applications.
This model is compatible with wire sizes ranging from 22 AWG to 16 AWG, which corresponds to 0.26 mm² to 1.65 mm².
The outer ring diameter is 11.91 mm, the inner ring diameter is 8.33 mm, the overall length is 27.69 mm, and the thickness is 0.79 mm.
The contact is made from high conductivity copper that is tin plated to optimize electrical conductivity and corrosion resistance.
This terminal features vinyl insulation rated 94V-0, providing high dielectric strength and protection against electrical shocks.
The serrated inner barrel design enhances mechanical and electrical connections by providing maximum tensile strength after crimping.
This insulated ring terminal is suitable for industrial, electronic component assembly, and power distribution applications.
The red color coding indicates that this terminal is designed for wire sizes ranging from 22 AWG to 16 AWG.
The terminal includes a funneled wire barrel entry that facilitates easy insertion of stripped wires, improving installation efficiency.
The terminal is designed for various industrial and electronic applications, but specific outdoor suitability is not mentioned in the specifications provided.
The country of origin for this insulated ring terminal is the United States.
This terminal belongs to the PLASTI-GRIP series, which is known for its closed barrel design and reliable electrical connections.
