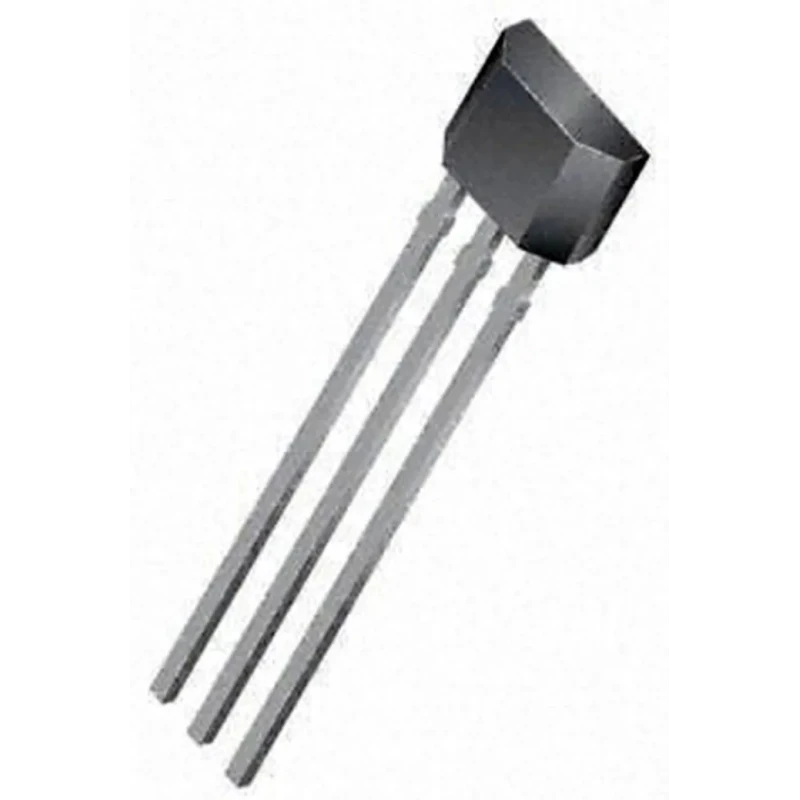

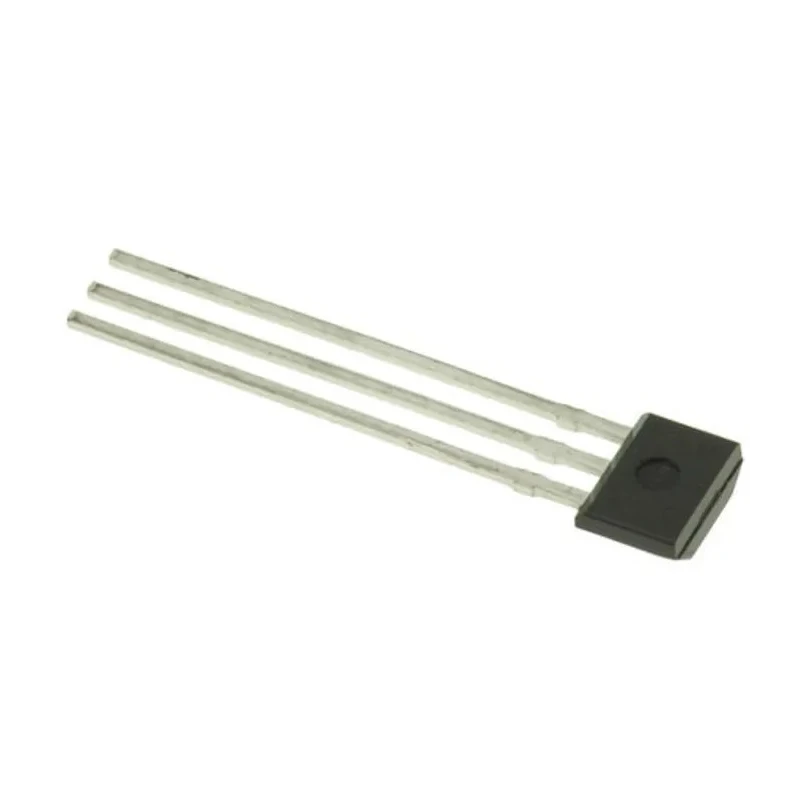

DiodesZetex Through Hole Micropower Omnipolar Hall-Effect Sensor Switch SIP 3-Pin Operating 2.5 V to 5.5 V AH180-PG-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 125μs |
| Height | 3.2mm |
| Length | 4.3mm |
| Model | AH180-PG-A |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | AH180 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 24μA |
| Magnetic Type | Omnipolar |
| AH180-PG-A DiodesZetex, Omnipolar Hall Effect Sensor Switch, 3-Pin SIP-3LBrand | DiodesZetex |
Key Features
- Features omnipolar magnetic sensitivity suitable for versatile sensing applications.
- Employs chopper stabilized technology for enhanced stability and accuracy.
- Operates within a temperature range of -40°C to 85°C ensuring durability.
- Compact dimensions with a length of 4.3 mm, width of 1.6 mm, and height of 3.2 mm.
- Low supply current of 24 μA enabling energy-efficient operation.
- Fast response time of 125 μs for quick detection.
- Complies with RoHS standards for environmental safety.
- Ideal for non-contact switching and magnetic field proximity sensing in various electronic devices.
Product Description
DiodesZetex AH180-PG-A is a micropower omnipolar Hall-Effect sensor switch designed for through-hole mounting in a 3-pin SIP package. It operates with a supply voltage from 2.5 V to 5.5 V, making it suitable for low voltage electronic applications.
This sensor employs chopper stabilized technology that provides stable and reliable performance by reducing offset voltage and noise. Its omnipolar magnetic sensitivity allows activation by either magnetic pole, enhancing flexibility in installation and use.
The AH180-PG-A functions effectively within a wide temperature range of -40°C to 85°C, allowing it to withstand varied environmental conditions encountered in industrial, automotive, and consumer electronics.
With compact dimensions of 4.3 mm in length, 1.6 mm in width, and 3.2 mm in height, this sensor fits into space-constrained environments. The low supply current of 24 μA helps conserve power in battery-operated devices.
Boasting a rapid response time of 125 μs, the sensor quickly detects magnetic field presence for timely switching applications. It conforms to RoHS environmental standards, ensuring compliance with regulations on hazardous substances.
This Hall-Effect sensor switch is widely used for non-contact switching and sensing magnetic field proximity in motion detection, position sensing, and speed detection systems. Its reliable switching characteristics make it suitable in industrial automation, HVAC systems, consumer electronics, and automotive sensor applications.
Features omnipolar magnetic sensitivity suitable for versatile sensing applications. Employs chopper stabilized technology for enhanced stability and accuracy. Operates within a temperature range of -40°C to 85°C ensuring durability.
Compact dimensions with a length of 4.3 mm, width of 1.6 mm, and height of 3.2 mm. Low supply current of 24 μA enabling energy-efficient operation. Fast response time of 125 μs for quick detection. Complies with RoHS standards for environmental safety.
Ideal for non-contact switching and magnetic field proximity sensing in various electronic devices. Browse the DiodesZetex Hall Effect Sensors catalog at EnvMart for a broad selection of sensor IC solutions that meet diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage ranging from 2.5 V to 5.5 V, making it suitable for low voltage electronic applications.
The response time of the AH180-PG-A is 125 μs, allowing for quick detection of magnetic fields.
It has compact dimensions of 4.3 mm in length, 1.6 mm in width, and 3.2 mm in height, suitable for space-constrained environments.
This model employs chopper stabilized technology, which enhances stability and accuracy by reducing offset voltage and noise.
The supply current for this sensor is 24 μA, enabling energy-efficient operation in battery-operated devices.
It operates effectively within a temperature range of -40°C to 85°C, allowing it to withstand various environmental conditions.
This model is designed for through-hole mounting in a 3-pin SIP package.
It features omnipolar magnetic sensitivity, allowing it to be activated by either magnetic pole, enhancing installation flexibility.
This sensor complies with RoHS standards, ensuring it meets regulations on hazardous substances.
It is ideal for non-contact switching and magnetic field proximity sensing in various electronic devices, including industrial and automotive applications.
The sensor features a 3-pin configuration, suitable for various electronic circuit designs.
This model is part of the AH180 series of Hall Effect sensors from DiodesZetex.
