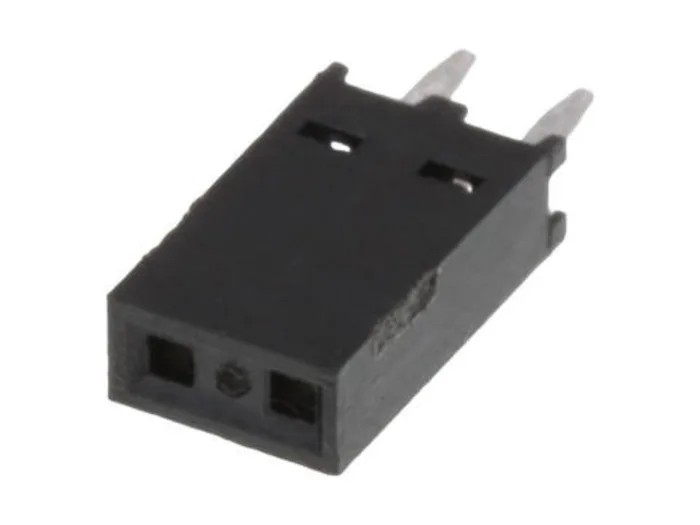

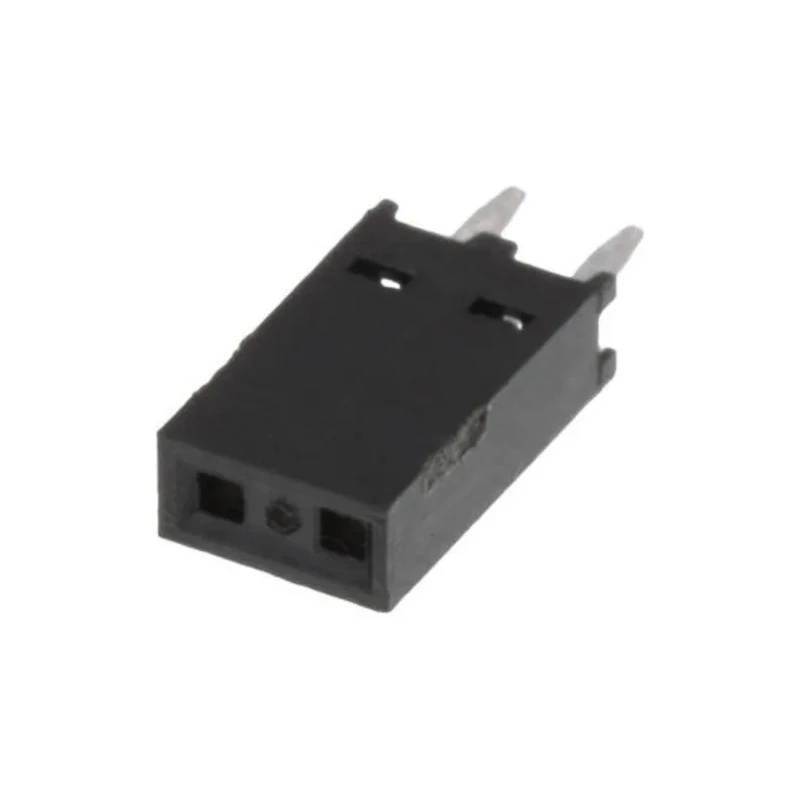

Molex 90147 Series Vertical Through Hole PCB Connector, 2-Contact, 1 Row, 2.54 mm Pitch, Solder Termination 901471102
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | 90147 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Compact vertical design optimizes PCB space usage.
- Constructed with durable polyester housing.
- Phosphor bronze contacts plated with tin for reliable conductivity.
- Rated for 3A current and 350V voltage applications.
- Through hole mount with solder termination ensures strong electrical connection.
- Supports operating temperatures from -55°C to +105°C.
- Designed for up to 30 mating cycles for durability.
- Meets CSA LR19980 and UL E29179 standards.
Product Description
Molex 901471102 Vertical Through Hole PCB Connector is a precision engineered component in the 90147 series, featuring 2 contacts arranged in a single row with a standard 2.54 mm pitch. This connector offers a vertical orientation suitable for compact printed circuit board assemblies, optimizing space and providing easy access for soldering operations.
The housing is made of polyester, ensuring insulation and mechanical strength. Contacts are composed of phosphor bronze and finished with tin plating, delivering excellent electrical conductivity and resistance to wear during repeated mating cycles. The connector supports currents up to 3A and is rated for voltages up to 350V, making it well-suited for low to medium power signal connections.
Designed for through-hole PCB mounting with solder terminations, this connector ensures robust mechanical and electrical stability. It maintains functionality in a broad temperature range from -55°C to +105°C, making it reliable under harsh industrial and automation environments. The connector complies with certifications such as CSA LR19980 and UL E29179, adding quality assurance.
This connector is ideal for applications requiring secure, vertical board-to-board connections in automation systems, signal processing equipment, and various electronic devices. Its compact footprint and compliance with international standards permit versatile use in manufacturing, commercial electronics, and industrial control setups.
Compact vertical design optimizes PCB space usage. Durable polyester housing for insulation and strength. Phosphor bronze contacts with tin plating ensure conductivity and longevity. Rated for 3A current and 350V voltage.
Through hole mount with solder termination for secure connections. Wide operating temperature range from -55°C to +105°C. Supports 30 mating cycles enhancing reliability. Complies with CSA LR19980 and UL E29179 standards.
Suitable for automation and electronic device applications. Manufactured in Indonesia and RoHS compliant. Explore our Electronics Components category to find more high-quality PCB Connectors from Molex and other leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A, making it suitable for low to medium power signal connections.
It is rated for a maximum voltage of 350V, allowing it to be used in various electrical applications.
The connector features a pitch size of 2.54 mm, which is a standard measurement for PCB connectors.
The housing is made from durable polyester, while the contacts are composed of phosphor bronze with tin plating for reliable conductivity.
It supports an operating temperature range from -55°C to +105°C, making it suitable for various environmental conditions.
This connector has 2 contacts arranged in a single row, designed for board-to-board connections.
It features solder termination, ensuring a strong electrical connection when mounted on a PCB.
It complies with CSA LR19980 and UL E29179 standards, ensuring quality and safety in its applications.
The connector has a vertical orientation, which optimizes space usage on the printed circuit board.
It is designed to support up to 30 mating cycles, enhancing its reliability during use.
This model requires through-hole mounting, making it suitable for secure installations on PCBs.
It is manufactured in Indonesia, ensuring compliance with international manufacturing standards.
