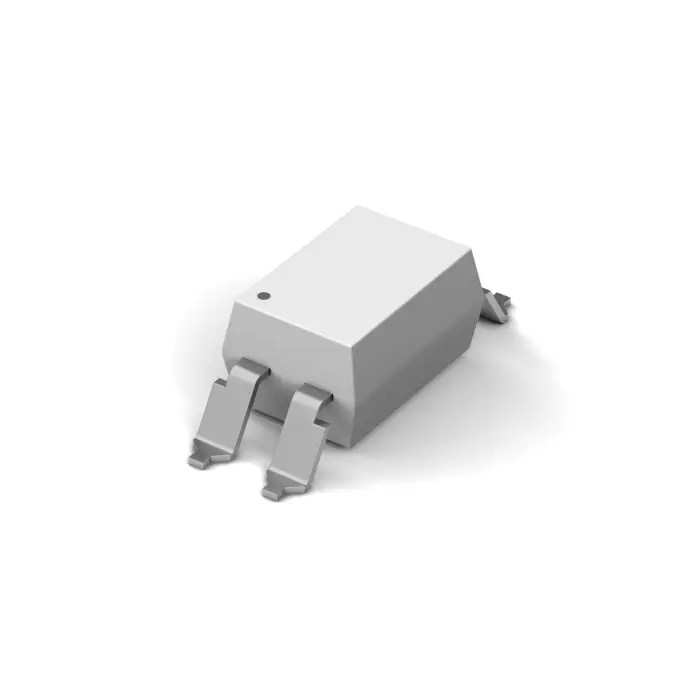

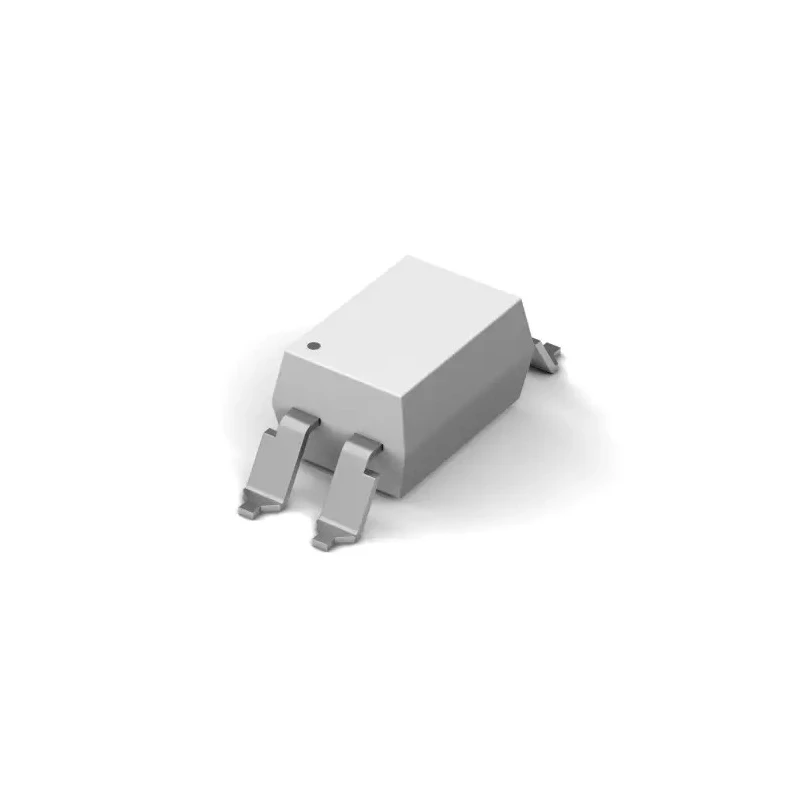

Wurth Elektronik DC Input 4-Channel Surface Mount Optocoupler 4-Pin DIP 140816144300

Wurth Elektronik 140816144300 DC Input 4-Channel Surface Mount Optocoupler is a reliable and compact optoelectronic component designed to provide electrical isolation and signal transmission in electronic circuits. Its surface mount DIP package with dimensions of 6.5 mm x 4.58 mm x 3.5 mm makes it suitable for modern PCB layouts in industrial and electronic applications.

This optocoupler features four input channels that operate with DC input currents, offering a maximum forward voltage rating of 1.4V. It supports fast switching with typical rise and fall times of 3 and 4 microseconds respectively, making it practical for high-speed signal isolation.

Rated for operation in a wide temperature range from -55°C to 110°C and holding an isolation voltage of 5000 Vrms, it provides excellent electrical isolation to protect sensitive components and maintain signal integrity.

The device supports a maximum input current of 60 mA and has a current transfer ratio between 200% and 400%, allowing efficient transfer of input signals to output phototransistors. This optocoupler conforms to numerous international standards including IEC 61249-2-21, REACH, RoHS, VDE, CoC, and JEDEC JS709B, assuring adherence to stringent environmental and quality requirements.

Typical applications span industrial automation, test and measurement equipment, data communication systems, power supplies, and various sensor controls where isolation and signal fidelity are paramount.

Its surface mount technology and compact form factor assist in effective PCB design while maintaining durability and performance. This model, part of the WL-OCPT series from Wurth Elektronik, provides dependable performance with consistent current transfer ratios across its operation range.

Features four input channels with DC input current type for diverse applications. Supports a maximum forward voltage of 1.4V ensuring efficient operation. Has a typical rise time of 3 microseconds and fall time of 4 microseconds for fast switching.

Designed to operate within a wide temperature range from -55°C to 110°C. Offers high isolation voltage of 5000 Vrms for electrical safety in circuits. Available in a surface mount DIP package with four pins for easy PCB integration.

Supports a maximum input current of 60mA with stable current transfer ratios from 200% to 400%. Manufactured to adhere to industry standards including IEC 61249-2-21, REACH, RoHS, VDE, CoC, and JEDEC JS709B. Ideal for controlling loads in test equipment, data communications, power supplies, and sensor modules.
