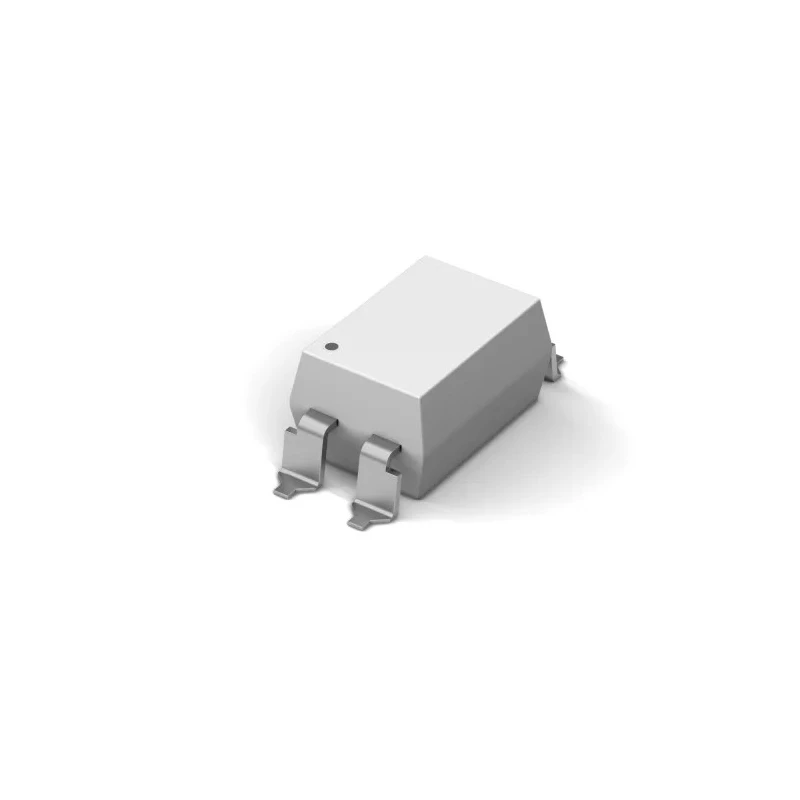

Wurth Elektronik Surface Mount DC Input 4-Channel Optocoupler with 4-Pin DIP Package 140816143000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tube |
| Mount Type | Surface |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 4 |
| Standards/Approvals | VDE, RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, CoC |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Designed with 4 channels for multiple signal isolation.
- Maximum forward voltage of 1.4 V ensures efficient signal transmission.
- Typical rise time is 3 microseconds for fast switching performance.
- Supports a maximum input current of 60 mA for versatile control applications.
- High isolation voltage of 5000 Vrms enhances safety and noise immunity.
- Operating temperature range spans from -55°C to 110°C for robust performance under harsh conditions.
- Stable current transfer ratio from 50% to 600% ensures consistent operation.
- Packaged in tube format for convenient integration and handling.
Product Description
Wurth Elektronik 140816143000 is a high-quality DC input optocoupler designed with 4 channels and a 4-pin DIP surface mount package. It offers reliable electrical isolation by using phototransistor technology, making it essential for controlling loads in industrial, laboratory, and electronic communication systems.
The device supports a maximum forward voltage of 1.4 V and a maximum input current rating of 60 mA, providing efficient switching and control capabilities. Its typical rise and fall times of 3 μs and 4 μs respectively enable fast response in dynamic applications.
Operating safely over a wide temperature range from -55°C to 110°C, this optocoupler guarantees durability and stability in harsh environments. The high isolation voltage rating of 5000 Vrms ensures excellent protection between input and output circuits, critical for sensitive electronic designs.
This product is packaged in tubes and features compact dimensions (6.5 mm x 4.58 mm x 3.5 mm) ideal for space-constrained electronic assemblies. It complies with international standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, ensuring quality and environmental responsibility.
Typical applications include test and measurement equipments, data communications, power supply sensors, and various types of load control. Designed with 4 channels for multiple signal isolation. Maximum forward voltage of 1.4 V ensures efficient signal transmission.
Typical rise time is 3 microseconds for fast switching performance. Supports a maximum input current of 60 mA for versatile control applications. High isolation voltage of 5000 Vrms enhances safety and noise immunity. Operating temperature range spans from -55°C to 110°C for robust performance under harsh conditions.
Stable current transfer ratio from 50% to 600% ensures consistent operation. Packaged in tube format for convenient integration and handling. Compact dimensions of 6.5 mm x 4.58 mm x 3.5 mm allow space-saving designs. Ideal for test and measurement equipment, data communications, and power supply sensors.
Explore further products in the Optocoupler category on EnvMart for a wide selection of electronic components suited for diverse industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current supported by this model is 60 mA, allowing for versatile control applications.
It operates within a temperature range of -55°C to 110°C, making it suitable for harsh environments.
The optocoupler has a high isolation voltage rating of 5000 Vrms, enhancing safety and noise immunity.
This unit has a typical rise time of 3 microseconds and a fall time of 4 microseconds, enabling fast switching performance.
It is designed with 4 channels for multiple signal isolation, making it suitable for various applications.
The maximum forward voltage is 1.4 V, which ensures efficient signal transmission.
This model is packaged in a tube format, facilitating convenient integration and handling.
The dimensions of this unit are 6.5 mm x 4.58 mm x 3.5 mm, making it compact for space-constrained designs.
It complies with several international standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21.
The stable current transfer ratio ranges from 50% to 600%, ensuring consistent operation.
This model supports DC input current, making it suitable for various electronic applications.
It is suitable for applications such as test and measurement equipment, data communications, and power supply sensors.
