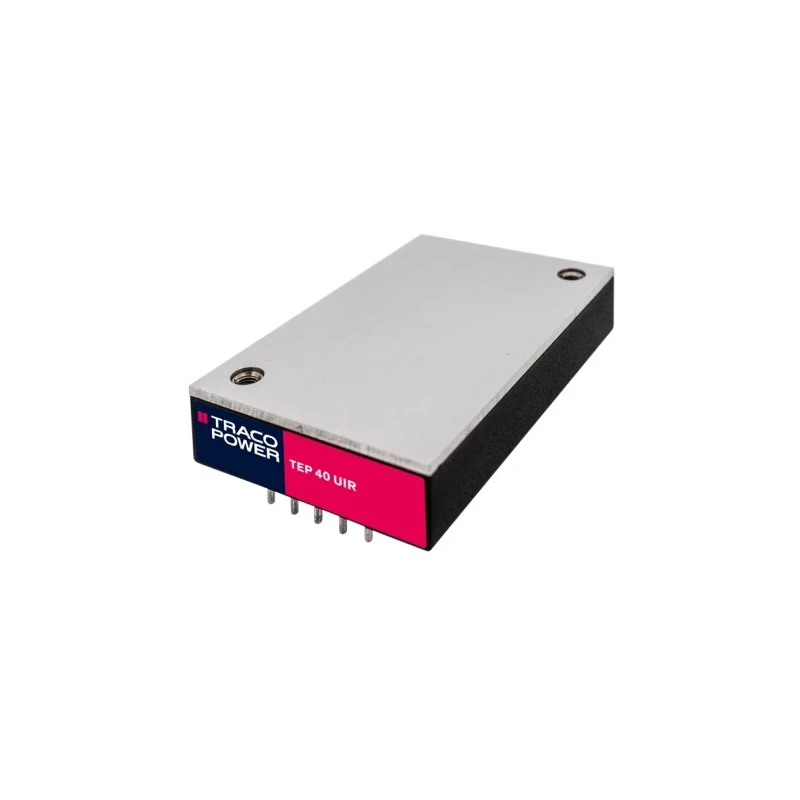

TRACOPOWER DC/DC Converter 24V dc 1.67A 14-160V dc Input 40W PCB Quarter Brick TEP 40-7215UIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 57.9mm |
| Model | TEP 40-7215UIR |
| Depth | 12.7mm |
| Gross Weight | 64g |
| Width | 36.8mm |
| Mount Type | PCB |
| Series | TEP 40UIR |
| Maximum Operating Temperature | 85°C |
| Package Type | Quarter Brick |
| Minimum Operating Temperature | -40°C |
| MTBF | 830000h |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 14V |
| Number of Pins | 10 |
| 12 | 1 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 1.67A |
| Output Voltage Adjustment Range | 19.2/26.4 V dc |
| Isolation Voltage | 3kV |
| Better World Claim | Concentrated or Compact Solution |
| Output Current 2 | 1670mA |
| Input Ratio | 12:1 |
| Input Ratio12 | 1 |
Key Features
- Quarter brick package type designed for PCB mount applications.
- Efficiency of 90% ensures minimal energy loss during operation.
- Operating temperature range from -40°C to +85°C supports harsh environments.
- Adjustable output voltage between 19.2V and 26.4V DC for flexible use.
- Isolation voltage rated at 3kV for enhanced safety in sensitive electronics.
- Compact size with dimensions 57.9mm length, 36.8mm width, and 12.7mm depth.
- Robust MTBF value of 830,000 hours indicating high reliability.
- Suitable for railway electronics, automation controls, and communication equipment.
Product Description
TRACOPOWER TEP 40-7215UIR DC/DC Converter is a robust power solution featuring a 24V DC output at 1.67A current capacity, supporting a wide input voltage range from 14V up to 160V DC. This quarter brick converter is optimized for PCB mounting, facilitating easy integration into varied electronic assemblies.
Its 40W maximum output power and high efficiency rating of 90% enable energy-efficient operation suitable for demanding industrial, railway, and communication electronics applications. The device operates reliably across a broad temperature range of -40°C to 85°C, making it well-suited for challenging environmental conditions.
The output voltage is adjustable from 19.2V to 26.4V DC, providing flexibility for custom voltage requirements while maintaining excellent ripple and noise characteristics at 200mV peak-to-peak. Isolation voltage up to 3kV ensures electrical safety and noise immunity in sensitive applications.
Compact dimensions (57.9mm x 36.8mm x 12.7mm) and a low weight of only 64g allow for installation in tight spaces without compromising performance. With a Mean Time Between Failures (MTBF) of 830,000 hours, this converter offers impressive reliability for continuous operation scenarios.
Applications include railway power management systems, automation controls, and communications equipment where stable, isolated DC power is required. The product meets EN 50155 standards, confirming suitability for railroad industry deployment.
TRACOPOWER's TEP 40UIR Series is recognized as a Better World product due to its concentrated and compact design, supporting sustainability goals by minimizing energy waste. Quarter brick package for PCB mounting. Wide input voltage range from 14 to 160 V DC.
High efficiency of 90%. Adjustable output voltage from 19.2 V to 26.4 V DC. Isolation voltage of 3 kV. Operating temperature range from -40°C to +85°C. MTBF of 830,000 hours ensures high reliability. Lightweight and compact dimensions facilitate integration.
Conforms with EN 50155 for railway applications. Ideal for industrial, railway, and communication electronics. Explore TRACOPOWER products and DC/DC Converters further in the EnvMart catalog for industrial and electronic power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40W.
It supports a wide input voltage range from 14V to 160V DC.
The output voltage can be adjusted between 19.2V and 26.4V DC.
The dimensions are 57.9mm in length, 36.8mm in width, and 12.7mm in depth.
This model has an efficiency rating of 90%.
The isolation voltage is rated at 3kV, providing enhanced safety.
It operates reliably within a temperature range of -40°C to +85°C.
The MTBF is 830,000 hours, indicating high reliability.
The gross weight of this model is 64g.
It is designed for PCB mounting, making it suitable for electronic assemblies.
It is suitable for railway power management systems, automation controls, and communications equipment.
It conforms to EN 50155 standards, confirming its suitability for railway applications.
