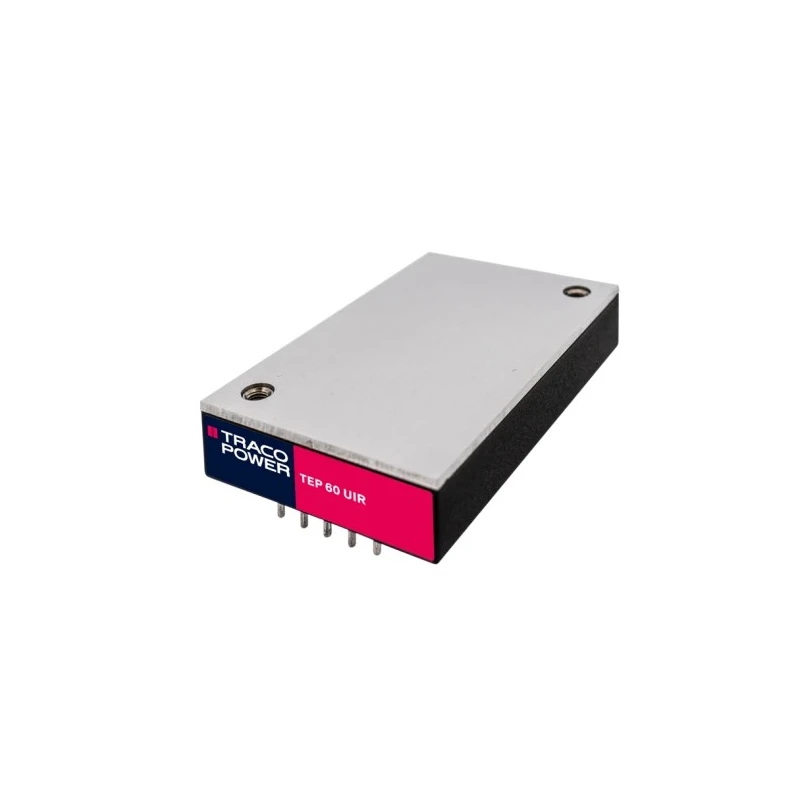

TRACOPOWER DC/DC Converter 24V DC 2.5 A 9-75V DC Input 60W PCB Quarter Brick TEP 60-3615UIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 57.9mm |
| Model | TEP 60-3615UIR |
| Depth | 12.7mm |
| Gross Weight | 64g |
| Width | 36.8mm |
| Mount Type | PCB |
| Series | TEP 60UIR |
| Maximum Operating Temperature | 75°C |
| Package Type | Quarter Brick |
| Minimum Operating Temperature | -40°C |
| MTBF | 738000h |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 10 |
| 12 | 1 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 2.5A |
| Isolation Voltage | 3kV |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 12:1 |
| Input Ratio12 | 1 |
Key Features
- Wide input voltage range from 9V to 75V DC for versatile applications.
- High efficiency of 90% reduces energy loss and heat dissipation.
- Isolation voltage of 3kV ensures operational safety in electrical systems.
- Operates reliably between -40°C and 75°C for harsh environment suitability.
- Compact quarter brick package with dimensions 57.9x36.8x12.7 mm for PCB mounting.
- Single output with adjustable voltage range allowing system flexibility.
- Low ripple and noise of 200mV peak-to-peak ensures stable output quality.
- High mean time between failures (MTBF) of 738,000 hours for dependable performance.
Product Description
TRACOPOWER TEP 60-3615UIR DC/DC Converter is a highly efficient power supply solution designed for demanding industrial and railway system applications. With a 9 to 75V DC input voltage range and an output voltage of 24V DC at 2.5 A current, this device delivers a reliable 60W power in a compact and robust quarter brick package tailored for PCB mounting.
The converter features a high efficiency rating of 90% that minimizes energy consumption and reduces heat generation. Its 3kV isolation voltage offers high safety margins critical for industrial and railway electronics. It performs consistently within a wide temperature range from -40°C up to 75°C, ensuring durability in extreme environmental conditions.
Designed for applications that require stable and adjustable output voltages, it allows a voltage adjustment range from -20% to +10% of the nominal value. The low ripple and noise characteristics (200mV peak-to-peak) ensure minimal electrical interference with delicate onboard electronics.
This DC/DC converter is engineered to operate without the need for extra high-voltage capacitors, simplifying integration and reducing BOM complexity. Its mean time between failures (MTBF) of 738,000 hours underlines its reliability for critical use cases.
Commonly employed in railway communication systems, onboard power supplies, and other industrial electronic equipment, this converter supports efficient and safe power management in demanding infrastructures.
Wide input voltage range from 9V to 75V DC for flexible power solutions. High efficiency of 90% reduces operational energy waste. 3kV isolation voltage for enhanced electrical safety. Operating temperature range from -40°C to 75°C fits harsh environments.
Compact quarter brick PCB package (57.9 mm length, 36.8 mm width, 12.7 mm depth). Adjustable output voltage with low ripple for stable electronics operation. Mean time between failures (MTBF) of 738,000 hours ensures reliability.
No extra capacitor requirement simplifies design and maintenance. Ideal for railway and industrial electronic power supply applications.
This DC/DC converter from TRACOPOWER is an excellent choice for engineers seeking a reliable, efficient, and compact power solution for electronic and railway systems. Explore the full range of DC/DC Converters and power supplies available at EnvMart to find products suited to your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 75V DC.
This DC/DC converter has an efficiency rating of 90%.
The maximum output power of this converter is 60W.
The dimensions of the quarter brick package are 57.9mm in length, 36.8mm in width, and 12.7mm in depth.
It operates reliably within a temperature range of -40°C to 75°C.
The isolation voltage for this DC/DC converter is 3kV.
This model has a ripple and noise specification of 200mV peak-to-peak.
The output voltage is 24V DC with a current of 2.5A.
This unit has a single output.
The mean time between failures (MTBF) is 738,000 hours.
It is designed for PCB mounting.
This model operates without the need for extra high-voltage capacitors, simplifying integration.
