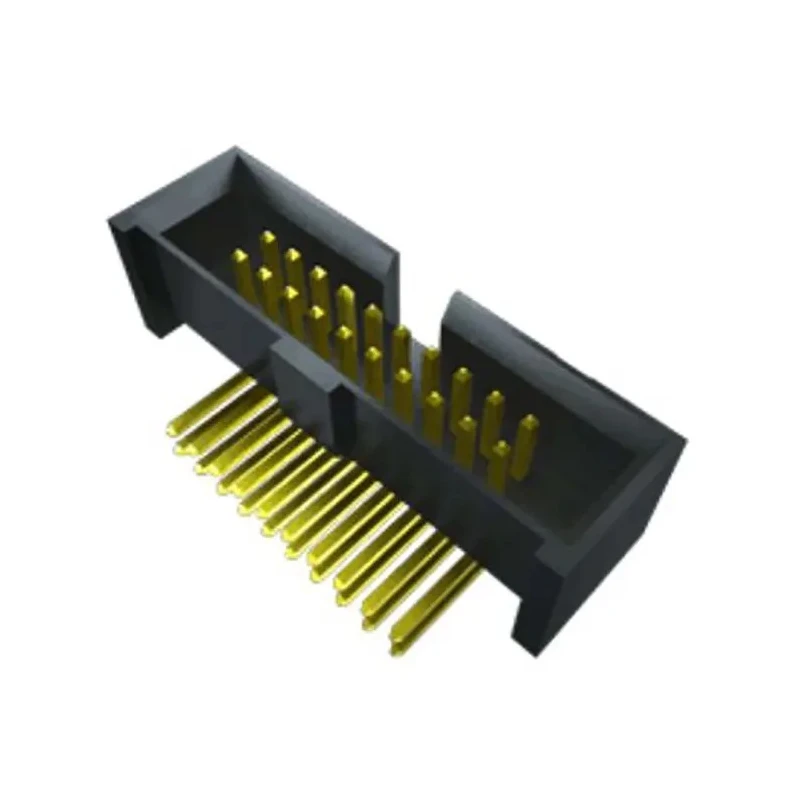

Samtec SHF Series Straight Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded SHF-125-01-L-D-SM-LC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | SHF-125-01-L-D-SM-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Silver, Tin |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Wire |
Key Features
- The header features 2 rows of shrouded, straight orientation contacts for secure board-to-wire connections.
- It utilizes a black Liquid Crystal Polymer housing for durability and high temperature resistance.
- Contacts are made of phosphor bronze with silver and tin plating for reliable electrical performance.
- Suitable for operating temperatures ranging from -55°C up to 125°C.
- Termination type is solder, ensuring robust mounting to PCBs.
- Connector system is board-to-wire, compatible with FFSD flat ribbon and FFTP twisted pair cable assemblies.
- Ideal for electronic, industrial, and power connector applications requiring high precision and reliability.
- SHF series offers surface mount technology (SMT) for efficient PCB assembly processes.
Product Description
Samtec SHF-125-01-L-D-SM-LC is a Straight Surface PCB Header featuring 50 male contacts arranged in 2 rows with a 1.27 mm pitch. The header is shrouded for added protection and uses a durable black Liquid Crystal Polymer housing material.
This PCB header is designed for surface mount applications, providing a reliable board-to-wire connector solution. The contact material is phosphor bronze plated with silver and tin to ensure excellent conductivity and corrosion resistance.
It supports a wide operating temperature range from -55°C to 125°C, making it suitable for demanding industrial, electronic manufacturing, and power connector uses. The termination method is solder, ensuring strong mounting and electrical connection to the PCB.
The header is compatible with FFSD flat ribbon and FFTP twisted pair cable assemblies, enhancing its versatility in various wiring and cable setups.
Applications include electronic components, power connectors, and industrial equipment requiring robust, high-density PCB mounting connectors. The shrouded design also helps protect contacts from mechanical damage during handling or installation.
The header features 2 rows of shrouded, straight orientation contacts for secure board-to-wire connections. Black Liquid Crystal Polymer housing provides thermal and mechanical stability. Contact material of phosphor bronze with silver and tin plating offers reliable electrical performance.
Supports solder termination type for surface mount assembly. Wide operating temperature range from -55°C up to 125°C.
This product is a new Samtec PCB header model SHF-125-01-L-D-SM-LC, supporting modern surface mount technology requirements. Its design facilitates efficient assembly and reliable operation in electronics manufacturing and industrial automation applications.
Explore more high-quality PCB Headers and electronic components from reputed brands in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header have a pitch of 1.27 mm.
This model can operate at a maximum temperature of 125°C.
It features 50 male contacts arranged in 2 rows.
The housing is made of black Liquid Crystal Polymer, while the contacts are made of phosphor bronze with silver and tin plating.
This PCB header uses solder termination for robust mounting to PCBs.
Yes, this model is designed for surface mount applications, utilizing surface mount technology (SMT).
The minimum operating temperature for this header is -55°C.
It supports a board-to-wire connector system, compatible with FFSD flat ribbon and FFTP twisted pair cable assemblies.
The contacts in this header are arranged in a straight orientation.
The shrouded design helps protect the contacts from mechanical damage during handling or installation.
This product is manufactured in India.
This PCB header belongs to the SHF series.
