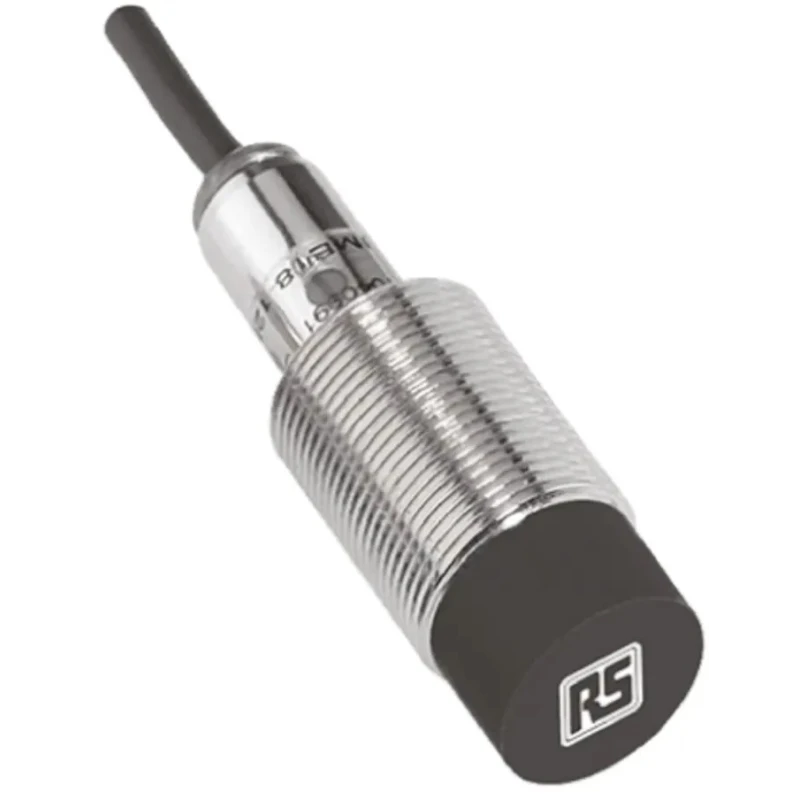

RS PRO Threaded Barrel Inductive Proximity Sensor M18 x 1, NPN Output, 30 V DC, 8 mm Detection Distance Model 701-8257
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | RS PRO |
| Length | 48mm |
| Model | 701-8257 |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | Nickel Plated Brass |
| Output type | NPN |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | cULus Listed, EN 60947-5-2, RoHS Compliant, UL |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 8mm |
Key Features
- This sensor has a 48 mm threaded barrel length and an M18 x 1 thread size for secure non-flush mounting.
- The nickel-plated brass housing ensures durability with an IP67 rating for dust and water resistance.
- It operates at a maximum supply voltage of 30 V DC and can drive switching currents up to 200 mA.
- Designed for industrial environments, it tolerates operating temperatures from -25 to 75°C.

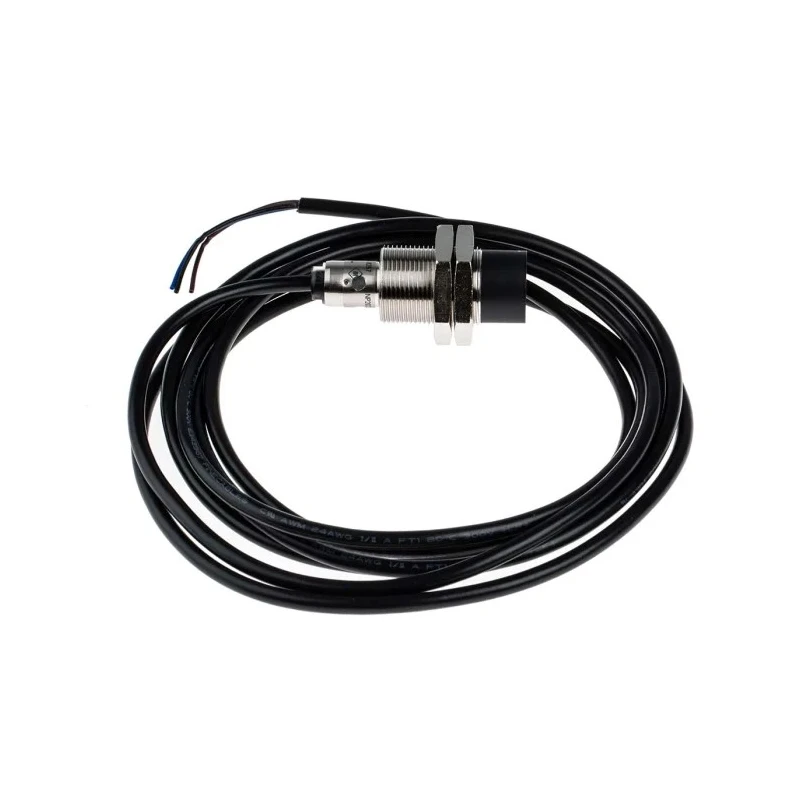

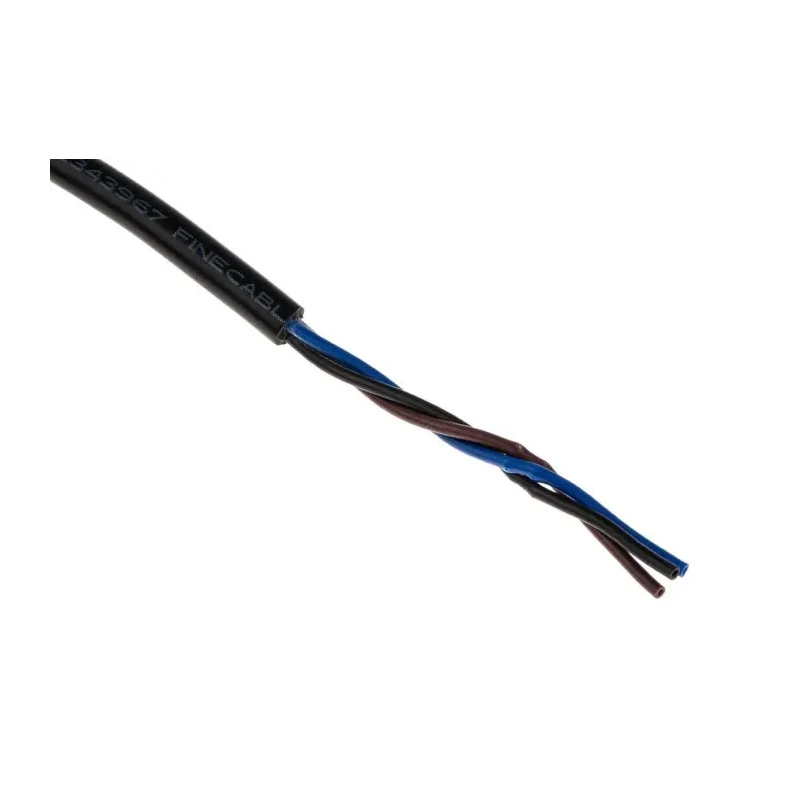

- It features cable terminals with a 2 m PVC lead for easy wiring installation.
- The sensor supports switching frequencies up to 1 kHz for fast object counting and detection.
- It is unshielded and meets standards including EN 60947-5-2, cULus Listed, and RoHS compliance.
Product Description
RS PRO 701-8257 Threaded Barrel Inductive Proximity Sensor, M18 x 1, NPN output, 30 V DC power rating, and 8 mm maximum detection distance is engineered for reliable presence detection in industrial automation and control applications.
This inductive proximity sensor features a rugged nickel-plated brass threaded barrel housing with 48 mm length and 18 mm width, enabling non-flush mounting while providing IP67-rated protection from dust ingress and temporary water immersion.
Operating from 10 to 30 V DC, it supports switching currents up to 200 mA and switching frequencies reaching 1 kHz, making it suitable for high-speed position sensing, metal part detection on CNC machines, conveyor system feedback, packaging equipment object counting, and robotic presence verification.
The sensor withstands ambient temperatures ranging from -25 to 75 °C, ensuring stable operation across varied industrial environments. The unshielded design offers accurate sensing within an 8 mm proximity range. Cable terminal type with a 2-meter PVC lead simplifies integration in automation setups.
Compliance with cULus, EN 60947-5-2 standards, and RoHS directives certifies its quality and safety. Originating from Hungary, this sensor combines robust construction with precise detection for manufacturing, machinery, automated assembly lines, and other industrial uses.
48 mm M18 x 1 threaded barrel housing made of nickel-plated brass. IP67 rated protection for dust tight and water immersion resistance. 30 V DC maximum supply voltage with 200 mA switching current capability. Unshielded inductive proximity sensing type with 8 mm detection distance.
Operating temperature range from -25 °C to 75 °C for versatile applications. Switching frequency up to 1 kHz supports high-speed counting and detection. Cable terminal wiring with a 2-meter PVC lead enhances installation flexibility.
Certified to EN 60947-5-2, cULus Listed, and RoHS compliant for reliability.
This RS PRO Inductive Proximity Sensor is ideal for industrial automation, manufacturing lines, CNC machinery, conveyor systems, packaging equipment, and robotic tooling presence checks. Explore the extensive range of RS PRO sensors at EnvMart for your control and sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 8 mm.
It operates within a supply voltage range of 10 to 30 V DC.
This sensor can drive switching currents up to 200 mA.
It features an NPN output type.
The threaded barrel housing has a length of 48 mm and a width of 18 mm.
It can operate in temperatures ranging from -25 °C to 75 °C.
This model has an IP67 rating, making it dust-tight and resistant to temporary water immersion.
It supports switching frequencies up to 1 kHz.
It is designed for non-flush mounting.
The housing is made of nickel-plated brass.
It complies with cULus, EN 60947-5-2 standards, and is RoHS compliant.
It features a cable terminal with a 2-meter PVC lead for easy installation.
