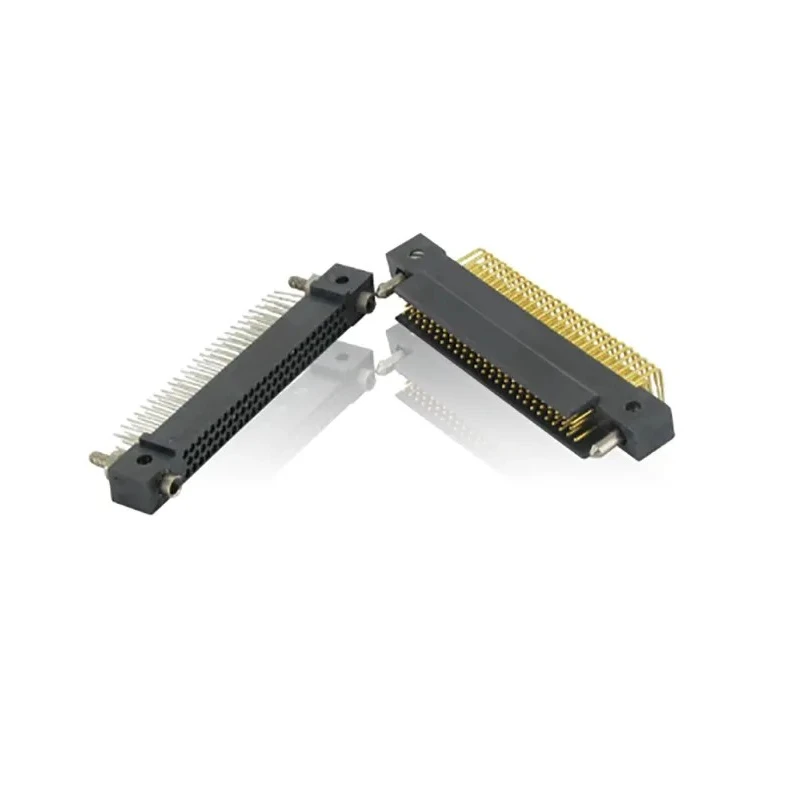

Amphenol Socapex HDAS Series Straight PCB Socket 253-Contact 4 Row 1.905 mm Pitch Solder HDASE253YD-000LF

Amphenol Socapex HDASE253YD-000LF is a high-density HDAS series straight PCB socket featuring 253 contacts arranged in 4 rows with 1.905 mm pitch. This PCB socket is designed for board-to-board connection with a reliable solder termination type, ensuring secure and efficient electrical interconnections in electronic assemblies.

The housing is made of glass filled thermoplastic liquid crystal polymer, providing excellent mechanical strength, high temperature resistance, and stability under harsh industrial conditions. The contacts are crafted from copper alloy and plated with gold to guarantee superior conductivity and long-lasting corrosion resistance.

Operating voltage is rated up to 750V and current up to 4.5A, making it suitable for demanding use in electronic, industrial, and manufacturing environments. The socket supports a temperature range from -65°C minimum to 125°C maximum, enabling reliable operation even in extreme temperature conditions.

This connector features a male/female contact gender design and straight orientation to facilitate easy PCB mounting and integration into complex electronic systems. It is ideal for applications requiring high contact density and robust connection reliability.

Manufactured in India, the Amphenol Socapex HDAS series socket addresses harsh environment challenges with its press-fit technology option (though this model is solder termination) and cost-effective assembly solutions without compromising performance.

High density with 253 contacts in a robust straight PCB socket. 4-row configuration with 1.905 mm pitch for precise PCB interfacing. Rated current of 4.5 amperes suitable for demanding applications. Constructed with glass filled thermoplastic liquid crystal polymer housing for durability.

Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance. Operates between -65°C to 125°C, suitable for harsh environments. Supports a voltage rating of 750 volts for industrial and electronic use.

Designed for solder termination on PCB mounts with board-to-board connector system. Male/female contact gender provides versatile connection options. Manufactured in India, ensuring compliance with quality standards.

This Amphenol Socapex HDAS Series Straight PCB Socket is engineered to meet industrial, electronic component manufacturing, and harsh environment needs, facilitating reliable and high-density PCB connections. Browse EnvMart’s extensive catalog for compatible PCB Sockets and connectors to suit your application needs.
