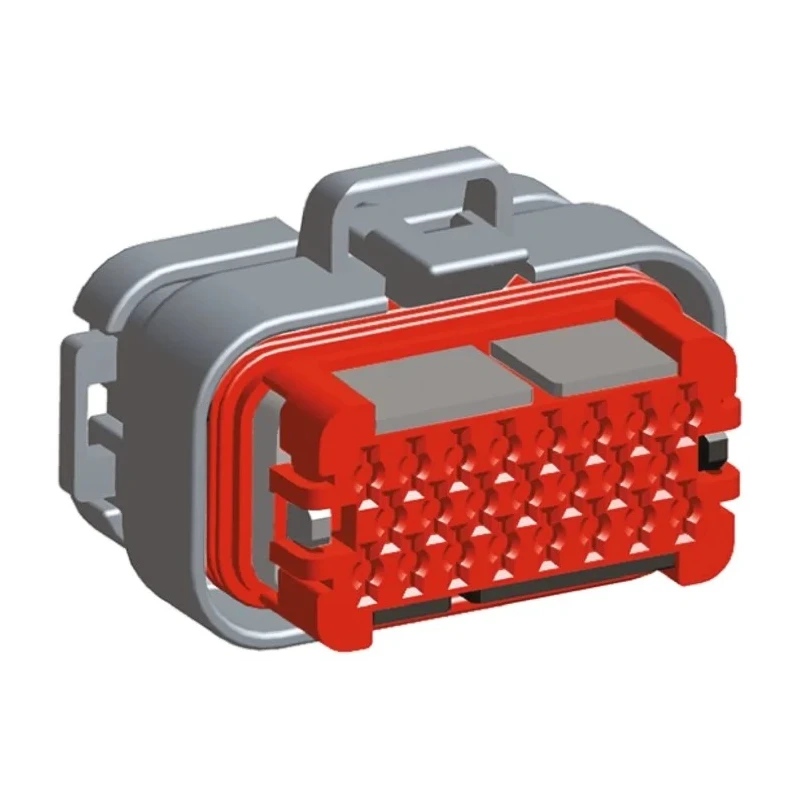

TE Connectivity Ampseal Male Automotive Connector 4 mm Pitch 23 Way 3 Row Straight 770680-4

TE Connectivity 770680-4 Ampseal Male Automotive Connector is a highly reliable and rugged connector designed for industrial, automotive, agricultural, and heavy-duty applications. It features a 4 mm pitch with 23 contact points arranged in 3 rows, housed within a sturdy nylon body to withstand harsh environmental conditions.

The AMPSEAL series includes a two-piece contact hold with secondary locking, ensuring the contacts remain secure and preventing them from being pulled out or damaged in tough use cases. It is rated IP67, offering protection against dust ingress and water immersion up to a depth of 1 meter for up to 30 minutes, making it highly suitable for off-road and industrial environments where moisture and contaminants are common.

Operating temperature ranges from -40°C to +125°C, allowing for versatile use across extreme temperatures in automotive and industrial sectors. The connector mounting type is cable-based, designed to interface with automotive plug connectors in a straight orientation, ensuring ease of assembly and reliable performance.

This AMPSEAL connector features a durable nylon housing for high reliability and protection. It supports wire sizes from 0.5 to 1.25 mm², ideal for off-road automotive and industrial applications. The connector includes a two-piece contact hold with secondary locking to prevent contact damage.

It is rated for operating temperatures from -40°C to +125°C for extreme environments. The IP67 rating ensures dust-tight sealing and water immersion resistance up to 1 meter depth. Measures 47 mm in length and 34.6 mm wide, designed for cable mount and automotive plug connectors.

The straight orientation facilitates easy mating and installation in automotive and heavy-duty industrial use.

This connector is extensively used in off-road vehicles, agricultural machinery, and heavy industrial equipment requiring robust and reliable electrical connections resistant to environmental stress. The IP67 rating and rugged design make it ideal for water and dust prone conditions.
