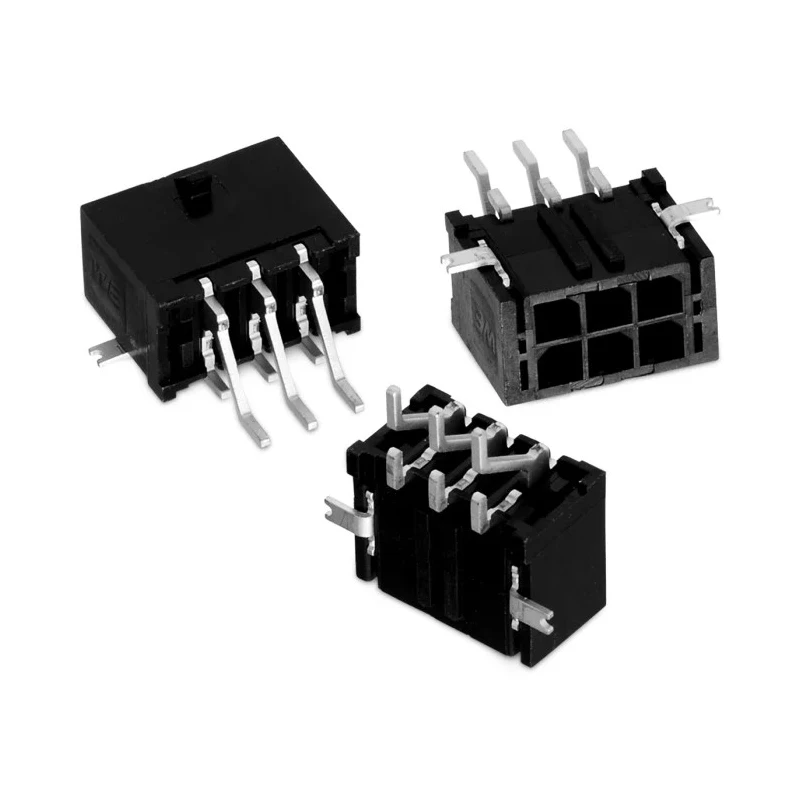

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header, 2 Contacts, 3 mm Pitch, 2 Row, Shrouded MPC3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The header is constructed with a Liquid Crystal Polymer housing ensuring durability.
- Capable of handling currents up to 5A at 250V voltage rating.
- Tin-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Designed with right angle orientation and through hole mount for PCB integration.
- Features a black UL94-V0 PA9T insulator for high-temperature operation up to 105°C.
- Contact gender is male with a solder termination type for secure attachment.
- Shrouded connector system enhances protection and guides mating connectors.
- Suitable for electronic, power, and connector applications in industrial and commercial PCB manufacturing.
Product Description
Wurth Elektronik MPC3 Series Right Angle Through Hole PCB Header model MPC3 offers a high-quality dual row, 2-contact male header connector with a 3.0 mm pitch designed for wire-to-board applications. This shrouded header uses a robust Liquid Crystal Polymer housing and tin-plated copper alloy contacts, ensuring reliable electrical performance under demanding operating conditions.
The PCB header supports an electrical current rating of 5A and voltage up to 250V, making it suitable for a wide range of electronic and industrial uses. The housing features a UL94-V0 PA9T black insulator allowing operation from -40°C to a maximum of 105°C, accommodating various temperature environments in manufacturing or equipment assembly.
Its right angle orientation and through hole mount type ensure sturdy mechanical fixing on printed circuit boards, facilitating robust and easy integration. The male contact gender and solder termination type allow secure and consistent mating with compatible female connectors from the WR-MPC3 series.
The header connector has 2 rows with a 3 mm row pitch and 2 contacts, ensuring compact design without compromising connectivity. Its shrouded design prevents accidental contact and improves mechanical protection during handling and use.
The copper alloy contacts with tin plating enhance corrosion resistance and ensure long-lasting electrical conductivity. Liquid Crystal Polymer housing provides excellent structural integrity and resistance to high temperatures.
This component is ideal for electronic assemblies, power connectors, and PCB header applications in various industries including industrial automation, consumer electronics, and power distribution systems.
Designed and manufactured in Taiwan, Province Of China, guaranteeing adherence to quality standards.
Explore EnvMart's extensive catalog of PCB connectors and related electronic components for compatible parts and accessories. Wurth Elektronik products offer reliable performance and versatility for professional electronics manufacturing and assembly.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A.
The voltage rating for this header is 250V.
It features a Liquid Crystal Polymer housing and tin-plated copper alloy contacts, providing excellent conductivity and corrosion resistance.
The operating temperature range is from -40°C to a maximum of 105°C.
This model has 2 contacts.
It uses a solder termination type for secure attachment.
The pitch size of the contacts is 3 mm.
It supports a through hole mount type for PCB integration.
This header is designed with a right angle orientation.
The contact gender is male.
It utilizes a wire-to-board connector system.
This header is manufactured in Taiwan, Province Of China.
