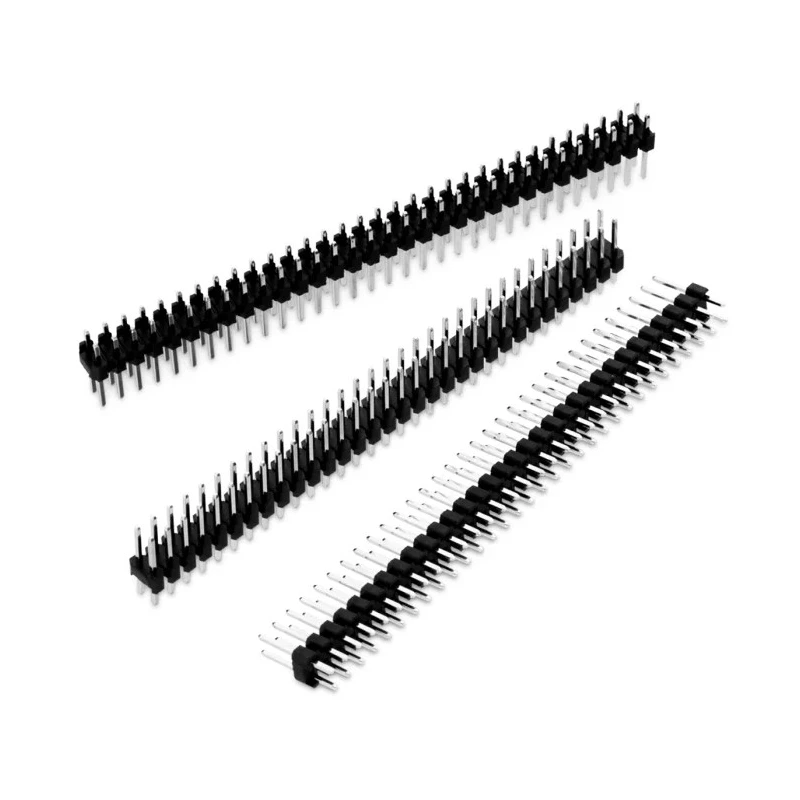

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 61303621121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- The connector features a dual-row (2 rows) configuration for enhanced connectivity.
- Contacts are made from copper alloy with gold plating for corrosion resistance and conductivity.
- Housing is molded from polyamide providing a sturdy and heat-resistant insulator.
- Designed for through-hole mounting with a 3 mm tail pin length for secure solder connections.
- Operates comfortably within temperatures from -40°C up to 105°C ensuring durability under diverse conditions.
- Rated for a current carrying capacity of 3 A and a voltage of 250 V suitable for many electronic applications.
- The unshrouded male contact design facilitates easy access for wiring and insertion.
- Pitch between pins is standard 2.54 mm, compatible with many PCB layouts.
Product Description
Wurth Elektronik 61303621121 is a high-quality WR-PHD Series straight through hole pin header designed for board-to-board electronic connections. This connector features 36 gold-plated copper alloy male contacts arranged in two rows with a 2.54 mm pitch, ensuring precise and reliable connectivity on printed circuit boards.
The insulator housing is made of durable polyamide with UL94-V0 rating, providing robust thermal and electrical insulation. Mounting is by through-hole method, compatible with various PCB assembly techniques.
Its design supports a current rating of 3 amperes and can withstand voltages up to 250 volts, suitable for a wide range of low- to medium-power applications. The operational temperature range from -40°C to 105°C makes it adaptable for industrial, consumer electronics, and embedded system uses.
The connector's tail pin length of 3 mm and mating pin length of 6 mm facilitate a secure solder joint and mating connection durability. As an unshrouded connector type, it allows easy access during manual or automated assembly.
The housing is a black UL94-V0 rated polyamide, ensuring high flame retardant properties. Gold plating on pins ensures reliable electrical contact and resistance to corrosion. The standard 2.54 mm pin pitch is suitable for many PCB designs.
The connector supports a maximum current of 3 amperes, suitable for typical electronic circuit requirements. Temperature range from -40°C to 105°C supports various environmental conditions. Through-hole mount type is ideal for robust electronic assemblies.
Connector system is board-to-board, suitable for modular electronics.
This Wurth Elektronik WR-PHD Series pin header connector is ideal for use in industrial, communications, computing, and embedded electronic applications requiring secure and reliable PCB connections.
Explore more high-quality PCB headers and connectors within the Electronics & Electricals category on EnvMart for all your component sourcing needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this pin header is 3 amperes.
This connector can handle voltages up to 250 volts.
The pitch between the pins is 2.54 mm, which is standard for many PCB layouts.
It operates within a temperature range from -40°C to 105°C.
The housing is molded from polyamide, providing robust thermal and electrical insulation.
This pin header features 36 contacts arranged in two rows.
This connector is designed for through-hole mounting.
The contacts are plated with gold to ensure reliable electrical contact and corrosion resistance.
The tail pin length is 3 mm, which facilitates secure solder connections.
This connector is unshrouded, allowing easy access for wiring and insertion.
The connector system is board-to-board, suitable for modular electronics applications.
The country of origin for this product is Taiwan.
