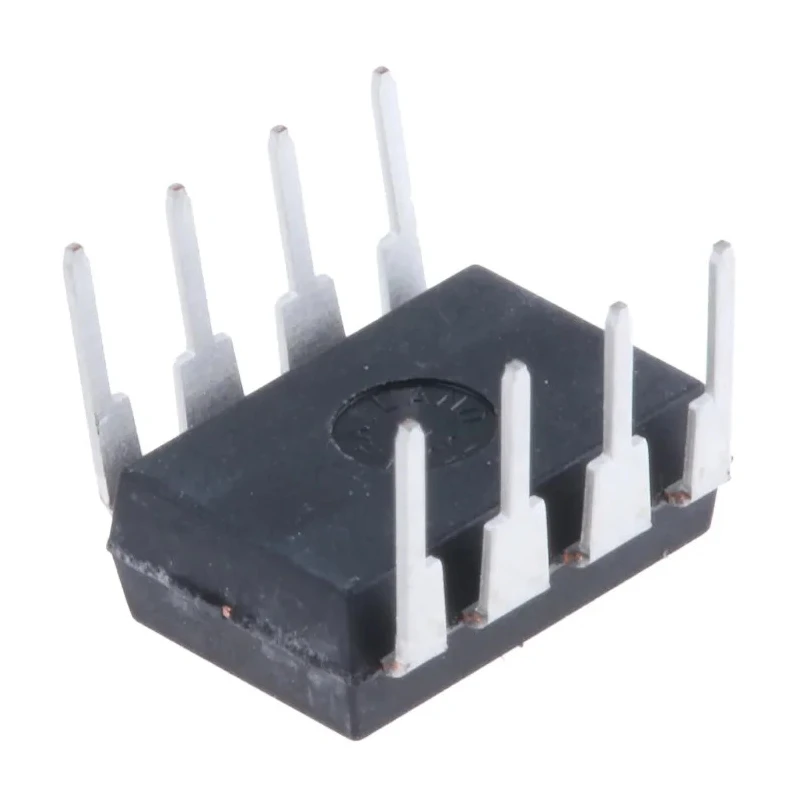

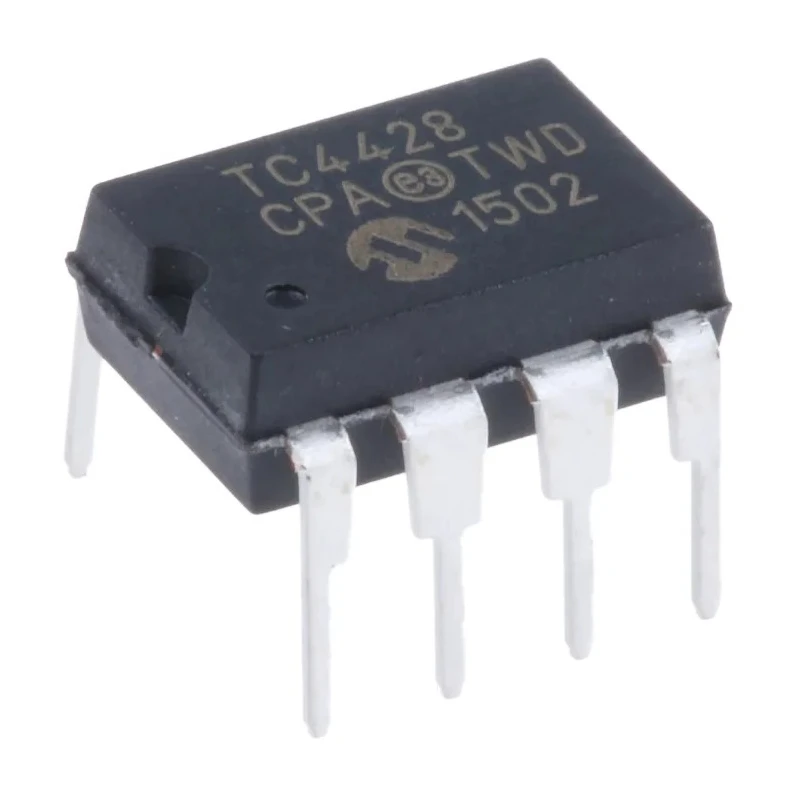

Microchip MOSFET Gate Driver 2 Outputs 1.5 A 8-Pin PDIP 18-22V TC4428CPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 10.16mm |
| Model | TC4428CPA |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TC4428 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 2 |
| Rise Time | 19ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 2 |
| Fall Time | 19ns |
| Driver Type | MOSFET |
Key Features
- Delivers 1.5 A output current suitable for driving power MOSFETs efficiently.
- Dual outputs with two drivers enhancing control versatility.
- Fast 19 ns rise and fall times reduce switching losses.
- Compact 8-pin PDIP through-hole package supports easy PCB mounting.
- Wide operating temperature range from 0°C to 70°C ensures reliable operation.
- Supports supply voltage between 18 V minimum and 22 V maximum.
- Designed for through-hole mount type applications in power management circuits.
- Automotive standard compliance is not applicable.
Product Description
Microchip TC4428CPA MOSFET Gate Driver is a dual output device designed to drive power MOSFETs and IGBTs efficiently. It provides a continuous output current of 1.5 A with rapid switching capabilities enabled by 19 ns rise and fall times, making it suitable for high-speed switching power supplies and power management applications.
The device comes in a space-efficient 8-pin PDIP package, supporting through-hole mounting for straightforward PCB assembly. Operating supply voltage ranges from 18 V to 22 V, allowing flexible integration into various power circuits.
Its operating temperature range of 0°C to 70°C makes it reliable for commercial and industrial environments. The driver is part of the TC4428 series, which is known for reliable MOSFET and IGBT driving performance.
This gate driver IC is ideal for industrial electronics, power management systems, and embedded control applications requiring precise MOSFET switching with low delay. It helps improve switching efficiency, lowers power losses, and enhances the overall performance of power electronic circuits.
Delivers 1.5 A output current suitable for driving power MOSFETs efficiently. Dual outputs with two drivers enhancing control versatility. Fast 19 ns rise and fall times reduce switching losses. Compact 8-pin PDIP through-hole package supports easy PCB mounting.
Wide operating temperature range from 0°C to 70°C ensures reliable operation. Supports supply voltage between 18 V minimum and 22 V maximum. Designed for through-hole mount type applications in power management circuits.
Dimensions of 10.16 mm length, 6.6 mm width, and 4.06 mm height ensure compact integration. Automotive standard compliance is not applicable.
Choose this Microchip TC4428CPA MOSFET Gate Driver for robust and efficient power switching performance in your electronic and industrial applications. For more semiconductor and gate driver choices, browse the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC4428CPA delivers a continuous output current of 1.5 A, suitable for driving power MOSFETs efficiently.
This model features fast rise and fall times of 19 ns, which help reduce switching losses in power applications.
It supports a supply voltage range from 18 V minimum to 22 V maximum, allowing for flexible integration into various power circuits.
The dimensions of this gate driver are 10.16 mm in length, 6.6 mm in width, and 4.06 mm in height.
This model has two outputs, enhancing control versatility for driving applications.
The TC4428CPA operates within a temperature range of 0°C to 70°C, ensuring reliable performance in various environments.
It is housed in a compact 8-pin PDIP package, designed for through-hole mounting on PCBs.
This gate driver is ideal for industrial electronics, power management systems, and embedded control applications requiring precise MOSFET switching.
It is designed as a MOSFET driver, specifically for driving power MOSFETs and IGBTs efficiently.
Automotive standard compliance is not applicable for this model.
With its fast switching capabilities and low delay, the TC4428CPA enhances overall performance and reduces power losses in power electronic circuits.
The TC4428CPA is manufactured in India.
