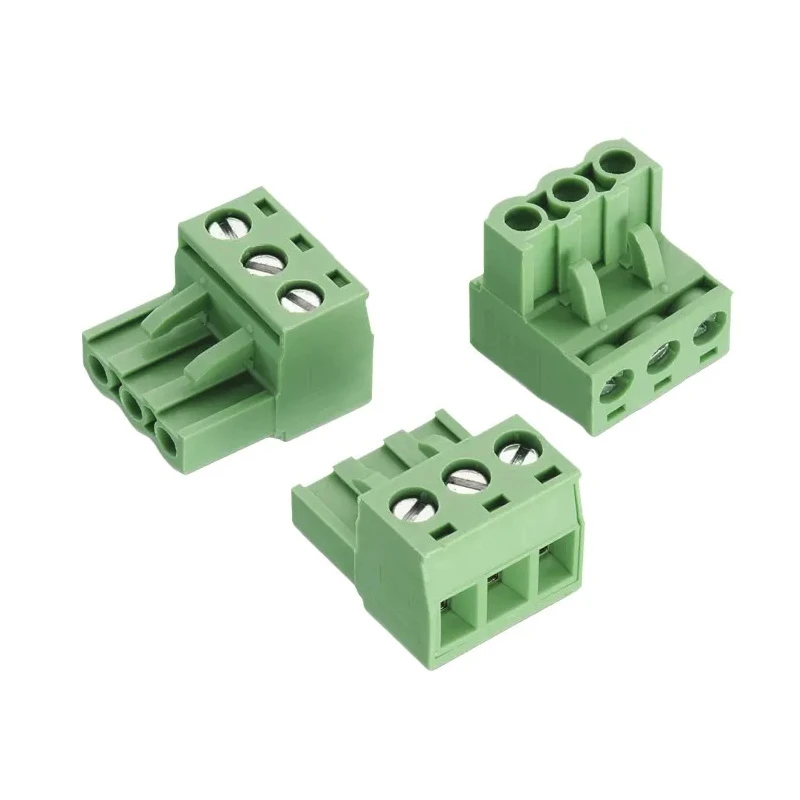

Wurth Elektronik 3527 Series Pluggable Terminal Block, 5-Contact, 5 mm Pitch, 1 Row, 20A Current, 300V AC 691352710005
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V ac |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Straight |
| Current | 20A |
| Length | 25mm |
| Depth | 15.1mm |
| Width | 18.2mm |
| Housing Material | Polyamide |
| Series | 3527 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Cable Entry |
Key Features
- Supports current rating of up to 20 amperes for effective power transmission.
- Operates at a maximum voltage of 300 volts AC ensuring compatibility with typical electrical systems.
- Constructed from durable polyamide housing with UL94-V0 flammability rating for enhanced safety.
- Compatible with wire sizes ranging from 0.13 mm² to 3.31 mm² (AWG 22 to AWG 12).
- Features male connector gender with straight orientation for easy cable entry and secure connection.
- The device has dimensions of 25 mm length, 18.2 mm width, and 15.1 mm depth for compact installations.
- Finished in green color with tin-plated phosphor bronze contacts to prevent corrosion and ensure conductivity.
- Includes retention latches on the non-wire side for secure mounting of the cable connections.
Product Description
Wurth Elektronik 691352710005 pluggable terminal block belongs to the 3527 series featuring a 5-contact, 5 mm pitch design with a single row configuration. It operates safely at 300V AC with a current rating of 20A, making it ideal for industrial, manufacturing, electronic, and power connector applications.
The terminal block is constructed from green polyamide (PA66) housing with a UL94-V0 flame resistance rating ensuring enhanced safety and durability in demanding environments. Its tin-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.
This connector is designed for vertical cable entry with a male gender and straight orientation, accommodating wire sizes from 0.13 mm² (22 AWG) up to 3.31 mm² (12 AWG). The device measures 25 mm in length, 18.2 mm in width, and 15.1 mm in depth, making it compact for PCB mounting and other confined electronic assemblies.
The retention latches on the non-wire side enhance cable security and prevent accidental disconnections. This product is widely used in electronics manufacturing, power distribution systems, and industrial control panels.
Supports up to 20A current for reliable power delivery. Rated for 300V AC operation across various electrical systems. Robust polyamide housing meets flame resistance requirements. Compatible with a wide range of wire gauges from 22 AWG to 12 AWG.
Male contact design with straightforward cable entry. Compact and easy-to-install dimensions suitable for tight spaces. Corrosion-resistant tin-plated phosphor bronze contacts. Retention latches ensure secure cable connection.
Designed for vertical mounting in electronic assemblies. Manufactured under high-quality standards in China. Explore more electronic components and connectors at EnvMart for reliable industrial solutions.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 20 amperes, making it suitable for effective power transmission.
This terminal block operates safely at a maximum voltage of 300 volts AC, ensuring compatibility with typical electrical systems.
It accommodates wire sizes ranging from 0.13 mm² to 3.31 mm², which corresponds to AWG 22 to AWG 12.
The dimensions are 25 mm in length, 18.2 mm in width, and 15.1 mm in depth, making it compact for installations.
The housing is constructed from polyamide (PA66), which has a UL94-V0 flammability rating for enhanced safety.
It features a male connector gender with a straight orientation for easy cable entry and secure connection.
Yes, it includes retention latches on the non-wire side to ensure secure mounting of the cable connections.
The pitch of this terminal block is 5 mm, which is standard for many applications.
This model has 5 contacts, allowing for multiple connections in a single unit.
It is widely used in electronics manufacturing, power distribution systems, and industrial control panels.
It is manufactured in China, adhering to high-quality standards.
This terminal block belongs to the 3527 series, known for its reliable design and performance.
