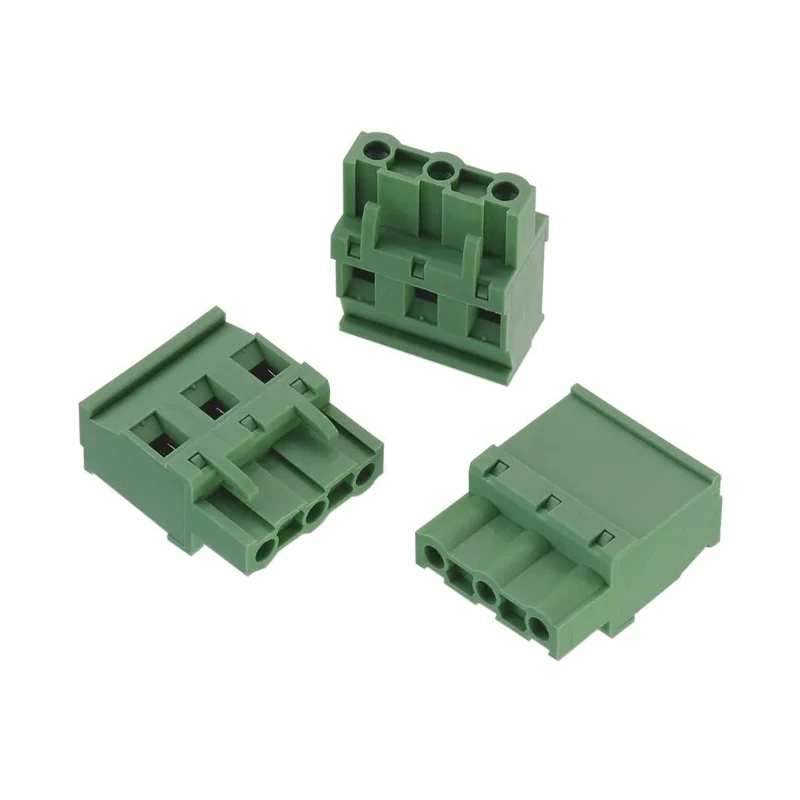

Wurth Elektronik 3524 Series Pluggable Terminal Block 6-Contact 7.62 mm Pitch 1 Row 300V AC 15A 691352410006
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V ac |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Length | 66.1mm |
| Depth | 26mm |
| Width | 12.6mm |
| Housing Material | Polyamide |
| Series | 3524 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.21mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Cable Entry |
Key Features
- Supports wire sizes from 24 AWG to 12 AWG corresponding to 0.21 mm² to 3.31 mm².
- Rated for 15A current and 300V AC voltage for reliable electrical performance.
- Constructed with green polyamide housing material ensuring durability and UL94-V0 flame retardant rating.
- Designed with a retention latch and M3 slot type screws for secure wiring connections.
- Manufactured in China, belonging to the WR-TBL 3524 series for standardized compatibility.
Product Description
Wurth Elektronik 691352410006 pluggable terminal block is a high-quality 6-contact connector designed for secure, modular electrical connections in industrial and electronics applications. It features a 7.62 mm pitch and a single-row configuration with straight orientation, facilitating easy cable entry wire connection.
This terminal block supports wire sizes ranging from 24 AWG (0.21 mm²) to 12 AWG (3.31 mm²) and is rated for up to 15A current and 300V AC voltage, making it suitable for moderate power distribution and signal applications.
The housing material is a green polyamide with a UL94-V0 flame retardancy classification, ensuring high mechanical strength and safety in various electrical environments. The inclusion of a retention latch and slot type M3 screw terminals ensures reliable and secure wire termination, reducing the risk of loose connections during operation.
With compact dimensions of 66.1 mm length, 12.6 mm width, and 26 mm depth, this terminal block is ideal for space-constrained PCB assemblies and wiring harnesses.
Manufactured in China, the WR-TBL 3524 series meets industrial standards for pluggable terminal blocks and serves a wide range of industrial, manufacturing, automation, and electrical engineering applications.
Supports wire sizes from 24 AWG to 12 AWG for versatile wiring options. Rated for 15A current and 300V AC voltage to handle moderate power loads. Polyamide housing material provides durability and fire resistance. Retention latch design enhances connection reliability under vibration.
Compact 7.62 mm pitch and 1-row configuration save PCB space. Suitable for industrial, manufacturing, and automation systems. Explore EnvMart for a comprehensive range of industrial connectors and Pluggable Terminal Blocks including products from Wurth Elektronik.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 300V AC, making it suitable for moderate power applications.
This terminal block can handle up to 15A of current.
It supports wire sizes ranging from 24 AWG (0.21 mm²) to 12 AWG (3.31 mm²).
The pitch of this terminal block is 7.62 mm, allowing for compact arrangements in PCB assemblies.
It is constructed with green polyamide housing, which has a UL94-V0 flame retardant rating.
This model features 6 contacts for electrical connections.
The dimensions are 66.1 mm in length, 12.6 mm in width, and 26 mm in depth.
It utilizes a cable entry method for wire connections.
The connector is designed with a straight orientation for easy installation.
The retention latch enhances connection reliability, reducing the risk of loose connections during operation.
It is manufactured in China, ensuring compliance with industrial standards.
It is suitable for a wide range of industrial, manufacturing, automation, and electrical engineering applications.
