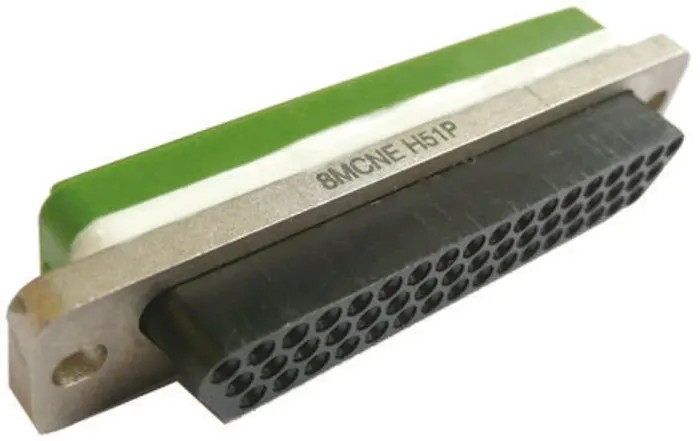

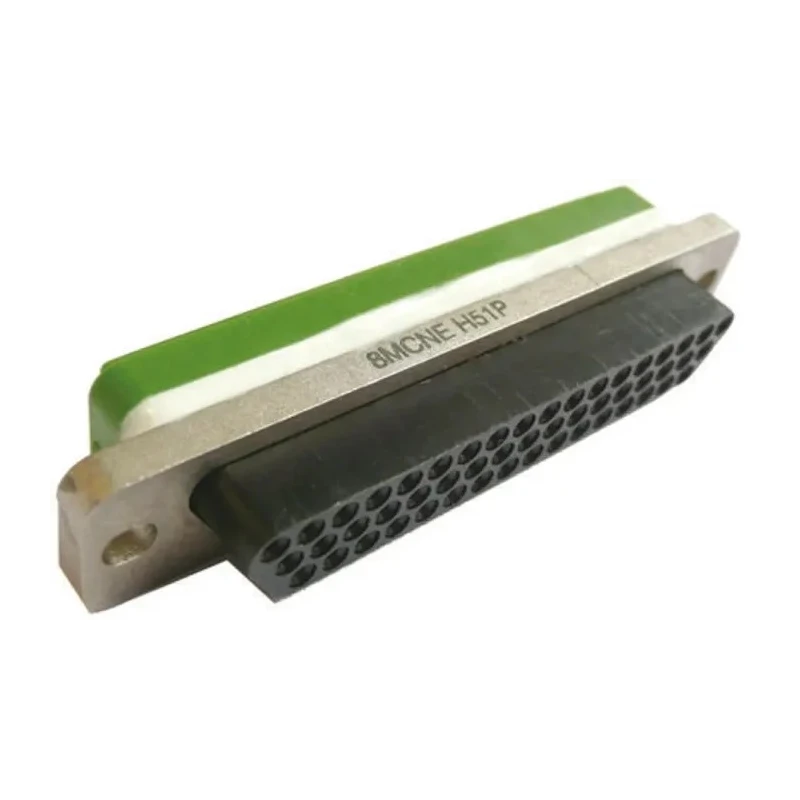

Souriau Sunbank by Eaton MicroComp 51 Way Straight 2 mm Pitch Cable D-Sub Connector Male/Female 8MCNEH51P011B

Souriau Sunbank by Eaton 8MCNEH51P011B MicroComp 51 Way Straight 2 mm Pitch Cable D-Sub Connector Male/Female is engineered for demanding industrial and electronic applications requiring high contact density and reliability. This connector features 51 contacts arranged with a 2 mm pitch, supporting a current of 2.5A per contact and providing robust electrical performance.

The connector has a straight orientation and is designed for cable mounting, making it ideal for integration in complex wiring harnesses. Its housing is made from fibreglass reinforced polymer, offering excellent mechanical strength and resistance to environmental factors. The contacts are crafted from copper alloy and plated with gold to ensure superior conductivity and prevent corrosion under extended use.

Operating temperature ranges from -55°C to 175°C allow this connector to perform reliably in extreme conditions typical of industrial, manufacturing, automotive, and military environments. The crimp termination style facilitates secure attachment of AWG 26-24 wires and supports easy wiring flexibility with dismountable contacts.

The MicroComp series presents a lightweight alternative to MIL-STD 83513 connectors, providing high vibration resistance and a sealed male connector design for enhanced durability. Supplied with an insertion/extraction tool, assembly and maintenance are convenient and efficient.

Supports 51 electrical contacts rated for 2.5A current capacity. Features a straight orientation and cable mount type for flexible installation. Constructed with fibreglass reinforced polymer housing for durability. Operating temperature range from -55°C minimum to 175°C maximum for harsh environments.

Gold-plated copper alloy contacts ensure high conductivity and corrosion resistance. Utilizes crimp termination for secure and reliable contact connections. Designed with a compact 2 mm pitch to offer high-density wiring capability.

Includes an insertion/extraction tool for ease of assembly and maintenance. Complies with MicroComp series standards suitable for industrial and military alternative applications. Manufactured in France with robust sealing for environmental protection.

This connector is extensively used in industrial automation, telecommunications, military equipment, aerospace systems, and test & measurement devices where reliability and high connectivity are paramount. Its lightweight composite materials and vibration resistance make it ideal for mobile and rugged conditions.

Explore more from the Souriau Sunbank by Eaton MicroComp range and connect with advanced electronic components at EnvMart for your engineering and production needs.
