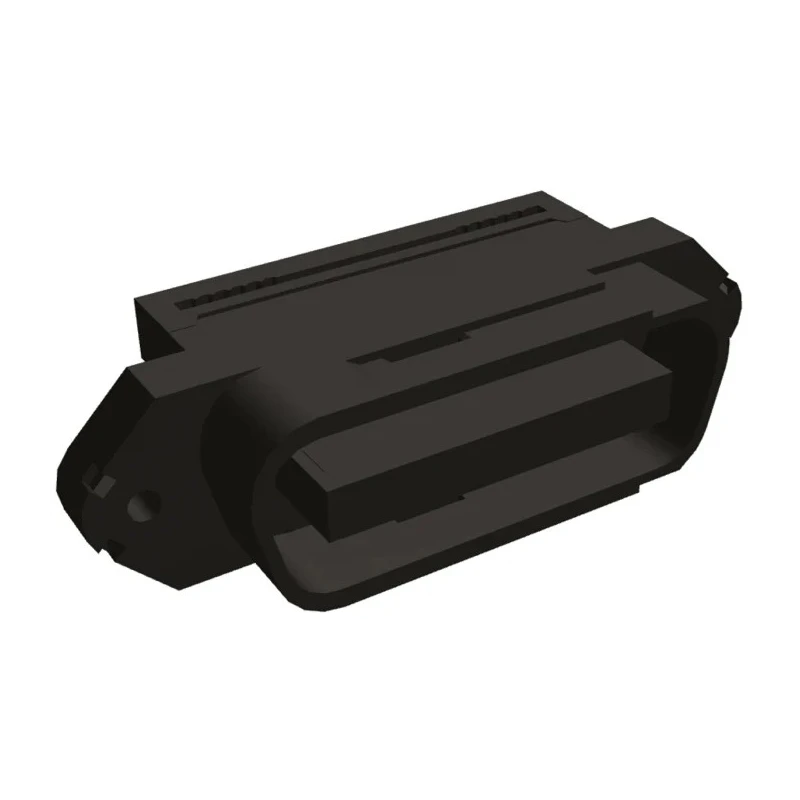

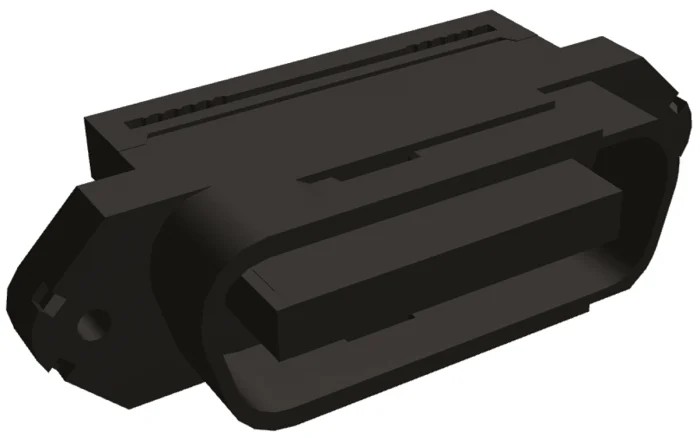

TE Connectivity 24-Way IDC Connector Male for Panel Mount, 2 Row 554103-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Model | 554103-1 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | CHAMP -LATCH |
| Termination Type | IDC |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 24 contacts arranged in 2 rows for reliable connections.
- Supports 1 ampere current capacity with 1.27 mm pitch between contacts.
- Constructed with phosphor bronze contacts and a thermoplastic housing for durability.
- Gold plating on contacts ensures excellent conductivity and corrosion resistance.
- Operates reliably between -40°C to 75°C for diverse environments.
- Shrouded connector design enhances safety and prevents accidental contact.
- Uses IDC termination type suitable for ribbon cable connections.
- Panel mount type with a CHAMP -LATCH series for secure retention.
Product Description
TE Connectivity 554103-1 IDC Connector Male for Panel Mount, 24 contacts, 2 rows, designed to provide reliable and efficient electrical connections in electronic equipment. This component operates with a current of 1A and features a 1.27 mm pitch, ensuring precise mating and signal integrity.
The connector housing is made from durable thermoplastic material, while the phosphor bronze contacts have gold plating to resist corrosion and maintain conductivity. Its shrouded design enhances user safety and secures the contacts firmly during panel mounting using the CHAMP -LATCH series mechanism.
The product is rated for operation from -40°C up to 75°C, making it suitable for industrial, commercial, and laboratory electronic assembly applications. The straight orientation and panel mount type make installation straightforward and reliable.
Ideal use cases include PCB connectors and wire housing in electronics components assemblies, enhancing signal reliability and mechanical strength in demanding environments. Features 24 contacts arranged in 2 rows for reliable connections.
Supports 1 ampere current capacity with 1.27 mm pitch between contacts. Constructed with phosphor bronze contacts and a thermoplastic housing for durability. Gold plating on contacts ensures excellent conductivity and corrosion resistance.
Operates reliably between -40°C to 75°C for diverse environments. Shrouded connector design enhances safety and prevents accidental contact. Uses IDC termination type suitable for ribbon cable connections. Panel mount type with a CHAMP -LATCH series for secure retention.
Male connector gender with straight orientation for standard panel integration. Complies with RoHS standards for environmental safety.
This product is essential for electronic manufacturing, prototyping, and repair, commonly found in industrial, laboratory, manufacturing, and electronic assembly contexts. Explore more IDC Connectors and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current capacity of 1 ampere.
The pitch between the contacts is 1.27 mm.
It features phosphor bronze contacts and a thermoplastic housing.
It operates reliably between -40°C to 75°C.
This connector has a total of 24 contacts arranged in 2 rows.
It uses IDC (Insulation Displacement Connector) termination suitable for ribbon cable connections.
The shrouded design enhances safety and prevents accidental contact.
This model is designed for panel mounting.
It belongs to the CHAMP -LATCH series, which provides secure retention.
The connector features male contacts.
Yes, it complies with RoHS standards for environmental safety.
The country of origin for this connector is India.
