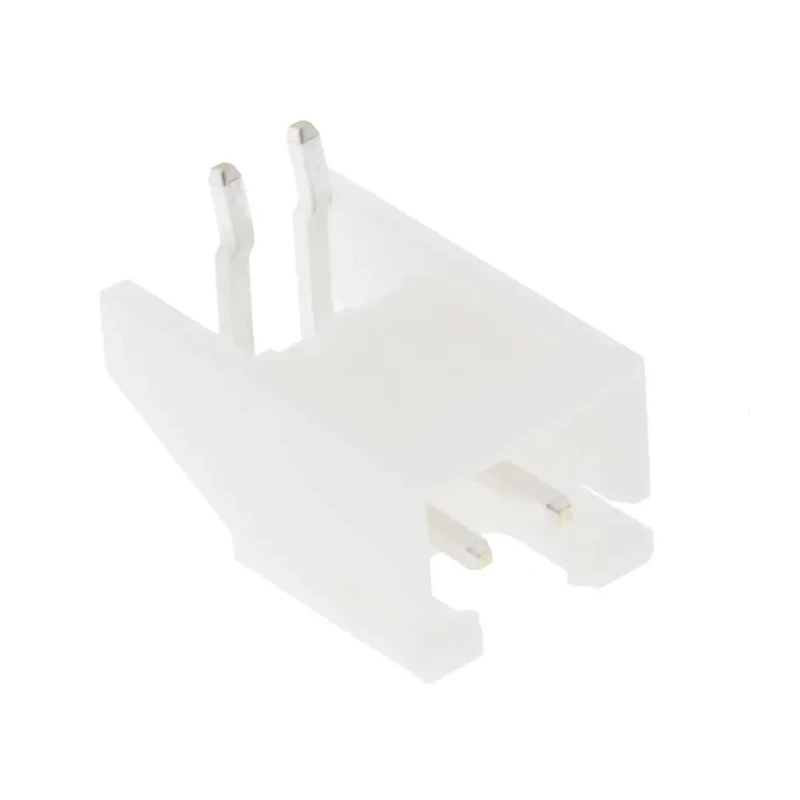

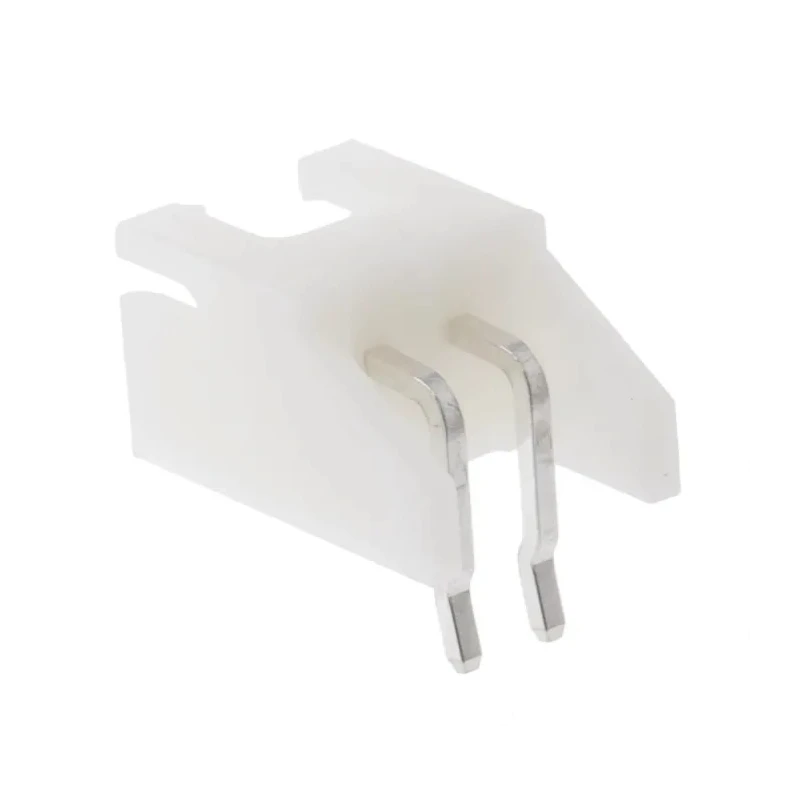

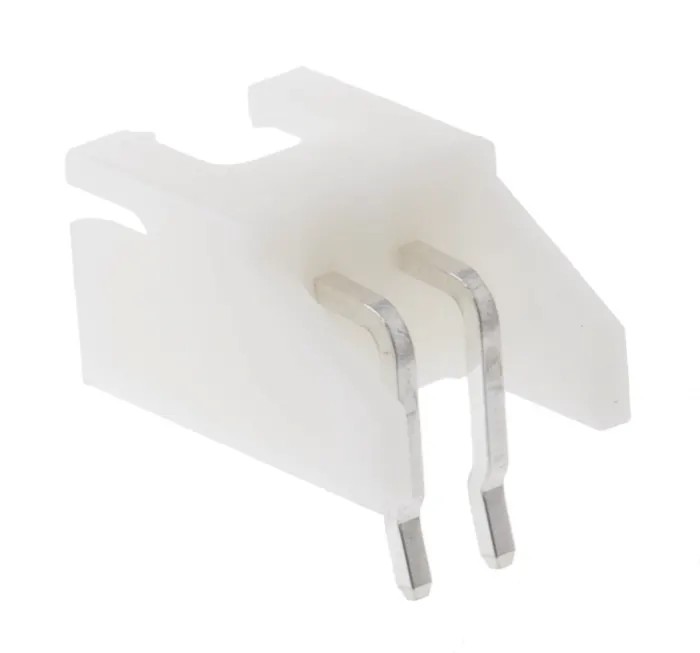

JST XH Series Right Angle Through Hole PCB Header, 2 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded S2B-XH-A(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Right Angle Through Hole PCB Header, 2 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded S2B-XH-A(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S2B-XH-A(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.4mm

Key Features

This PCB header features a right angle orientation suitable for wire-to-board connections.
It has a pitch of 2.5 mm for precise board mounting.
The connector system is wire-to-board with brass contacts plated with tin for reliable conductivity.
Housing is made of polyamide with flame-retardant rating UL 94V-0.
The component operates safely at voltages up to 250 V and currents up to 3 A.
Designed for a temperature range of -25°C to 85°C for durable performance.
The header is shrouded and mounts through hole for secure installation.
Ideal for industrial and electronic equipment requiring robust PCB interconnections.

Product Description

JST S2B-XH-A(LF)(SN) is a Right Angle Through Hole PCB Header from the XH series that offers robust, reliable electrical connections for printed circuit boards. This shrouded header features 2 contacts arranged in a single row with a precise 2.5 mm pitch, making it suitable for industrial electronics, power connectors, and wire housing systems.

Constructed with polyamide housing rated UL 94V-0 for flame resistance and high durability, it ensures safety under demanding conditions. The brass contacts are tin plated to provide excellent conductivity and corrosion resistance. The connector has a right angle orientation and uses a through-hole mounting style for secure and stable PCB integration.

This PCB header supports electrical currents up to 3 A and voltages up to 250 V, making it appropriate for medium-power electronic assemblies. It withstands temperature ranges from -25°C to 85°C, making it suitable for various industrial, electronic, and manufacturing environments.

The mating pin length is 3.4 mm, allowing effective connection with corresponding receptacle housings. The product is ideal for applications requiring wire-to-board connector solutions with reliable mechanical and electrical performance, commonly used in industrial automation, control systems, and instrumentation.

This header features right angle orientation for space saving on PCBs. Shrouded design protects contacts and ensures correct mating. Made from polyamide with UL 94V-0 flame retardancy rating. Contacts are brass with tin plating for durability and conductivity.

Rated voltage of 250 V and current of 3 A for safety and reliability. Operates effectively within temperature range from -25°C to 85°C. Through hole mount type provides strong physical mounting to PCB. Wire-to-board connector system ensures versatile wiring options.

Manufactured in China following JST quality standards.

This JST XH Series Right Angle Through Hole PCB Header S2B-XH-A(LF)(SN) is essential for electronic manufacturers requiring quality and durability in PCB connectors. It fits applications in industrial tools, measurement instruments, automation equipment, and electronic component assemblies.

Explore additional JST PCB Headers and connectors at EnvMart for comprehensive industrial electronic wiring solutions.
