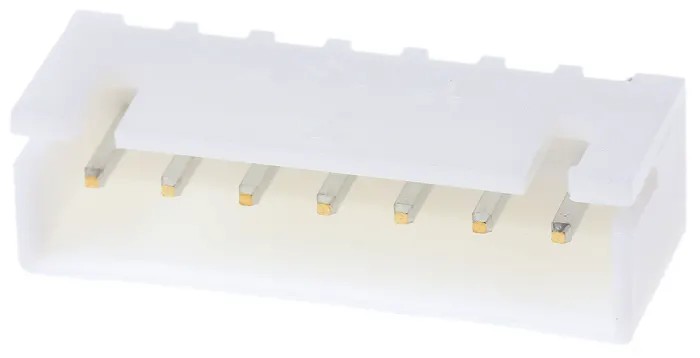

JST XH Series Straight Through Hole PCB Header 7 Contacts 2.5 mm Pitch 1 Row Shrouded B7B-XH-A(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

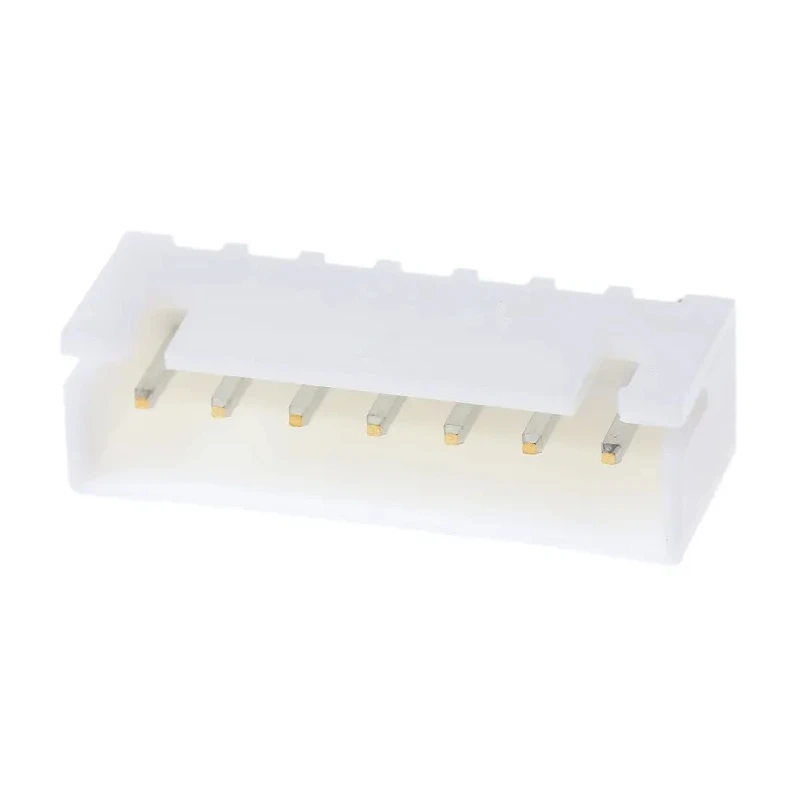

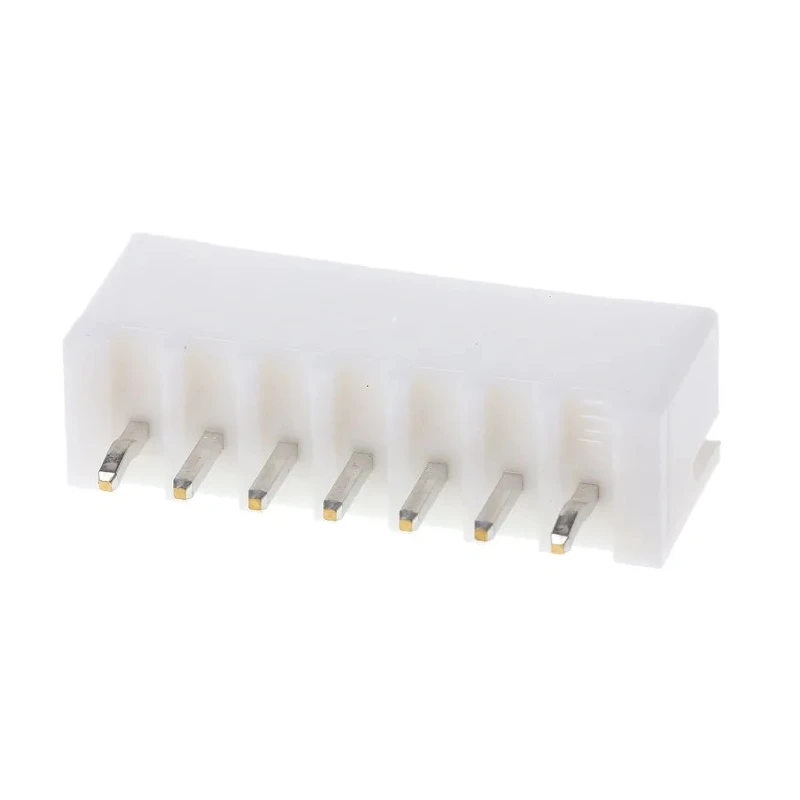

JST XH Series Straight Through Hole PCB Header 7 Contacts 2.5 mm Pitch 1 Row Shrouded B7B-XH-A(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B7B-XH-A(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.4mm

Key Features

Constructed with polyamide housing for durable insulation.
Supports current rating up to 3A with brass contacts plated with tin.
Designed with shrouded male contacts for reliable wire-to-board connection.
Operates effectively within temperature range from -25°C to 85°C.
Features a 3.4 mm mating pin length ensuring secure mechanical fit.
Connector system employs through hole mounting for robust PCB integration.
Volt rating of 250V suitable for various industrial applications.
Ideal for industrial electronic components and power connector assemblies.

Product Description

JST B7B-XH-A(LF)(SN) PCB Header belongs to the XH series of box-type straight through hole, shrouded headers with a 2.5 mm pitch and single row configuration. This connector is designed for wire-to-board applications, providing reliable electrical connections in industrial and electronic systems.

The header features a polyamide housing material that complies with UL 94V-0 flammability rating, ensuring safety and durability in demanding environments. The brass male contacts are tin-plated to provide corrosion resistance and reliable conductivity.

Operating over a temperature range of -25°C to +85°C, this product supports a current rating of 3A and is rated for voltages up to 250V AC/DC. The connector's 3.4 mm mating pin length ensures a secure, precise mechanical engagement with mating receptacle housings.

The through hole mount type contributes to sturdy board connections suitable for industrial manufacturing, power distribution, and electronic equipment assembly. This shrouded header provides protection against accidental short circuits and ensures ease of mating and unmating cycles.

Polyamide housing with UL 94V-0 rating. Tin-plated brass contacts for corrosion resistance. Single-row 7-contact configuration with 2.5 mm pitch. Operating temperature from -25°C to 85°C for reliability. 3.4 mm mating pin length for secure connections.

Rated for 3A current and 250V voltage. Through hole mount suitable for industrial PCB applications. Shrouded design provides enhanced safety and durability.

This JST XH series PCB header is ideal for use in industrial electronics, power supply systems, manufacturing automation, and other commercial electronic assemblies where dependable wire-to-board connections are critical. Compatible mating connectors enhance system modularity and serviceability.

Explore the extensive range of JST connectors and sophisticated PCB components available for precise and efficient electronic design at EnvMart.
