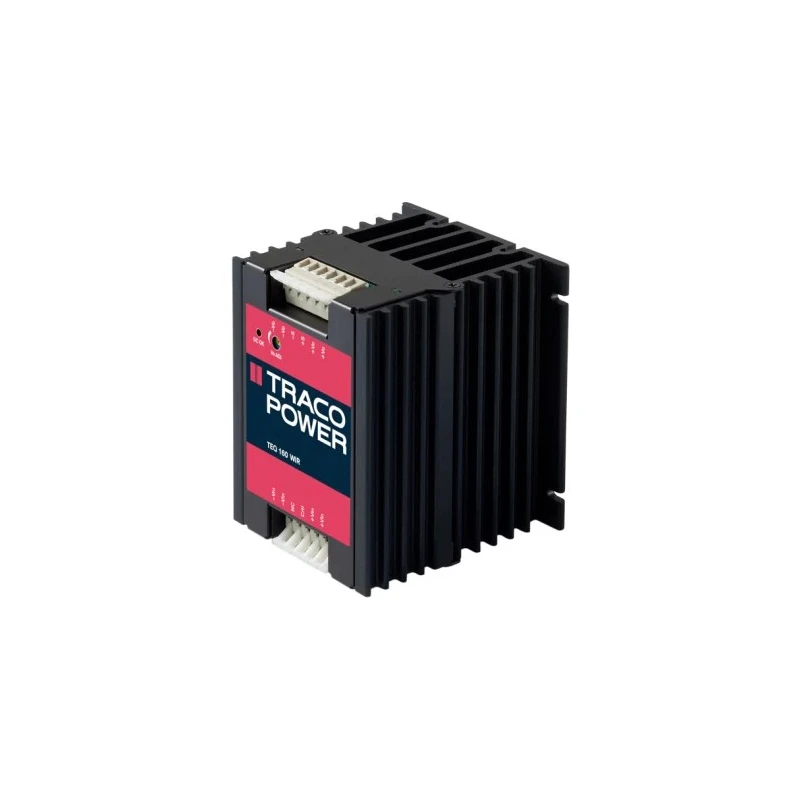

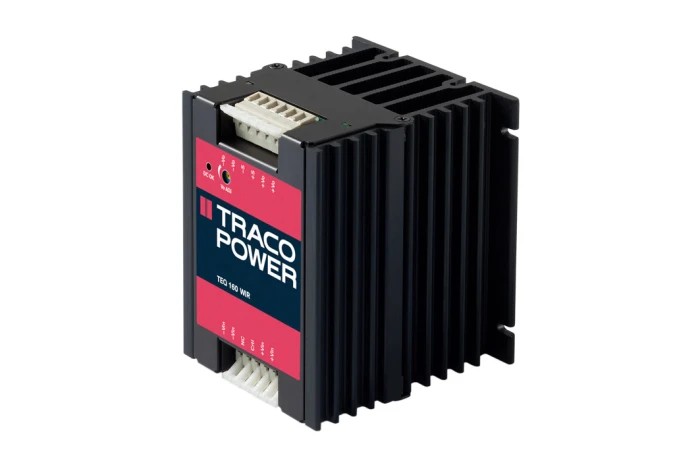

TRACOPOWER High Efficiency Industrial DC/DC Converter 160V Input 15A Output, 9.6V Output Voltage, 100W TEQ 160-7212WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 88.9mm |
| Model | TEQ 160-7212WIR |
| Depth | 101.6mm |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 400000h |
| Number of outputs | 5 |
| Maximum Output Power | 100W |
| Maximum Input Voltage | 160V |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 9.6V |
| Output Current 1 | 15A |
| Isolation Voltage | 2.25kV |
| Input Ratio | 4:1 |
| Output Voltage 2 | 13.2V |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- High efficiency of approximately 89% maximizes energy savings and reduces heat output.
- Designed for operating temperature range from -40°C minimum to 90°C maximum to withstand harsh conditions.
- Features isolation voltage of 2250 VDC and safety features such as under voltage lockout and soft start.
- Construction includes rugged sealed metal case enabling installation on chassis without PCB mounting.
- Meets industrial standards UL 60950-1, IEC/EN 60950-1, UL 508, and EN50155 for reliability and safety.
- Ideal for railway systems, battery operated equipment, and demanding industrial power applications.
- Includes output voltage trimming and remote ON/OFF capabilities for precise control.
Product Description
TRACOPOWER TEQ 160-7212WIR is a high-performance industrial DC/DC Converter engineered to provide reliable power conversion with a wide input range from 43V to 160V and a regulated output voltage of 9.6V at 15A current. This model delivers 100W power with robust features tailored for industrial, railway, and battery-powered systems.
The converter’s ultra-wide 4:1 input voltage range allows stable operation across fluctuating input voltages typical in industrial contexts. It features a rugged sealed metal enclosure designed for mounting on chassis, eliminating the need for PCB installation, enhancing durability against shock and vibration.
Operating reliably between -40°C and 90°C (with derating beyond 75°C), it maintains 89% efficiency, ensuring energy-efficient performance. Electrical isolation of 2250 VDC safeguards system components and personnel. Additional features include under voltage lockout for input protection, soft start to reduce inrush current, and output voltage adjustment for precise power delivery.
Certified to meet global safety and performance standards including UL 60950-1, IEC/EN 60950-1, UL 508, and EN50155, this converter is optimized for challenging environments like railway applications. The innovative design supports remote ON/OFF control functionality for flexible system integration.
This model is ideal for applications requiring reliable, efficient, isolated DC power with a long MTBF of 400,000 hours, supporting continuous industrial operations. Country of Origin is Taiwan, Province Of China.
Ultra-wide 4:1 input voltage range supports input voltages from 43V to 160V. Continuous power output of 100W with high efficiency up to 89%. Rugged metal case suitable for chassis mounting in industrial environments. Operating temperature from -40°C to 90°C, with natural convection cooling up to 75°C.
Electrical isolation voltage of 2250 VDC enhances safety and system reliability. Under voltage lockout and soft start features protect the device and load. Certified to UL and IEC standards, suitable for railway and industrial applications.
Includes remote ON/OFF and output voltage trimming for adaptable control. Explore the Electronics & Electricals category at EnvMart for reliable power converters including DC/DC solutions tailored to industrial power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEQ 160-7212WIR has an ultra-wide input voltage range of 43V to 160V, allowing stable operation across fluctuating input voltages.
This model delivers a maximum output power of 100W, with a regulated output voltage of 9.6V at a current of 15A.
The efficiency of this DC/DC converter is approximately 89%, which maximizes energy savings and reduces heat output.
It operates within a temperature range from -40°C to 90°C, with derating beyond 75°C for reliable performance in harsh conditions.
This converter features an isolation voltage of 2250 VDC, under voltage lockout, and a soft start function to protect the device and connected loads.
It is constructed with a rugged sealed metal case suitable for chassis mounting, eliminating the need for PCB installation and enhancing durability against shock and vibration.
This model provides a total of 5 outputs, allowing for versatile power distribution.
It meets industrial standards including UL 60950-1, IEC/EN 60950-1, UL 508, and EN50155, ensuring reliability and safety in various applications.
Yes, it includes remote ON/OFF capabilities for flexible system integration and precise control over the power delivery.
The mean time between failures (MTBF) for this model is 400,000 hours, indicating its reliability for continuous industrial operations.
The dimensions of this model are 88.9mm in length and 101.6mm in depth, allowing for compact installation in various setups.
It is ideal for railway systems, battery-operated equipment, and demanding industrial power applications due to its robust features and performance.
