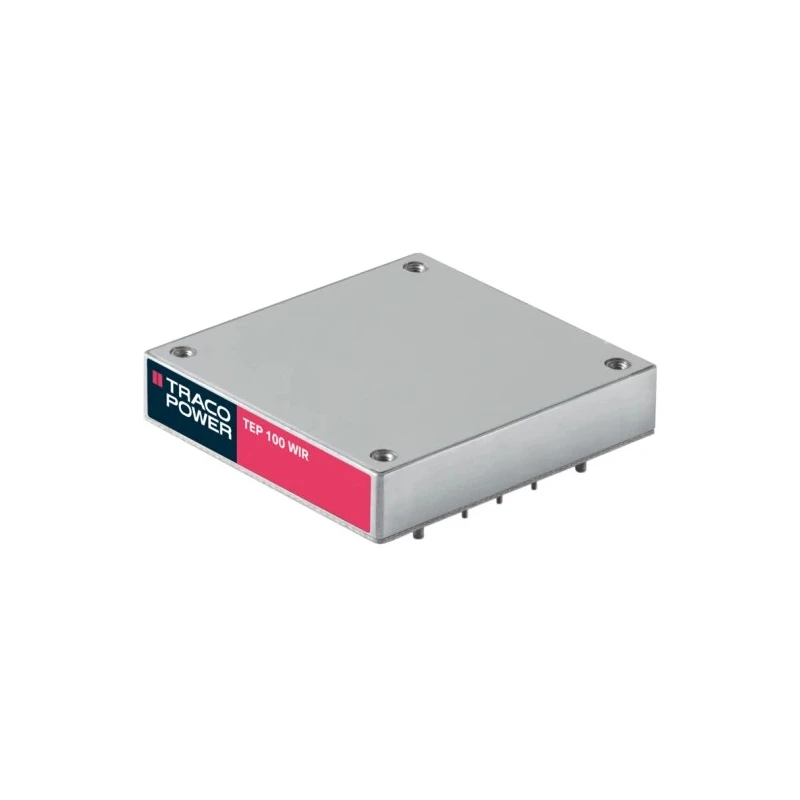

TRACOPOWER High Performance Regulated Isolated DC/DC Converter 28V Output 36V Input 100W Half Brick TEP 100-2416WIR

TRACOPOWER TEP 100-2416WIR is a high-performance regulated and isolated DC/DC converter designed for industrial applications requiring robust and efficient power supplies. This 100W converter provides a steady 28V output voltage with an exceptionally wide input voltage range from 9V up to 36V. The product is built into a sealed half brick package with a compact size of 57.9mm length and 12.1mm depth, ensuring easy integration into power systems.

The converter offers high efficiency of 90%, contributing to reduced thermal losses and enabling natural convection cooling for operation up to 60°C ambient temperature. With additional heatsinks or mounting on an iron base plate, operation can be extended up to 85°C.

This model includes advanced features such as a soft-start functionality, remote On/Off input, adjustable output voltage range (-20% to +10%), and protective measures like reverse input polarity protection, under voltage lock-out, and over temperature protection. Its 9-pin configuration complies with industry-standard layouts, and isolation voltage of 2.25kV enhances safety and reduces electrical noise.

Applications for the TEP 100-2416WIR converter are diverse, including telecom and datacom equipment, industrial control systems, and railway onboard power distribution, emphasizing reliability and compliance with railway standards EN 50155. The product is manufactured in Taiwan, Province of China, assuring quality and consistency.

This converter features high efficiency up to 90% for reliable power conversion. Wide input voltage range from 9V to 36V supports diverse applications. Contains 9 pins in a half brick form factor for compact integration.

Operating temperature from -40°C to 75°C ensures durability under harsh conditions. Isolated design with 2.25kV isolation voltage increases safety and reduces interference. Equipped with reverse input voltage protection and under voltage lock-out for robust operation.

Includes soft start, remote on/off input, and adjustable output voltage from -20% to +10%. Ideal for telecom, datacom, industry control, and railway onboard power distribution. Compact metal casing ensures durability and natural convection cooling up to 60°C.

The TRACOPOWER TEP 100-2416WIR DC/DC converter is part of the TEP 100WIR series, distinguished by high performance, compact size, and suitability for challenging environments. It meets demanding railway and industrial standards, providing an efficient and robust power solution. Explore EnvMart’s wide range of DC/DC Converters and industrial electronic components for your application needs.
