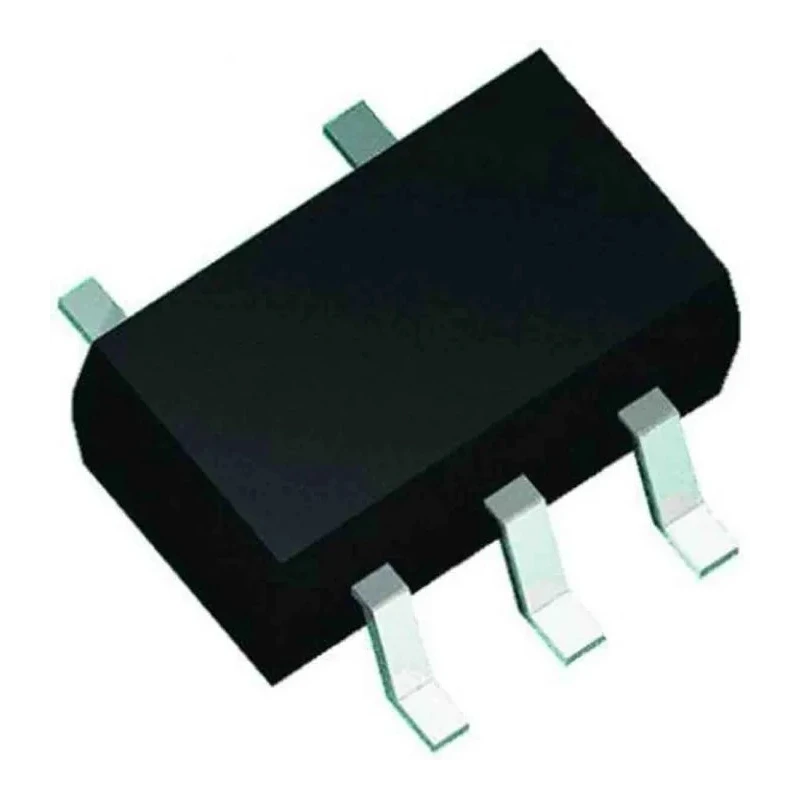

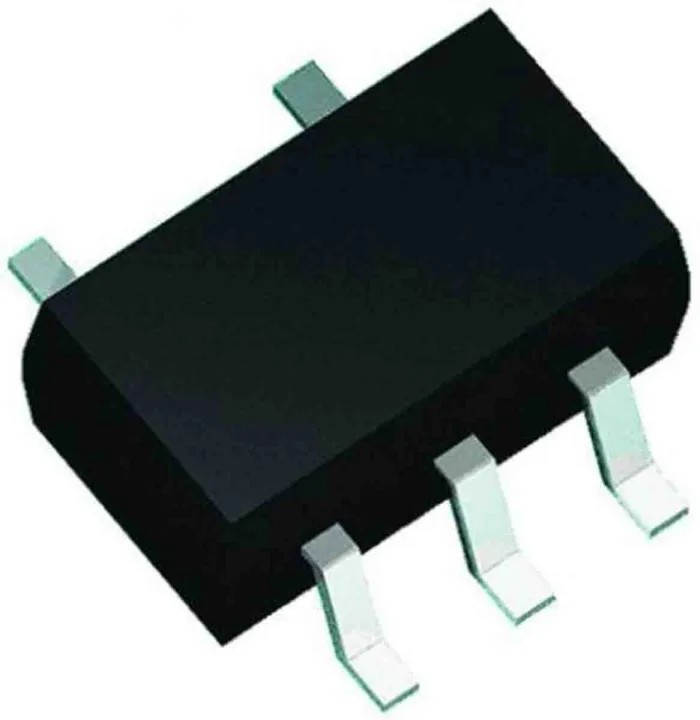

STMicroelectronics Ultra Low Quiescent Current Positive Voltage Regulator 1.5V-5.5V 3-Pin Through Hole STLQ015M20R
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STLQ015M20R |
| Mount Type | Through Hole |
| Series | STLQ015 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 1.4μA |
| Minimum Input Voltage | 1.5V |
| Pin Count | 3 |
Key Features
- Operates with a minimum input voltage of 1.5V and maximum input voltage of 5.5V.
- Features an ultra low quiescent current of 1.4 microamperes for extended battery life.
- Designed with a 3-pin through hole mount for easy PCB integration.
- Supports positive polarity voltage regulation without automotive standard certification.
- Rated for maximum operating temperature of 125°C, suitable for various industrial environments.
- Includes internal current and thermal limit protection for device safety.
- Compatible with ceramic capacitors to ensure stable operation.
Product Description
STMicroelectronics STLQ015M20R is an ultra low quiescent current linear voltage regulator designed for applications requiring extended battery life and efficient power management. This positive polarity voltage regulator operates within an input voltage range of 1.5V to 5.5V, making it suitable for portable battery-powered systems, electronic sensors, and microcontroller power supplies.
The device features a low quiescent current of just 1.4μA, which significantly reduces battery drain during standby modes. With a 3-pin through hole mount, it integrates easily into printed circuit boards, supporting robust and reliable connections.
Built-in internal current and thermal limit protections enhance device safety by preventing damage due to overcurrent or overheating. The regulator operates safely up to a maximum temperature of 125°C, ensuring dependable performance in harsh industrial and commercial environments.
This voltage regulator is compatible with ceramic capacitors to ensure stable output voltage and improved circuit reliability. It does not comply with automotive standards, focusing instead on general industrial and electronic component applications.
Typical uses include portable and battery-operated consumer electronics, sensor modules, microcontroller power supplies, and other electronic circuits requiring efficient low-voltage regulation.
Operates with input voltage range from 1.5V to 5.5V. Ultra low quiescent current of 1.4μA for energy-efficient designs. 3-pin through hole package for easy mounting. Internal current and thermal limit protections. Supports positive polarity voltage regulation.
Maximum operating temperature of 125°C for extended reliability. Compatible with ceramic capacitors for stable voltage output.
For further exploration of power management components, browse the Electronics & Electricals > Semiconductor > Voltage Regulator category on EnvMart to find complementary products from STMicroelectronics and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STLQ015M20R operates with an input voltage range of 1.5V to 5.5V.
This model features an ultra low quiescent current of 1.4μA, which helps to extend battery life during standby modes.
The maximum operating temperature for this voltage regulator is 125°C, making it suitable for various industrial environments.
It is designed with a 3-pin through hole mount, allowing for easy integration into printed circuit boards.
The STLQ015M20R supports positive polarity voltage regulation.
It includes internal current and thermal limit protections to enhance device safety and prevent damage from overcurrent or overheating.
Yes, this voltage regulator is compatible with ceramic capacitors, ensuring stable output voltage.
Typical uses include portable battery-operated consumer electronics, sensor modules, and microcontroller power supplies.
The STLQ015M20R has a pin count of 3.
No, this model does not comply with automotive standards and is focused on general industrial and electronic component applications.
It belongs to the STLQ015 series of voltage regulators.
The country of origin for the STLQ015M20R is India.
