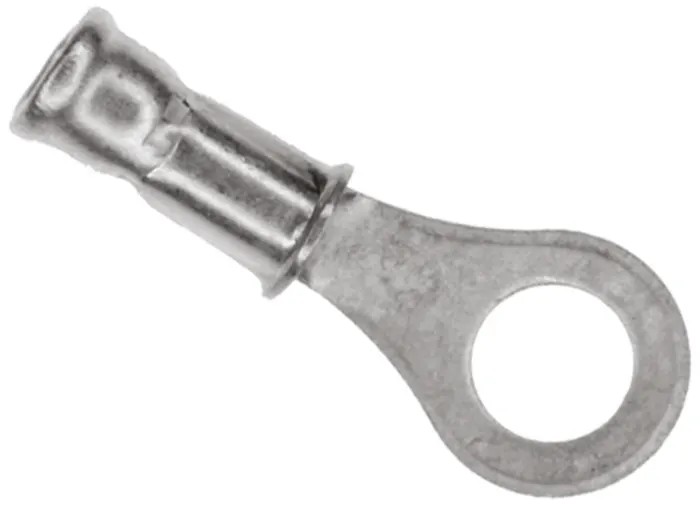

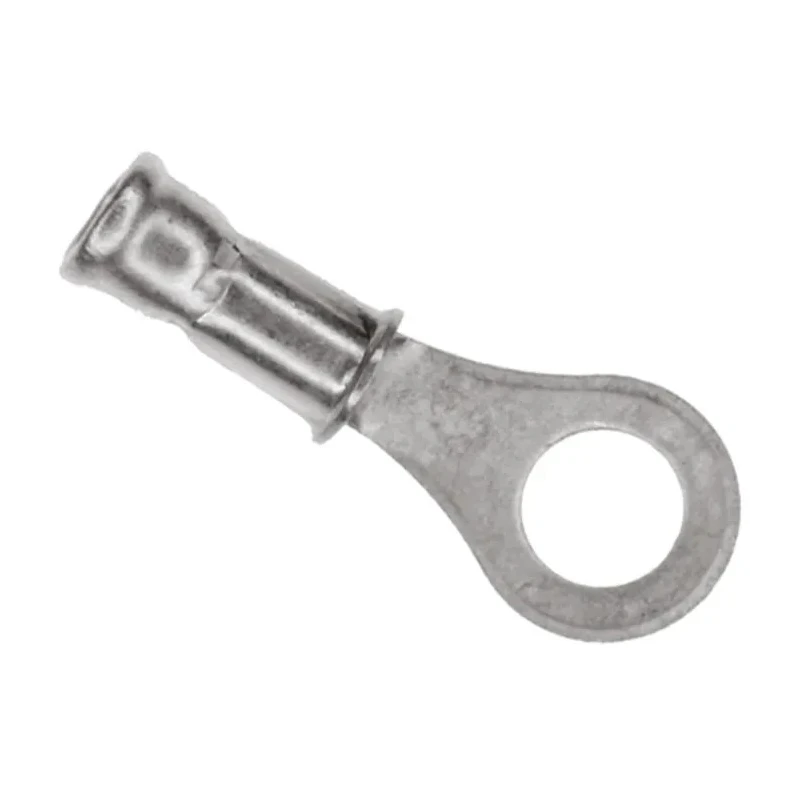

TE Connectivity DIAMOND GRIP Uninsulated Ring Terminal M2.5 Stud Size 26 AWG 22 AWG Wire Size 31679
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.46mm |
| Model | 31679 |
| Insulation | Uninsulated |
| Overall Length | 14.86mm |
| Contact Material | Copper |
| Series | DIAMOND GRIP |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 5.16mm |
| Inner Ring Diameter | 3.02mm |
| Stud Size | M2.5 |
Key Features
- Constructed with copper contact material for excellent conductivity.
- Tin plating protects against corrosion and enhances durability.
- Uninsulated design allows for direct contact and maximum conductivity.
- Overall length of 14.86 mm ensures compact installation.
- Supports operating temperatures up to 170°C for high-temperature environments.
- Outer ring diameter of 5.16 mm and inner ring diameter of 3.02 mm for secure connections.
- Compliant with RoHS standards ensuring environmental safety.
- Suitable for industrial, automotive, and electrical wiring applications.
Product Description
TE Connectivity 31679 DIAMOND GRIP uninsulated ring terminal is engineered for reliable electrical connections in various industrial and electronic applications. It supports M2.5 stud size and wire sizes ranging from 26 AWG to 22 AWG, delivering versatility in wiring solutions.
This ring terminal features a copper contact material with tin plating, providing excellent electrical conductivity and resistance to corrosion. Its uninsulated design facilitates effective current flow and ease of installation in tightly packed electrical assemblies.
The product measures an overall length of 14.86 mm, with an outer ring diameter of 5.16 mm and inner ring diameter of 3.02 mm, engineered for tight and efficient crimping. It operates reliably at temperatures up to 170°C, making it suitable for demanding environments.
Manufactured in the United States, this DIAMOND GRIP ring terminal complies with RoHS standards, ensuring materials used are environmentally friendly and safe for use in various countries.
Applications include automotive wiring, industrial machinery, and electrical panel connections where enduring and robust wire termination is essential. Constructed with copper contact material for excellent conductivity.
Tin plating protects against corrosion and enhances durability. Uninsulated design allows for direct contact and maximum conductivity. Overall length of 14.86 mm ensures compact installation. Supports operating temperatures up to 170°C for high-temperature environments.
Outer ring diameter of 5.16 mm and inner ring diameter of 3.02 mm for secure connections. Compliant with RoHS standards ensuring environmental safety. Suitable for industrial, automotive, and electrical wiring applications.
Explore our extensive category of Ring Terminals at EnvMart for more precision and quality connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal supports a maximum operating temperature of 170°C, making it suitable for high-temperature environments.
It is designed to accommodate wire sizes ranging from 26 AWG to 22 AWG, providing versatility in various wiring applications.
The overall length of this terminal is 14.86 mm, with an outer ring diameter of 5.16 mm and an inner ring diameter of 3.02 mm.
The contact material is copper, which ensures excellent electrical conductivity and is plated with tin to enhance corrosion resistance.
Yes, this ring terminal complies with RoHS standards, ensuring that the materials used are environmentally friendly.
It supports an M2.5 stud size, allowing for secure connections in various applications.
This model is suitable for automotive wiring, industrial machinery, and electrical panel connections, where reliable wire termination is essential.
The thickness of this terminal is 0.46 mm, which contributes to its compact design for installation in tight spaces.
The uninsulated design allows for direct contact and maximum conductivity, facilitating effective current flow in electrical assemblies.
This ring terminal is manufactured in the United States, ensuring adherence to quality standards.
The minimum wire size compatible with this terminal is 26 AWG, which is approximately 0.1 mm².
The maximum wire size compatible with this terminal is 22 AWG, which is approximately 0.4 mm².
