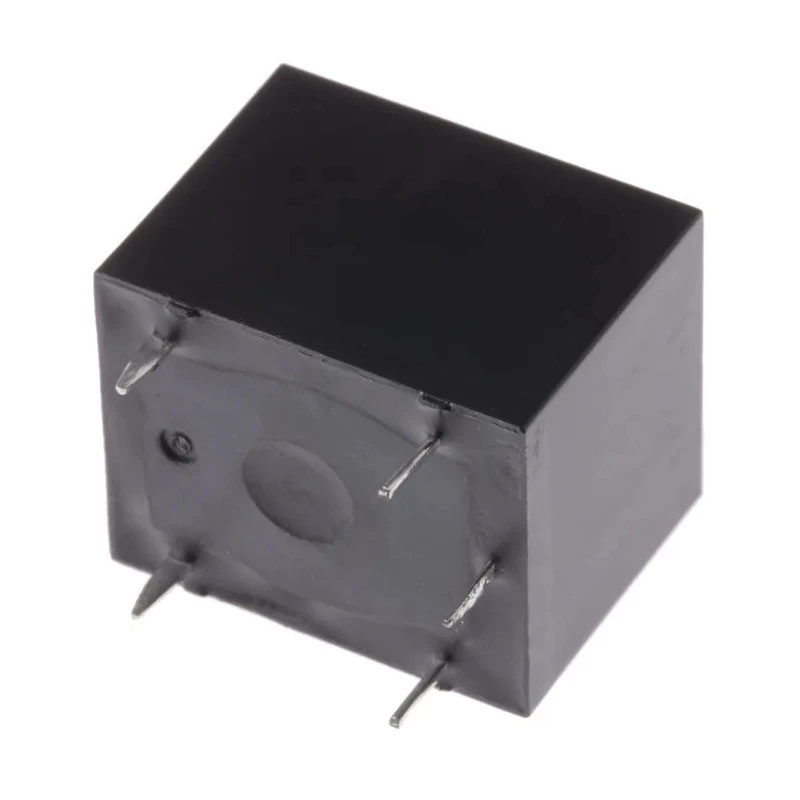

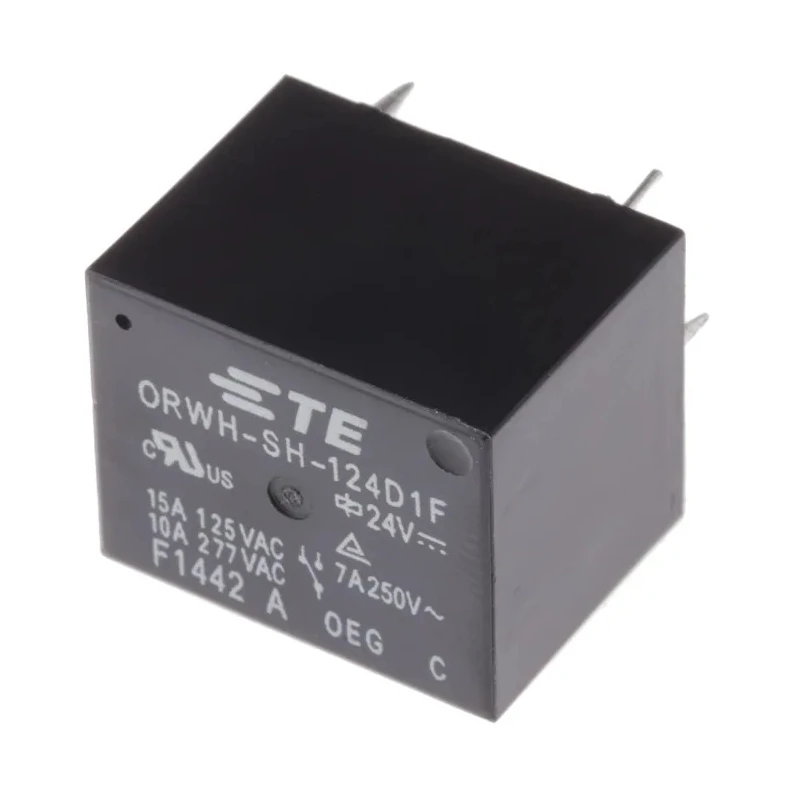

TE Connectivity ORWH Series PCB Power Relay, 24V DC Coil, 10A Switching Current, SPDT, Silver Alloy Contacts 1-1721150-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15.8mm |
| Length | 19mm |
| Width | 15.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ORWH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 28V ac |
| Coil Power | 360mW |
Key Features
- This relay features a single pole double throw (SPDT) contact configuration.
- Designed for PCB mounting with PCB pin terminals for easy integration.
- The coil resistance is 1.6kΩ, consuming 360mW coil power for efficient operation.

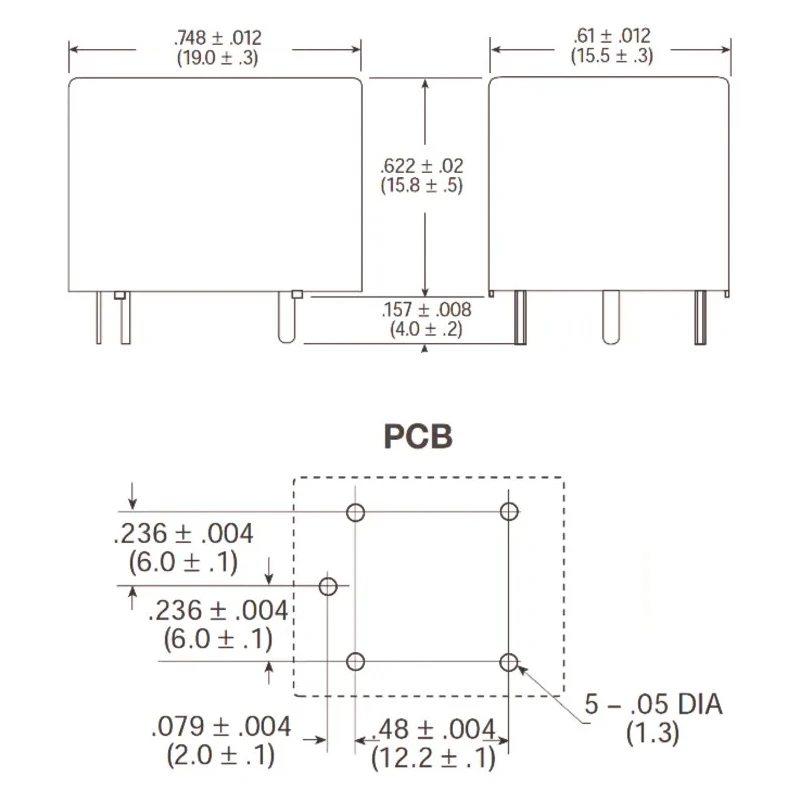

- Compact dimensions of 19mm length, 15.8mm height, and 15.5mm width enable space-saving PCB design.
- Silver alloy contacts deliver excellent conductivity and durability.
- Operates reliably within a temperature range of -30°C to 70°C.
- Suitable for switching both AC and DC loads up to 28V, allowing versatile usage.
- Compliant with RoHS standards, ensuring environmental safety.
Product Description
TE Connectivity 1-1721150-5 PCB Power Relay from the ORWH Series is a miniature electromagnetic relay designed for printed circuit board integration. It operates with a 24V DC coil voltage and supports a switching current of up to 10A, making it suitable for a variety of electrical and automation applications.
The relay features a single pole double throw (SPDT) contact configuration, enabling one changeover contact for versatile circuit control. Its compact construction with dimensions of 19mm length, 15.8mm height, and 15.5mm width allows it to fit efficiently on densely packed PCBs. The coil resistance of 1.6kΩ and coil power consumption of 360mW ensure low energy use while maintaining dependable switching performance.
Contact materials are made from silver alloy, known for their excellent electrical conductivity and resistance to wear, supporting reliable long-term operations. The relay is designed to operate in environmental conditions ranging from -30°C to 70°C, suitable for diverse industrial settings.
The TE Connectivity ORWH series relay is widely used in heating and ventilation appliances, emergency lighting systems, and other industrial automation controls requiring compact, robust, and efficient relay solutions. It supports switching voltages of 28V AC and DC, accommodating various load types safely.
This relay supports 24V DC coil operation ensuring compatibility with common control circuits. Offers a high switching current capability of 10A for demanding electrical applications. Compact size with PCB mounting and pin terminals facilitates easy assembly and integration.
Silver alloy contacts enhance durability and reduce contact wear for longevity. Operating temperature range from -30°C to 70°C enables use in harsh environments. Coil power consumption is low at 360mW, reducing overall energy usage.
Meets RoHS environmental compliance standards. Ideal for industrial, HVAC, emergency lighting, and automation system applications. Manufactured in China ensuring consistent quality and availability.
Explore EnvMart’s Electronic Components category for comprehensive solutions in relay technology from leading brands including TE Connectivity. Discover products designed for reliability and performance in industrial and automation environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 10A, making it suitable for various electrical applications.
It operates with a coil voltage of 24V DC, ensuring compatibility with common control circuits.
The relay has compact dimensions of 19mm in length, 15.8mm in height, and 15.5mm in width, allowing for efficient PCB integration.
This unit features a single pole double throw (SPDT) contact configuration, providing one changeover contact for versatile circuit control.
The coil resistance is 1.6kΩ, which contributes to its efficient operation with a coil power consumption of 360mW.
It can operate reliably within a temperature range from -30°C to 70°C, making it suitable for various industrial environments.
The contacts are made from silver alloy, known for its excellent electrical conductivity and durability.
Yes, it meets RoHS standards, ensuring environmental safety in its application.
This relay is suitable for switching both AC and DC loads up to 28V, allowing for versatile usage in various applications.
It is designed for PCB mounting with PCB pin terminals, facilitating easy integration into electronic circuits.
The relay is manufactured in China, ensuring consistent quality and availability.
It is widely used in heating and ventilation appliances, emergency lighting systems, and other industrial automation controls.
