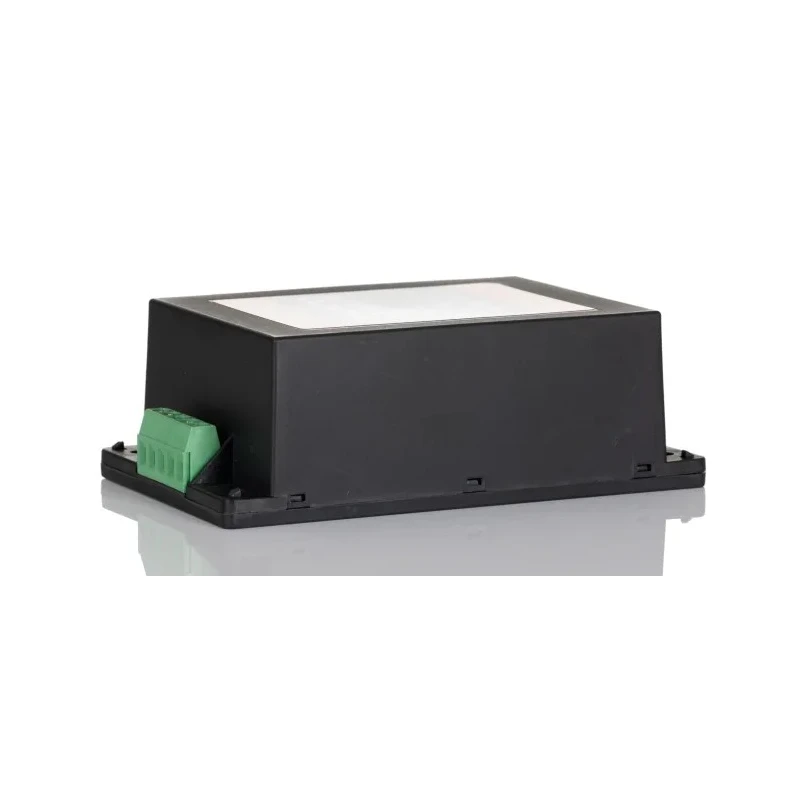

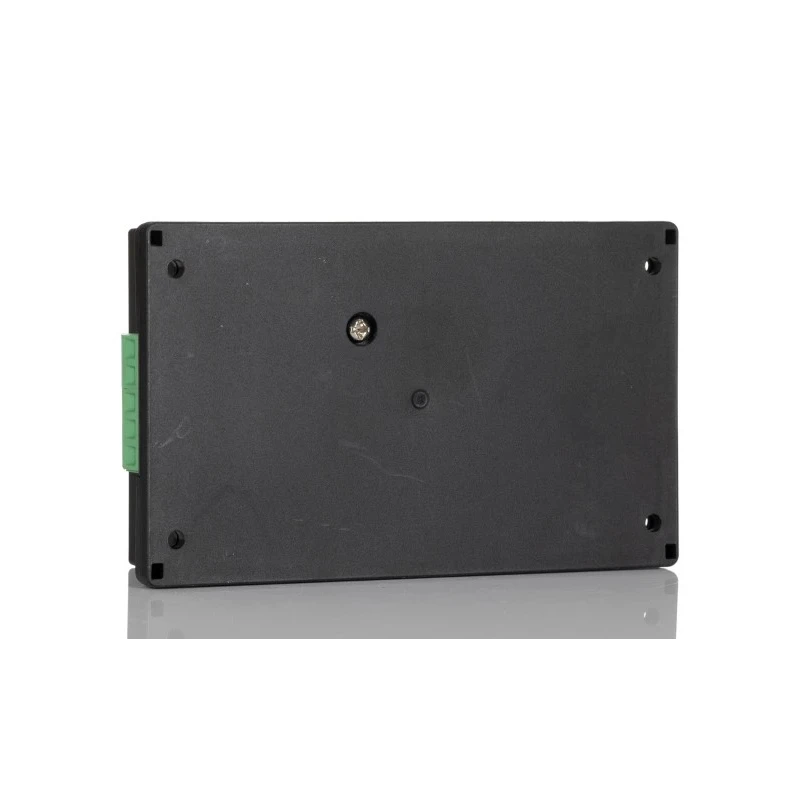

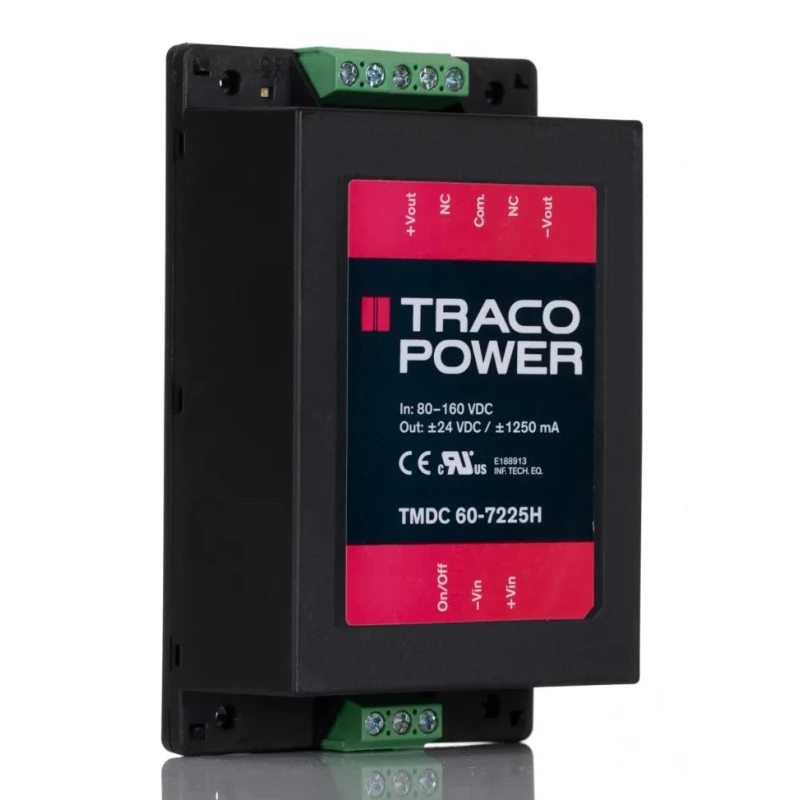

TRACOPOWER DC/DC Converter , 24V DC Output, 160V DC Max Input, 60W Power, Chassis Mount, Efficiency 88% TMDC 60-7225H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 60H DC/DC Converter, 24V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 0.88% |
| Length | 112mm |
| Model | TMDC 60-7225H |
| Depth | 38mm |
| Gross Weight | 300g |
| Width | 67.8mm |
| Mount Type | Chassis Mount |
| Series | TMDC 60H |
| Maximum Operating Temperature | 75°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 218000h |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 3kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -24V dc |
Key Features
- Features ±2% maximum voltage set accuracy for precise output regulation.
- Offers high efficiency of 88% to reduce energy loss.
- Includes integrated short-circuit and overvoltage protection to enhance reliability.
- Designed with a 3kV isolation voltage for input-output fault protection.
- Supports dual outputs suitable for complex electrical systems.
- Operates reliably between -40°C and 75°C ambient temperatures.
- Mean time between failures (MTBF) rated at 218,000 hours for dependable performance.
- Compact chassis mount form factor with dimensions 112mm x 67.8mm x 38mm.
Product Description
TRACOPOWER TMDC 60-7225H is a DC/DC Converter engineered to deliver a regulated 24V DC output from a wide 80V to 160V DC input range. Supporting a maximum output power of 60W, it is suitable for industrial, telecommunications, marine engineering, solar power, and military equipment applications.
The converter features two outputs, enabling the integration of dual electrical systems with enhanced flexibility. It offers a highly accurate voltage set point with a ±2% maximum voltage adjustment range to ensure minimal deviation in output.
Efficiency is optimized at 88%, reducing power consumption and heat generation. Electrical isolation of 3kV between input and output protects sensitive circuits against faults. The device is encapsulated in a compact chassis mount package sized 112mm length, 67.8mm width, and 38mm depth, weighing approximately 300 grams. This robust design withstands harsh operating environments within temperature ranges from -40°C to 75°C.
Additional safety features include integrated short-circuit and overvoltage protection, which fortify operational reliability under adverse conditions. The TMDC 60-7225H also boasts a high MTBF of 218,000 hours, reflecting excellent durability for continuous industrial usage.
This converter is ideal for use in industrial automation, solar power energy systems, telecommunications networks, marine and military equipment, as well as other demanding electrical installations requiring stable DC power conversion.
±2% maximum voltage set accuracy for precise output regulation. High efficiency of 88% minimizes energy loss. Integrated short-circuit and overvoltage protection enhances reliability. 3kV input-output isolation prevents electrical faults.
Dual output channels for flexible electrical system design. Wide operating temperature range from -40°C to 75°C. Robust encapsulated chassis mount design, compact and lightweight. Long MTBF of 218,000 hours for dependable service life.
Explore the category of DC/DC Converters on EnvMart for additional power conversion solutions from quality brands like TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 24V DC.
The maximum input voltage for the TMDC 60-7225H is 160V DC.
It has an efficiency rating of 88%, which helps reduce energy loss during operation.
This unit operates reliably within a temperature range of -40°C to 75°C.
The TMDC 60-7225H features two outputs, allowing for flexible electrical system design.
It provides an isolation voltage of 3kV between input and output, protecting sensitive circuits.
The dimensions of this chassis mount converter are 112mm in length, 67.8mm in width, and 38mm in depth.
The maximum output power of the TMDC 60-7225H is 60W.
It is designed for chassis mount installation.
This converter includes integrated short-circuit and overvoltage protection to enhance reliability.
The MTBF for the TMDC 60-7225H is rated at 218,000 hours, indicating dependable performance.
This model is suitable for industrial automation, telecommunications, marine engineering, and military equipment applications.
