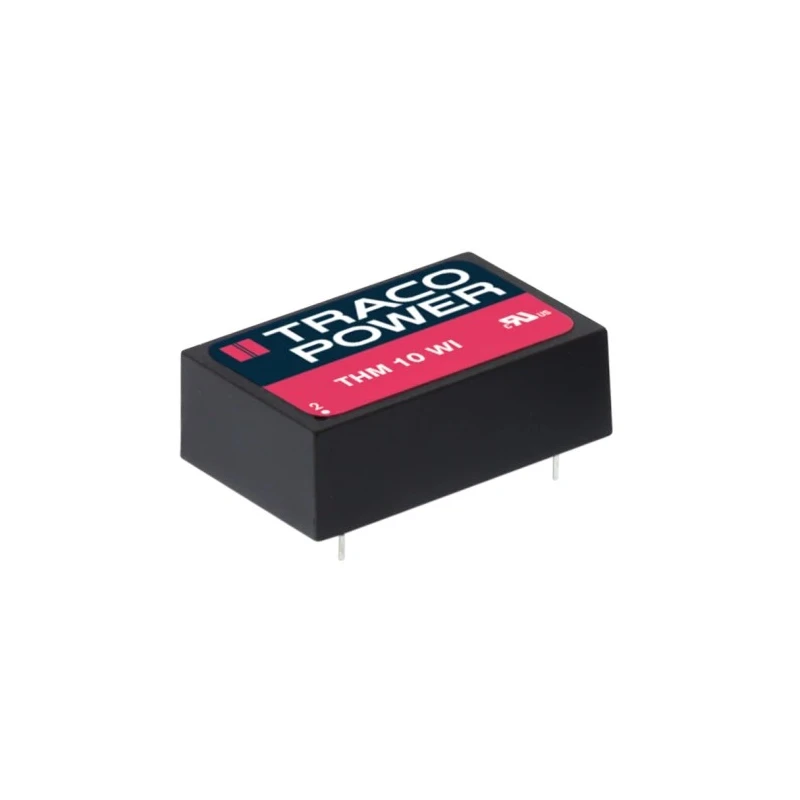

TRACOPOWER Medical 10W DC/DC Converter 9V-36V Input 12V DC 416mA Output Through Hole DIP Package THM 10-2422WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 10WI DC/DC Converter, 12V dc/ 416 m |
| Brand | TRACOPOWER |
| Efficiency | 0.89% |
| Length | 31.8mm |
| Model | THM 10-2422WI |
| Depth | 10.2mm |
| Gross Weight | 14g |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | THM 10WI |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3850000h |
| Number of outputs | 2 |
| Ripple and Noise | 40mV Pk-Pk |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
| The Traco THM 10-2422WI is a medical 10 Watt DC/DC converter with ultra-wide 4 | 1 input voltage range. It provides a very low leakage current of less than 2 μA. It constitute a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drive |
Key Features
- Dual outputs with +12V and -12V DC voltages for versatile applications.
- Low ripple and noise of 40mV peak-to-peak ensures signal quality.
- High isolation voltage of 5kV DC for safety in medical environments.
- DIP package with 7 pins for easy through hole mounting on PCBs.
- Efficient operation with 89% typical efficiency and low leakage current below 2 μA.
- Operates reliably from -40°C up to 90°C maximum temperature.
- Robust MTBF of 3,850,000 hours indicating high reliability.
- Certification compliance with IEC/EN/ES 60601-1 3rd edition and IPC-A-610 Level 3 standards.
Product Description
TRACOPOWER THM 10-2422WI is a medical-grade DC/DC converter designed for demanding industrial and medical equipment applications. It features an ultra-wide 4:1 input voltage range from 9V to 36V DC with a stable 12V DC output delivering 416mA current and 10W maximum output power. The dual outputs (+12V and -12V) provide flexible power supply options for sensitive electronics.
Constructed in a DIP package with 7 pins, it allows easy through hole mounting on printed circuit boards. The device provides excellent electrical isolation with 5kV DC isolation voltage, critical for safety in medical and transportation applications. Its low ripple and noise (40mV peak-to-peak) ensure clean power output.
This converter operates reliably over a wide temperature range from -40°C to 90°C and carries certifications to IEC/EN/ES 60601-1 3rd edition for medical safety including 2xMOPP. The robust design features low leakage current below 2 μA and high MTBF of 3,850,000 hours for long-term dependable operation. Applications include medical devices, industrial transportation, control and measurement systems, and IGBT driver power supply.
The compact size (31.8mm length, 20.3mm width, 10.2mm depth) and 14g weight make it suitable for space-constrained PCB layouts. Compliance with IPC-A-610 Level 3 acceptance criteria guarantees quality for electronic assemblies.
Wide 4:1 input voltage range from 9V to 36V DC supporting 12V output. Low leakage current below 2 μA for sensitive medical use. Dual positive and negative output voltages in a compact DIP-24 sealed plastic package. High isolation voltage of 5kV DC ensuring safety.
Reliable operation over broad temperature range -40°C to 90°C. Certification as per IEC/EN/ES 60601-1 edition for medical devices. High MTBF of 3.85 million hours for dependable operation. Compact footprint and low weight ideal for embedded systems.
Suitable for medical, transportation, control, IGBT and measurement system applications. Explore more precision DC/DC Converters and power solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER THM 10-2422WI has an ultra-wide input voltage range of 9V to 36V DC.
It delivers a maximum output power of 10W with a stable 12V DC output.
This model features dual outputs, providing both +12V and -12V DC voltages.
The typical efficiency of the THM 10-2422WI is 89%.
The converter measures 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It provides a high isolation voltage of 5kV DC, ensuring safety in medical environments.
This converter operates reliably over a temperature range from -40°C to 90°C.
The ripple and noise output is 40mV peak-to-peak, ensuring signal quality.
It is designed for through hole mounting on printed circuit boards, featuring a DIP package with 7 pins.
It complies with IEC/EN/ES 60601-1 3rd edition standards for medical devices.
The mean time between failures (MTBF) for this converter is 3,850,000 hours, indicating high reliability.
It is suitable for medical devices, industrial transportation, control and measurement systems, and IGBT driver power supplies.
