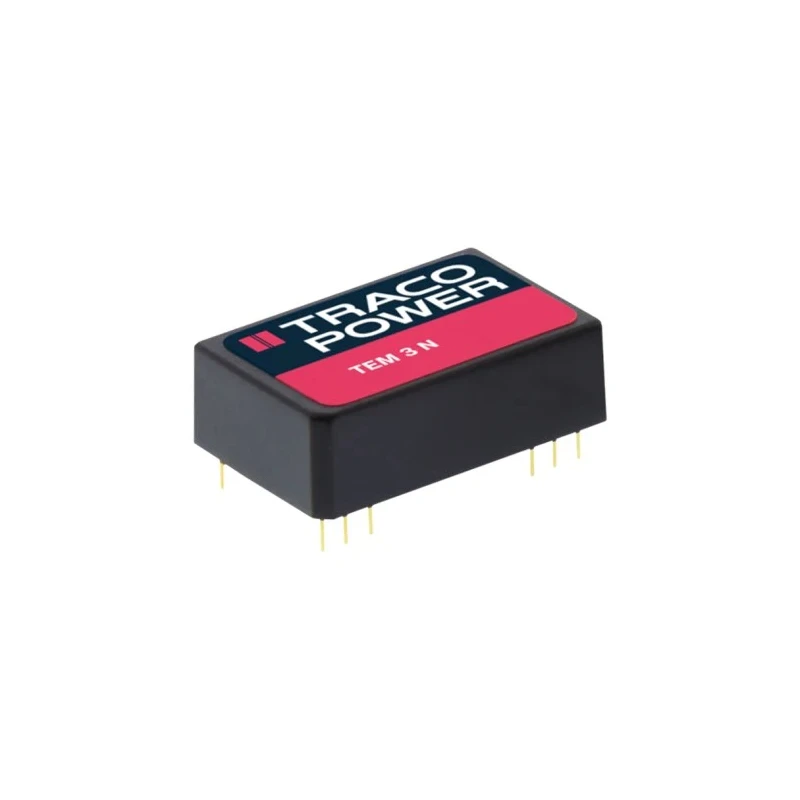

TRACOPOWER TEM 3N 3W Fully Regulated Isolated DIP-24 DC/DC Converter, 15V DC Output, 100mA, 13.2V-10.8V DC TEM 3-1223N
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEM 3N DC/DC Converter, 15V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 32mm |
| Model | TEM 3-1223N |
| Depth | 10mm |
| Mount Type | PCB |
| Series | TEM 3N |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 24 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | -15V dc |
| TRACOPOWER DC-DC ConverterBrand | Traco |
Key Features
- Fully regulated isolated DC/DC converter suitable for industrial and consumer applications.
- Operates efficiently with input voltage range from 10.8V to 13.2V DC.
- Provides two outputs including a ±15V DC output for versatile use.
- Supports continuous output power of 3 watts with short circuit protection.
- Compact DIP-24 package measuring 32mm length and 10mm depth for easy PCB mounting.
- High isolation voltage of 1.5kV DC ensures safety and noise immunity.
- Durable operation between -40°C and 80°C ambient temperature.
- Low output ripple and noise at 30 mV peak to peak for stable power supply.
Product Description
TRACOPOWER TEM 3-1223N is a highly reliable 3W fully regulated isolated DC/DC converter housed in a DIP-24 package designed for demanding industrial and consumer electronics applications.
This converter provides a stable 15V DC output at 100mA from an input voltage range of 10.8V to 13.2V DC with excellent efficiency up to 82%. It includes two output voltages with tight regulation and low noise, making it ideal for sensitive electronic circuits.
Its compact design, with dimensions of 32mm in length and 10mm in depth, allows for seamless PCB integration. The device offers a high isolation voltage of 1.5kV DC which ensures strong protection against electrical interference and safety risks.
Engineered to operate reliably over a temperature range from -40°C up to 80°C, this model comes with built-in short circuit protection and does not require a minimum load for stable operation. Its design complies with EN 60950-1 and UL60950-1 safety standards and carries CSA certification, which makes it suitable for various commercial and industrial projects.
This DC/DC converter is ideal for use in industrial power supplies, instrumentation, telecommunications, and embedded electronics requiring clean, isolated power at low wattage. It offers a cost-effective, compact solution for applications where stable DC voltage is critical.
Fully regulated isolated DC/DC converter suitable for industrial and consumer applications. Operates efficiently with input voltage range from 10.8V to 13.2V DC. Provides two outputs including a ±15V DC output for versatile use.
Supports continuous output power of 3 watts with short circuit protection. Compact DIP-24 package measuring 32mm length and 10mm depth for easy PCB mounting. High isolation voltage of 1.5kV DC ensures safety and noise immunity.
Durable operation between -40°C and 80°C ambient temperature. Low output ripple and noise at 30 mV peak to peak for stable power supply. Long mean time between failures (MTBF) of 700,000 hours ensures reliability. Conforms to industry standards including EN 60950-1 and UL60950-1 with CSA approval.
Browse the Electronics & Electricals category at EnvMart for more DC/DC Converters and power supply components from top brands including TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 10.8V to 13.2V DC.
This converter supports a maximum output power of 3 watts.
It provides two output voltages: +15V DC and -15V DC.
The efficiency rating of this DC/DC converter is up to 82%.
The isolation voltage of this model is 1.5kV DC, ensuring safety and noise immunity.
The dimensions of the DIP-24 package are 32mm in length and 10mm in depth.
It operates reliably over a temperature range from -40°C to 80°C.
This converter has two outputs.
This unit is designed for PCB mounting.
It complies with EN 60950-1 and UL60950-1 safety standards and carries CSA certification.
The mean time between failures (MTBF) for this converter is 700,000 hours.
No, it does not require a minimum load for stable operation.
