Samtec SHF Series Right Angle Surface PCB Header 20 Contacts 1.27 mm Pitch 2 Row Shrouded SHF-110-01-L-D-SM-TR

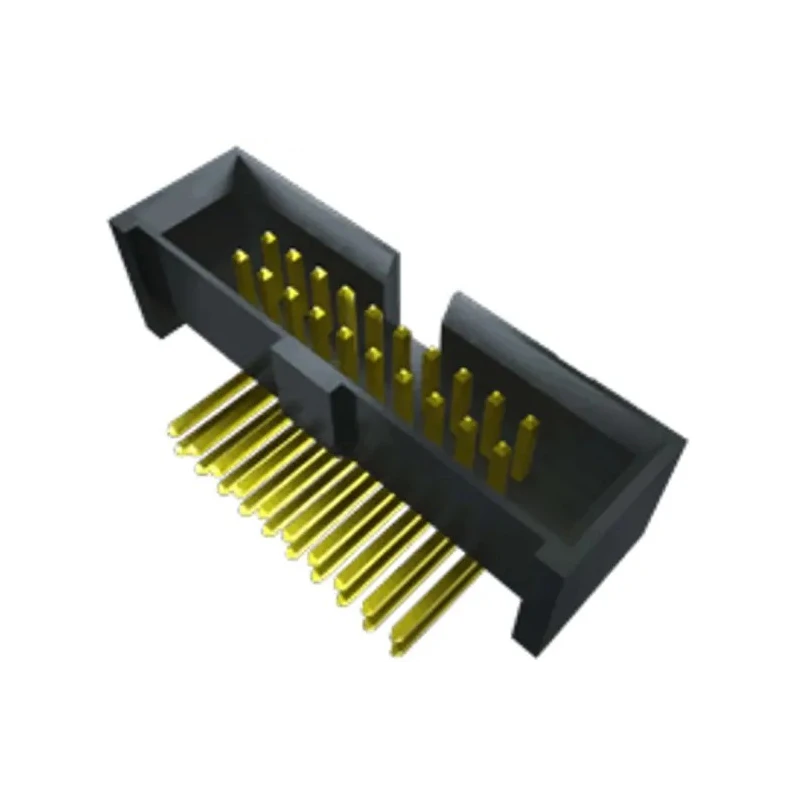

Samtec SHF-110-01-L-D-SM-TR is a shrouded, right angle surface PCB header from the SHF series featuring 20 male contacts arranged in 2 rows with a 1.27 mm pitch. The connector is designed for robust board-to-wire applications and optimized for reliable electrical performance and mechanical durability.

The housing is made from black liquid crystal polymer, known for its excellent insulating properties and thermal resistance. Contacts are manufactured from phosphor bronze and plated with silver and tin over nickel, offering superior conductivity and corrosion protection. This surface mount connector ensures a secure solder termination type for stable attachment to PCBs.

With an operating temperature range from -55°C to 125°C, it is suitable for diverse industrial, telecommunications, and commercial electronic applications. The shrouded body enhances connector protection, minimizing damage and ensuring consistent mating.

Ideal for use in industrial electronics, manufacturing equipment, and complex circuit boards, this PCB header facilitates efficient signal and power transmission. It supports compact PCB designs by its right angle orientation and reliable surface mount installation.

Features 20 male contacts arranged in 2 rows for efficient circuit interfacing. 1.27 mm pitch ensures precise connector spacing for standard PCB layouts. Constructed with a liquid crystal polymer housing for reliable insulation and mechanical stability.

Phosphor bronze contact material with silver and tin plating provides excellent conductivity and corrosion resistance. Right angle orientation facilitates compact PCB design and optimized wiring. The shrouded design offers enhanced protection and reliable mating.

Surface mount type suited for standard PCB assembly processes. Operational temperature range from -55°C to 125°C suitable for varied environments. Termination type is solder ensuring secure electrical and mechanical connection.

Compliance with RoHS standards promotes environmental safety.

Samtec PCB Headers are recognized for quality and precision in electronics assembly. Explore related PCB connectors and components in the Electronics & Electricals category at EnvMart for comprehensive solutions.
