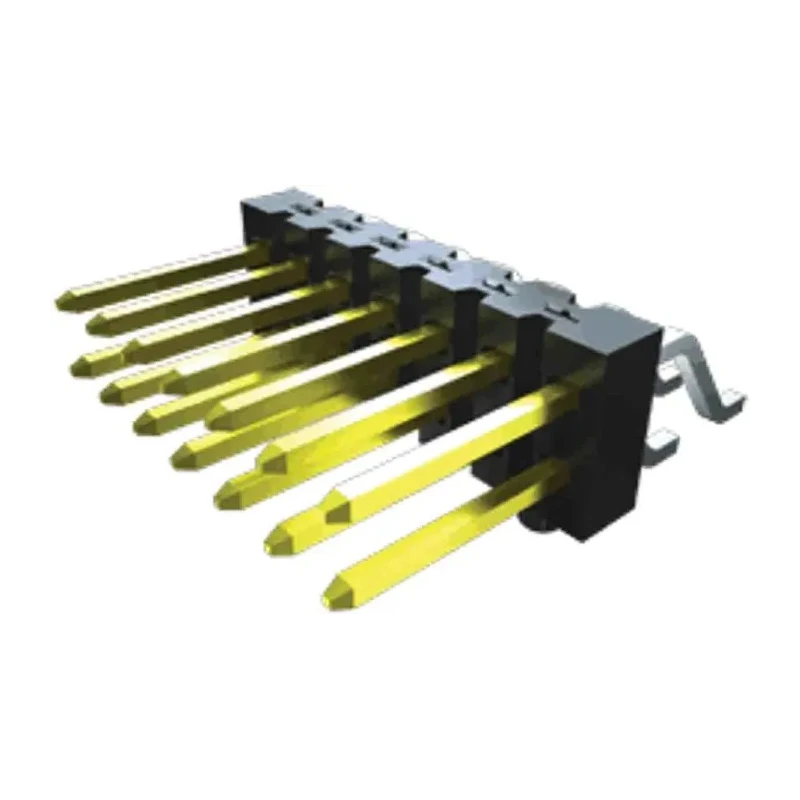

Samtec TSM Series Vertical Surface Pin Header 26 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-113-01-L-DV-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Vertical |
| Model | TSM-113-01-L-DV-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Plating used | Au or Sn over 50 μ" (1.27 μm) Ni |
Key Features
- Features 2.54 mm pitch and two rows for compact PCB interfacing.
- Constructed with phosphor bronze contacts plated in gold or tin for durability.
- Housing made of black liquid crystal polymer ensures insulation and heat resistance.
- Unshrouded design enables flexible mating with compatible connectors.
- Surface mount type suitable for vertical orientation on PCBs.
- Rated for a voltage of 475V, supporting high electrical demands.
- Operation temperature range from -55°C to 125°C provides wide environmental tolerance.
- Termination via soldering ensures secure electrical and mechanical connection.
Product Description
Samtec TSM-113-01-L-DV-LC is a vertical surface mount pin header designed for electronic applications requiring reliable board-to-board connections. It features 26 male contacts arranged in 2 rows with a 2.54 mm pitch, offering compact and efficient PCB interfacing suitable for industrial and commercial electronics.
The housing is manufactured from black liquid crystal polymer, providing excellent insulating properties and mechanical strength. Contacts are made of phosphor bronze and plated with either gold or tin over a 50 microinch (1.27 micrometer) nickel underlayer, ensuring superior electrical conductivity and corrosion resistance.
This unshrouded connector facilitates versatile mating with various connecting components, ideal for use in telecommunications, computing, instrumentation, and industrial control systems. The connector supports continuous operation in temperatures ranging from -55°C to 125°C, making it suitable for harsh environments.
Rated at 475 volts, it meets demanding electrical specifications. The solder termination type enables a durable attachment to PCB pads, enhancing mechanical stability and electrical performance.
The Samtec TSM series adheres to RoHS compliance, reflecting environmentally responsible manufacturing. Ideal for industrial, laboratory, and manufacturing electronic assemblies, this pin header supports precision and reliability in critical applications.
Features 2.54 mm pitch and 2 rows of contacts. Contact material phosphor bronze with gold or tin plating. Black liquid crystal polymer housing for insulation. Vertical orientation and surface mount design. Unshrouded male contact type.
Voltage rating of 475 volts. Operating temperature range from -55°C to 125°C. Solder termination type for secure mounting. RoHS compliant manufacturing process. Explore more in the Electronics Components category at EnvMart for compatible and complementary PCB connectors and headers.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating is 475 volts, making it suitable for high electrical demands.
It operates within a temperature range of -55°C to 125°C, allowing for use in various environmental conditions.
This pin header features 26 male contacts arranged in 2 rows.
The pitch size of the contacts is 2.54 mm, facilitating compact PCB interfacing.
The contacts are made of phosphor bronze and are plated with either gold or tin, while the housing is constructed from black liquid crystal polymer.
It uses solder termination, ensuring a secure electrical and mechanical connection to PCB pads.
Yes, it adheres to RoHS compliance, reflecting environmentally responsible manufacturing practices.
This model has a vertical orientation and is designed for surface mounting on PCBs.
The contacts are unshrouded, allowing for flexible mating with compatible connectors.
It is ideal for use in telecommunications, computing, instrumentation, and industrial control systems.
The country of origin for the Samtec TSM-113-01-L-DV-LC is India.
The contacts are plated with gold or tin over a nickel underlayer, enhancing electrical conductivity and corrosion resistance.
