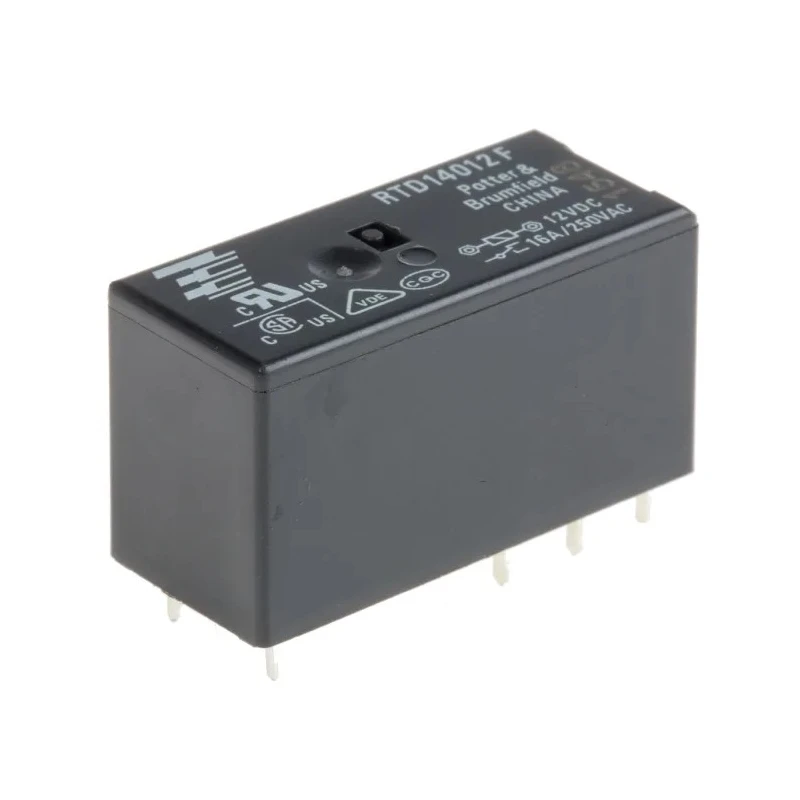

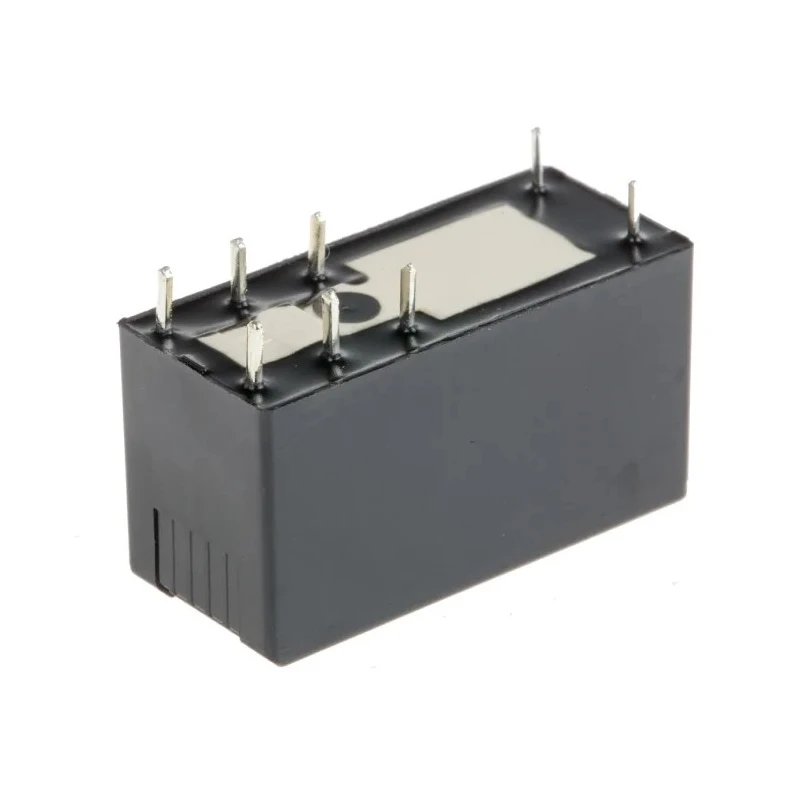

TE Connectivity Socket Power Relay 12V DC Coil 16A Switching Current SPDT RTD14012F
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD14012F |
| Width | 12.7mm |
| Mount Type | Socket |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, UL, UR |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- Operates at a coil voltage of 12V DC for efficient switching.
- Single Pole Double Throw (SPDT) contact configuration provides versatile switching capabilities.
- Socket mount type suitable for through hole PCB installation.
- Supports a switching current of 16 amps for high load applications.
- Constructed with silver alloy contact material ensuring durability and low resistance.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for PCB integration.
- Wide operating temperature range from -45°C up to 85°C for harsh environments.
- Coil resistance value of 360Ω and coil power of 400mW ensures low power consumption.
Product Description
TE Connectivity RTD14012F Socket Power Relay features a 12V DC coil voltage and supports a high switching current of 16 amps with an SPDT contact configuration. This relay is designed for PCB through hole mounting using a socket type. Its compact form factor with dimensions 29mm (L) x 12.7mm (W) x 15.7mm (H) allows easy integration into various electrical and automation systems.
The relay coil offers a resistance of 360Ω and a power consumption of only 400mW, making it energy efficient. It can operate reliably across a broad temperature range from -45°C to 85°C, suitable for demanding industrial and domestic environments. Silver alloy contacts provide excellent conductivity and durability, ensuring long-term stable performance.
This RT1 series relay from TE Connectivity comes with recognized international approvals including CSA, UL, and UR certifications, adhering to stringent quality and safety standards.
Typical applications of the RTD14012F include interface circuits, automation systems, domestic appliances, security lighting, and heating control where dependable power switching is critical.
Operates at a coil voltage of 12V DC for efficient switching. Single Pole Double Throw (SPDT) contact configuration provides versatile switching capabilities. Socket mount type suitable for through hole PCB installation.
Supports a switching current of 16 amperes for high load applications. Constructed with silver alloy contact material ensuring durability and low resistance. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for PCB integration.
Wide operating temperature range from -45°C up to 85°C for harsh environments. Coil resistance value of 360Ω and coil power of 400mW ensures low power consumption. Complies with international safety approvals CSA, UL, and UR for quality assurance.
Designed for use in automation, domestic, security lighting, and heating control systems. Explore more products in the Power Relay category for industrial and automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of 16 amps.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance value is 360Ω.
The coil power consumption is 400mW.
It operates reliably within a temperature range from -45°C to 85°C.
The contacts are constructed from silver alloy, ensuring low resistance and durability.
This model is designed for socket mounting suitable for through hole PCB installation.
It complies with CSA, UL, and UR standards for quality assurance.
Typical applications include interface circuits, automation systems, domestic appliances, security lighting, and heating control.
The maximum switching AC voltage is 400V AC.
