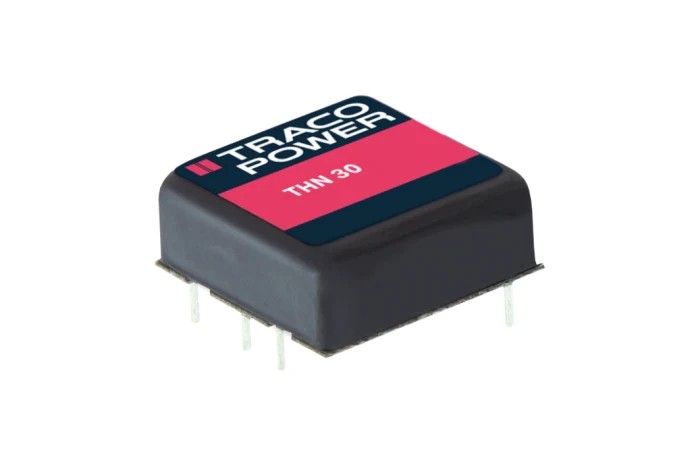

TRACOPOWER DC/DC Converter , 12V DC Output, 2.5A, 18V DC Max Input, 9V Min Input, 30W, PCB Mount, Metal Case THN 30-1212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 30 DC/DC Converter, 12V dc/ 2 |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 25.4mm |
| Model | THN 30-1212 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | THN 30 |
| Maximum Operating Temperature | 80°C |
| Package Type | Shielded Metal Case with Isolated Baseplate |
| Minimum Operating Temperature | -40°C |
| MTBF | 1300000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 2.5A |
| Output Voltage Adjustment Range | 10.8/13.2 V dc |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- High efficiency up to 89% across the full load range.
- Compact design measuring 25.4mm length, 25.4mm width, and 9.9mm depth.
- Operates reliably in temperatures from -40°C up to 80°C.
- Features I/O isolation voltage of 1.5kV DC for enhanced safety.
- Equipped with remote On/Off control functionality.
- Suitable for mobile equipment, instrumentation, and industrial electronics applications.
- Metal case with isolated baseplate ensures durable PCB mount.
- Output voltage adjustable within 10.8 to 13.2 V DC range.
Product Description
TRACOPOWER THN 30-1212 DC/DC Converter is a high-performance power supply component designed to provide regulated 12V DC output at 2.5A current with a maximum output power of 30W. It accepts a wide DC input range from 9V to 18V, making it versatile for various electronic applications.
Encased in a durable shielded metal case with an isolated baseplate, this PCB-mountable converter measures a compact 25.4mm by 25.4mm footprint and 9.9mm depth. It features a 6-pin configuration and provides an isolation voltage of 1500 V DC for enhanced electrical safety and reliability.
With an efficiency rating of 89%, it operates effectively across its full power range, supporting temperatures from -40°C to 80°C, with capability to reach 85°C when used with a heat-sink. The converter includes remote On/Off control and an output voltage adjustable between 10.8V and 13.2V DC, enabling precise regulation for sensitive circuits.
This product is ideal for industrial, communication, mobile equipment, instrumentation, and distributed power architectures where space constraints on the PCB exist. Its ultra-low no-load input current helps conserve energy, making it well suited for battery-powered systems.
High efficiency of 89% ensures low power loss. Compact shielded metal package with isolated baseplate for PCB mounting. Wide 2:1 input voltage range from 9V to 18V DC. Operating temperature range from -40°C to 80°C. 1.5kV DC I/O isolation voltage enhances electrical safety.
Output voltage adjustable between 10.8V and 13.2V DC. Remote On/Off control capability for system integration. Low no-load input current for battery-operated devices. Six-pin configuration for easy PCB installation. Originates from Taiwan, Province Of China.
Explore the TRACOPOWER THN 30 Series to find reliable DC/DC Converters tailored for demanding power supply applications. Browse the Electronics & Electricals category in EnvMart for more industrial power conversion solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 30W.
It accepts a wide DC input voltage range from 9V to 18V.
This unit measures 25.4mm in length, 25.4mm in width, and 9.9mm in depth.
It has an efficiency rating of up to 89% across the full load range.
The output voltage is adjustable between 10.8V and 13.2V DC.
It features an isolation voltage of 1.5kV DC for enhanced safety.
This converter operates reliably in temperatures from -40°C to 80°C.
It is designed for PCB mounting.
Yes, it is equipped with remote On/Off control functionality.
This model provides one output.
The MTBF for this converter is 1,300,000 hours.
It originates from Taiwan, Province Of China.
