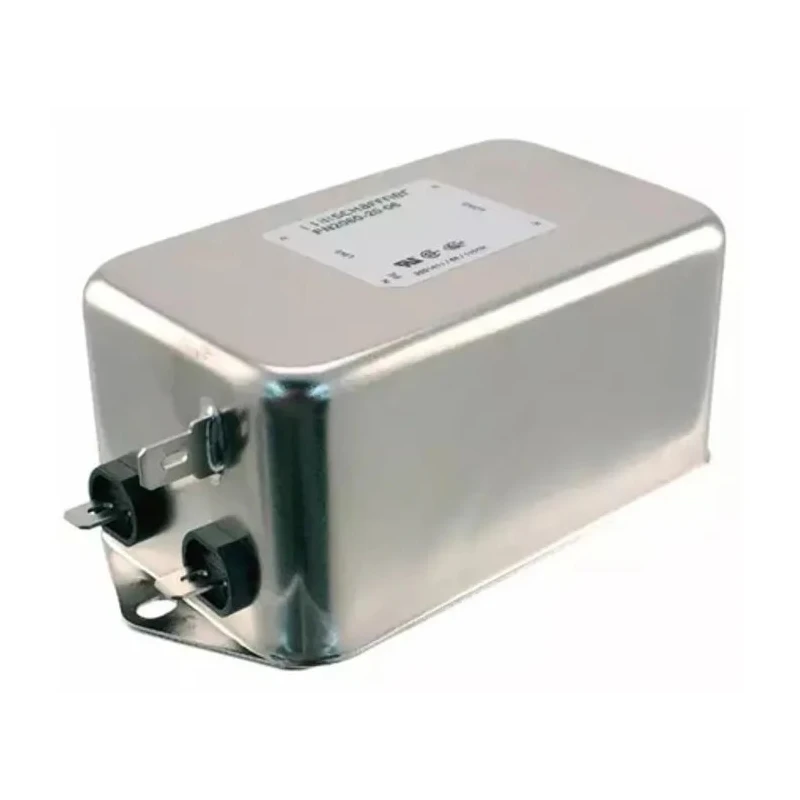

Schaffner Chassis Mount EMI Filter 20 A 250V AC/DC 400Hz Fast-On 1 Phase FN2060
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 57.5mm |
| Length | 113.5mm |
| Model | FN2060 |
| Depth | 45.4mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2060 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 600μH |
| Termination Style | Fast-On |
Key Features
- Two-stage filter design provides enhanced attenuation performance.
- Features fast-on termination for quick and secure connection.
- Constructed in robust aluminium case for durability.
- Operating temperature range from -25°C to 100°C for varied environments.
- Low leakage current of 734 μA for efficient operation.
- Compact dimensions of 113.5mm length, 57.5mm height, and 45.4mm depth.
- Suitable for electrical, industrial, medical, and building automation applications.
Product Description
Schaffner FN2060 series chassis mount EMI filter is engineered for high-performance suppression of conducted interference. Rated for a maximum current of 20 A and compatible with voltages up to 250V AC/DC at a frequency of 400Hz, this filter uses a two-stage design with an extra stage to enhance common mode noise attenuation, making it suitable for sensitive electronic equipment.
The robust aluminium enclosure ensures mechanical resilience and optimal thermal behavior, while the fast-on termination style facilitates easy and secure installation on chassis mounts. Operating reliably in temperatures ranging from -25°C to 100°C, the filter features a low leakage current of 734 microamperes to maintain efficiency and safety.
Compact in size at 113.5mm length, 57.5mm height, and 45.4mm depth, the FN2060 filter is ideal for a broad range of applications including electrical and electronic devices, industrial machinery, building automation systems, and medical equipment where EMI suppression is critical.
Two-stage chassis mount filter design for superior noise attenuation. Fast-on 0.25 inch terminal connection ensures quick installation. High saturation resistance chokes enhance performance. Wide application range covering industrial, medical, and automation fields.
Dimensions optimized for space-limited installations. Temperature tolerance supports diverse operating environments. Low leakage current improves safety and compliance. The Schaffner FN2060 is designed to meet the demanding requirements of modern EMI Filtering and is part of Schaffner’s comprehensive EMI solutions portfolio.
Explore more power line filters and EMI solutions from Schaffner on EnvMart for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2060 EMI filter has a maximum current rating of 20 A.
This model is compatible with voltages up to 250V AC/DC.
The FN2060 operates at an frequency of 400Hz.
The operating temperature range for the FN2060 is from -25°C to 100°C.
The dimensions of this unit are 113.5mm in length, 57.5mm in height, and 45.4mm in depth.
It features a Fast-On termination style for quick and secure connections.
The leakage current for this model is 734 μA.
This filter has a two-stage design for enhanced noise attenuation.
The FN2060 is constructed in a robust aluminium case for durability.
It is suitable for electrical, industrial, medical, and building automation applications.
The inductance value for this model is 600 μH.
The capacitance of this unit is 4.7 nF.
