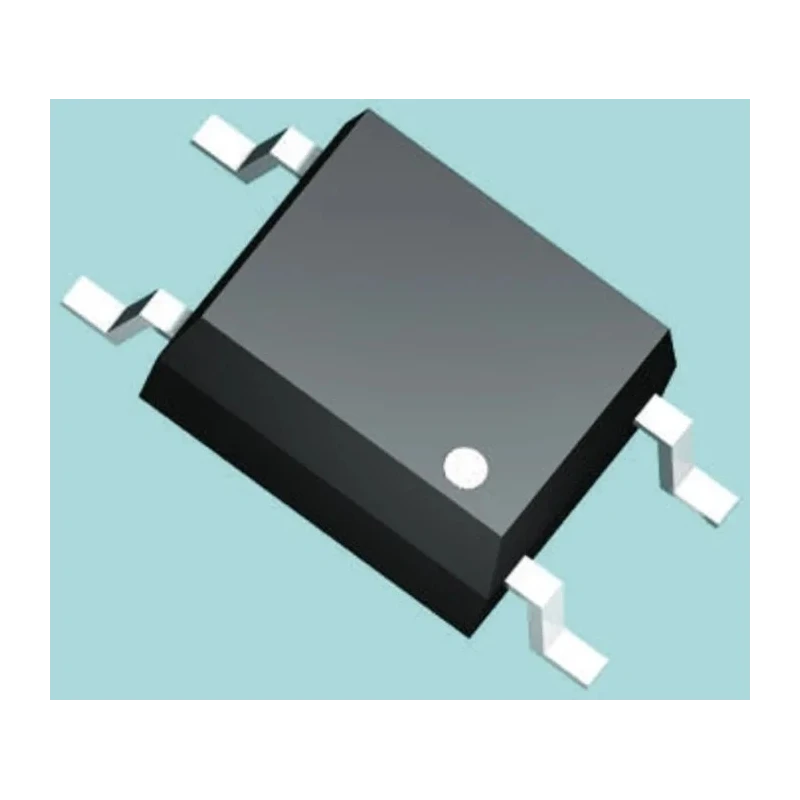

Vishay DC Input Surface Mount Optocoupler 4-Pin SOP Package VOM617A-2X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOM617A-2X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VOM |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 7μs |
| Maximum Current Transfer Ratio | 125% |
| Typical Fall Time | 12μs |
| Minimum Current Transfer Ratio | 63% |
Key Features
- This optocoupler features a maximum forward voltage of 1.6V for the input diode.
- It provides high isolation voltage up to 3750 Vrms ensuring protection against voltage spikes.
- The package contains a single channel with a phototransistor output, suitable for low input current applications.
- Typical rise and fall times are 7μs and 12μs respectively, supporting fast signal switching.
- Operating temperature range spans from -55°C to 110°C enabling robust performance in harsh environments.
- The device supports a maximum input current of 60mA with a guaranteed current transfer ratio between 63% and 125%.
- It is supplied in tape and reel packaging optimized for automated assembly processes.
- Standards compliance includes EN and UL certifications ensuring product quality and safety.
Product Description
Vishay VOM617A-2X001T is a DC input optocoupler designed with a 4-pin SOP surface mount package delivering high electrical isolation of up to 3750 Vrms. This device incorporates a phototransistor output to protect electronic equipment and microprocessors from voltage spikes and electrical shocks.
Its low input current feature along with a maximum forward voltage of 1.6V allows efficient signal transmission in compact electronic circuits. The optocoupler operates reliably across a wide temperature range from -55°C up to 110°C, making it suitable for various industrial and commercial applications.
The series ensures typical rise and fall times of 7μs and 12μs enhancing response in switching applications. Supplied in tape and reel packaging, it facilitates efficient automated PCB assembly processes.
VOM617A-2X001T is extensively used in isolation for AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom infrastructure, smart metering devices, office equipment, power on internet, and solar systems.
This optocoupler provides exceptional electrical isolation protecting users and sensitive components from electrical hazards. High current transfer ratio guarantees effective signal relay ensuring accurate system control.
Surface mount SOP package enhances compactness and ease of integration into electronic assemblies. Compliance with EN and UL standards confirms product reliability and industry acceptance. Designed for industrial and commercial electronics requiring robust optoelectronic isolation solutions.
Explore Vishay Optocouplers on EnvMart for advanced electrical isolation components tailored to industrial electronics, telecom, and automation industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.6V.
It provides a high isolation voltage of up to 3750 Vrms, ensuring protection against voltage spikes.
The operating temperature range spans from -55°C to 110°C, allowing it to perform in harsh environments.
The typical rise time is 7μs and the typical fall time is 12μs, supporting fast signal switching.
The maximum input current supported by this model is 60mA.
It is supplied in tape and reel packaging, which is optimized for automated assembly processes.
This optocoupler contains a single channel with a phototransistor output.
It complies with EN and UL standards, ensuring product quality and safety.
The guaranteed current transfer ratio ranges between 63% and 125%.
This model features a surface mount design, suitable for compact electronic circuits.
It is extensively used in isolation for applications such as AC adapters, switch mode power supplies, and industrial controls.
The package type is SOP, which enhances compactness and ease of integration into electronic assemblies.
