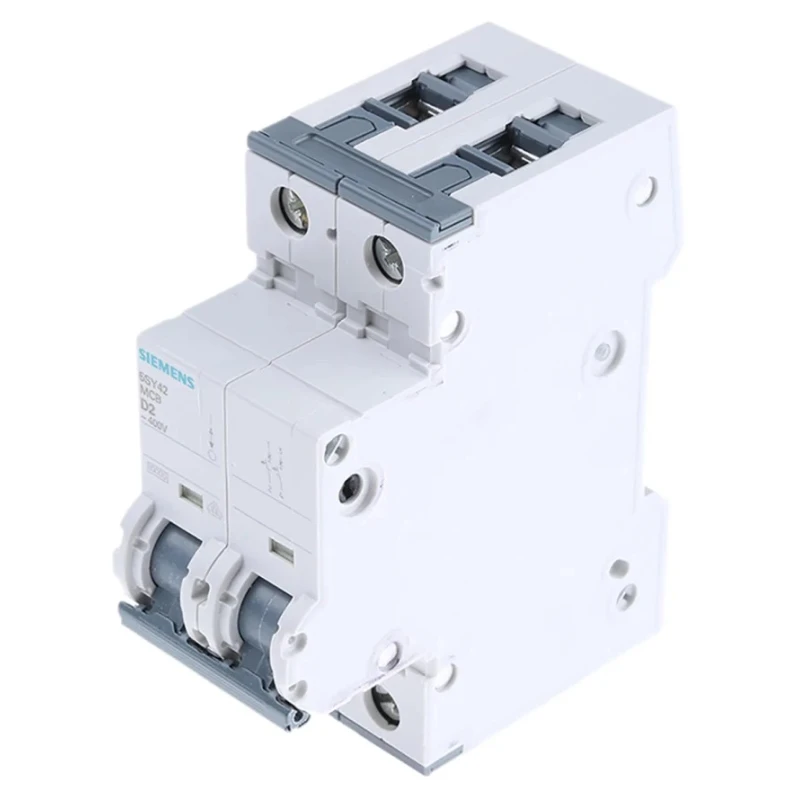

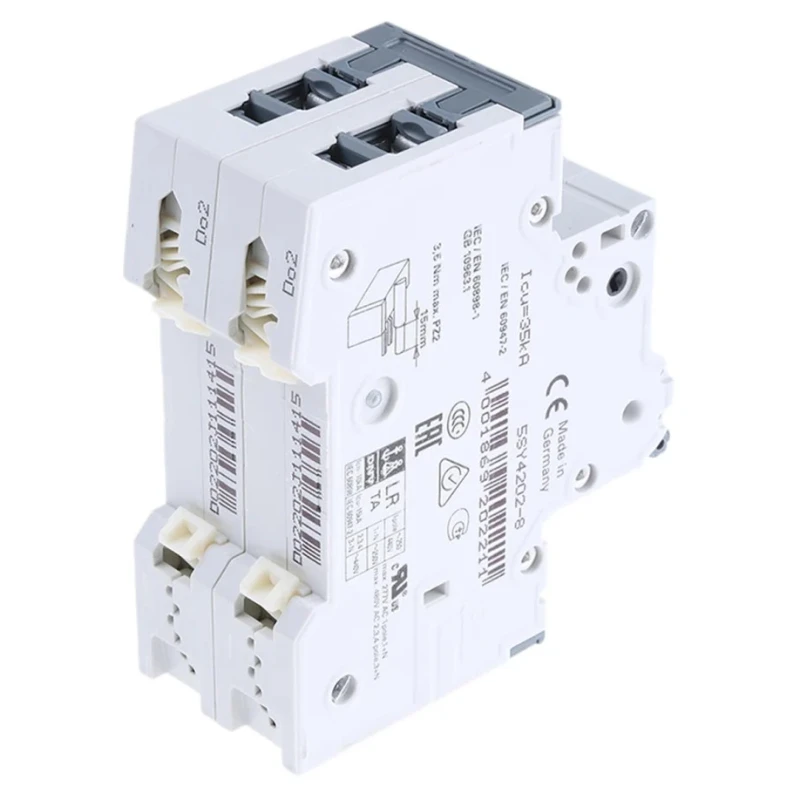

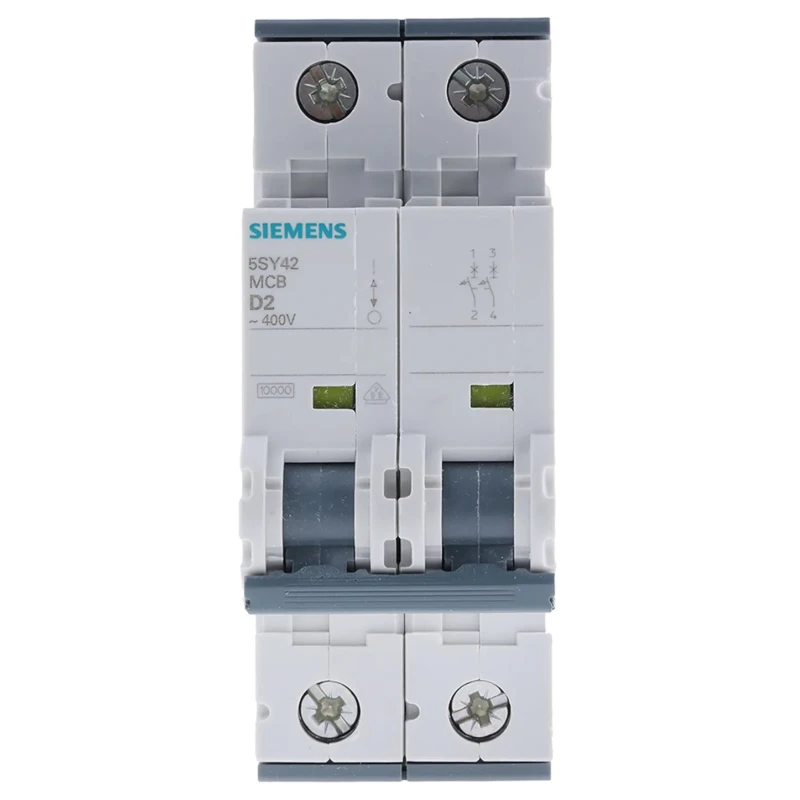

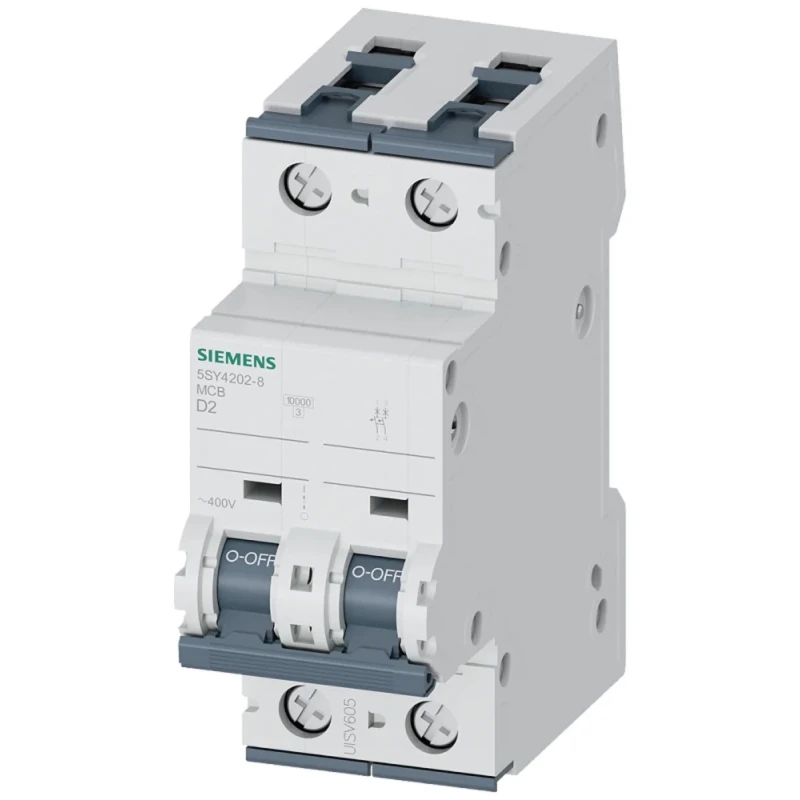

Siemens SENTRON Miniature Circuit Breaker 2-Pole 2A Type D 440V AC 60V DC 10 kA Breaking Capacity 5SY4202-8
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4202-8 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | 5SY4 |
| Terminal type | Combined Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Extended Product Life |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact design for easy DIN rail mounting in panels.
- Type D tripping characteristic ensures reliable circuit protection.
- Rated for 440V AC and 60V DC electrical systems.
- 10 kA breaking capacity for handling high fault currents safely.
- Toggle switch reset actuator for straightforward operation.
- Halogen-free and silicon-free materials promote safety and eco-friendliness.
- Can be mounted in any position, providing installation flexibility.
- Supports conductor cross-sections from 0.75mm² to 35mm².
Product Description
Siemens 5SY4202-8 SENTRON Miniature Circuit Breaker is a 2-pole electrical protection device designed for industrial, automation, residential, and electrical control panel applications. Rated for 2A current, this MCB features Type D tripping characteristics suitable for inductive loads, motors, and circuits with high inrush currents.
The circuit breaker supports a rated AC voltage of 440V and a DC voltage of 60V, providing versatile usage across various electrical systems. Its compact, 90mm length design enables easy installation on standard DIN rails with a combined terminal type that accepts conductors sized from 0.75mm² to 35mm².
With a breaking capacity of 10 kA, the device reliably clears fault currents, ensuring circuit safety and integrity. The toggle switch reset actuator allows for intuitive operation and maintenance.
The product is manufactured with halogen-free and silicon-free materials, enhancing environmental safety and compliance. It achieves a mechanical service life rated for 10,000 cycles, emphasizing durability and long-term reliability.
This MCB is optimal for use in automation systems requiring efficient power management, industrial motor control, switchgear assemblies, and residential installations demanding dependable overcurrent protection.
Compact DIN rail mount design enables swift installation. Type D trip curve ideal for motors and high inrush current circuits. Rated for 440V AC and 60V DC for broad application scope. 10 kA short circuit breaking capacity enhances safety.
Environmental safety with halogen and silicon-free construction. Endurance of 10,000 mechanical cycles ensures extended service life. Flexible mounting positions accommodate diverse installations. Terminal supports solid and stranded conductors from 0.75mm² to 35mm².
Explore Siemens SENTRON Miniature Circuit Breakers to secure your electrical installations with proven quality and compliance in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2A, making it suitable for low current applications.
It features a breaking capacity of 10 kA, which allows it to handle high fault currents effectively.
The device is rated for 440V AC and 60V DC, providing versatility for various electrical systems.
The dimensions are 90mm in height, 76mm in depth, and 36mm in width, making it compact for installation.
It is designed for DIN rail mounting, allowing for easy installation in panels.
This circuit breaker features Type D tripping characteristics, which are suitable for inductive loads and circuits with high inrush currents.
It supports conductor cross-sections ranging from 0.75mm² to 35mm², allowing for flexibility in installation.
The IP rating is IP20, indicating protection against solid objects larger than 12mm, but not against water.
It features a toggle switch reset actuator, which allows for straightforward operation and maintenance.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards, ensuring it meets safety and performance requirements.
The Siemens SENTRON Miniature Circuit Breaker is manufactured in Germany.
It has a mechanical service life rated for 10,000 cycles, indicating its capability for long-term use.
