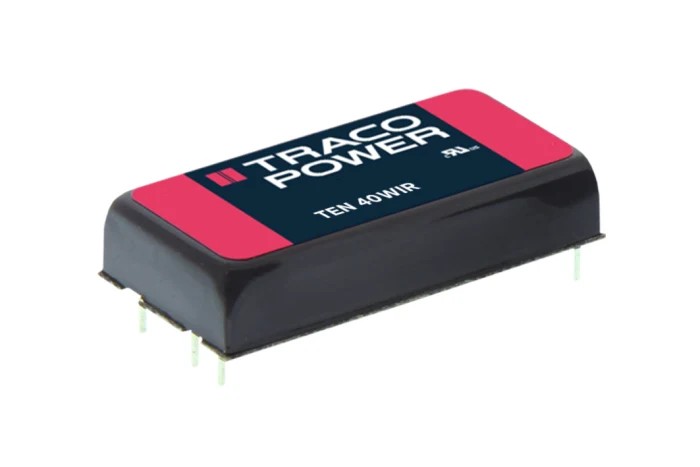

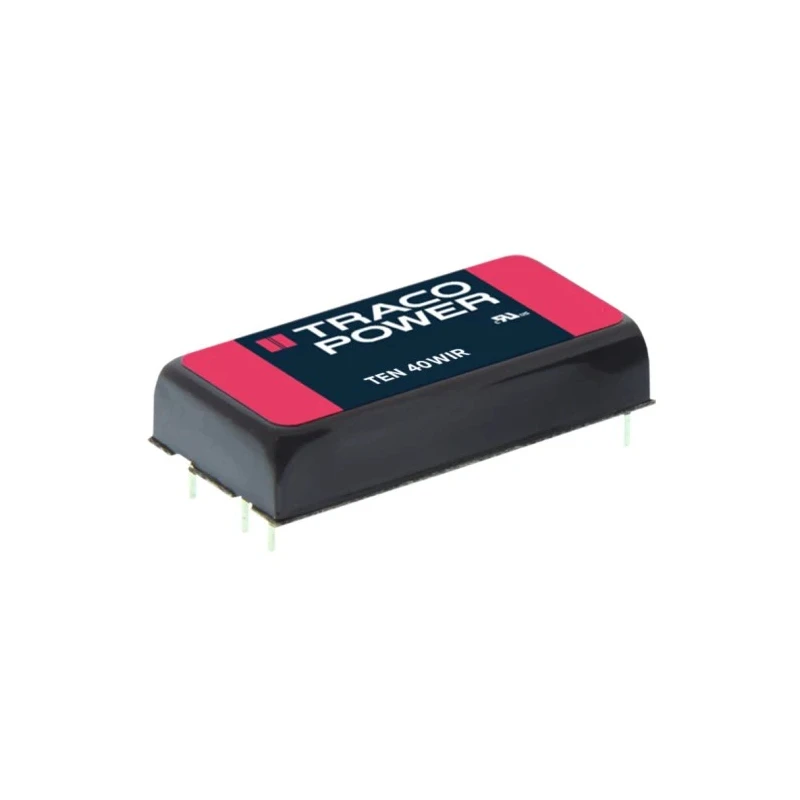

TRACOPOWER 40W Single Output Regulated Isolated DC/DC Converter PCB Mount, 15V DC, 2.666A, Input 9V-36V TEN 40-2413WIR

TRACOPOWER TEN 40-2413WIR is a high-performance 40W DC/DC converter designed for single output regulated and isolated power conversion on a PCB mount. It operates with a wide input voltage range from 9V to 36V, delivering a stable 15V DC output voltage at 2.666 A. The metal casing measures 50.8 mm in length, 25.4 mm in width, and 10.2 mm in depth, making it compact and suitable for installation in space-constrained environments.

This converter boasts a high efficiency of 91%, minimizing energy losses and heat generation, which is critical for industrial and telecom applications. Rated to work reliably in extreme temperature conditions ranging from -40°C to 85°C, it is tested for thermal shock and vibration resistance, ensuring robust performance in harsh operating environments.

The device includes essential protective features such as remote On/Off control, over voltage protection, under voltage lockout, and short circuit protection for safe and reliable operations. It has an input ratio of 1:6 and comes with six pins to facilitate PCB mounting. The isolation voltage rating is 1.6 kV DC, providing high voltage insulation for sensitive electronics.

Typical use cases for the TEN 40-2413WIR include wireless networking equipment, telecommunications, datacom systems, industrial automation control, and various measurement devices requiring reliable DC power supply. This equipment supports a lead-free construction and meets RoHS compliance, reflecting commitment to environmental standards.

The converter is backed by a 3-year product warranty and manufactured under stringent quality standards in Taiwan, Province of China. Operates with 15V DC output voltage at 2.666 A output current. Wide input voltage range from 9V to 36V DC.

Compact metal package dimensions: 50.8x25.4x10.2 mm. High efficiency of 91% ensures power savings. Functions under temperature range of -40°C to 85°C. Equipped with over voltage, under voltage, and short circuit protection.

Remote On/Off functionality for flexible control. Isolation voltage of 1.6 kV DC enhances safety. Lead-free, RoHS compliant design. Ideal for industrial, telecom, wireless, and measurement applications. Explore a wide range of DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
