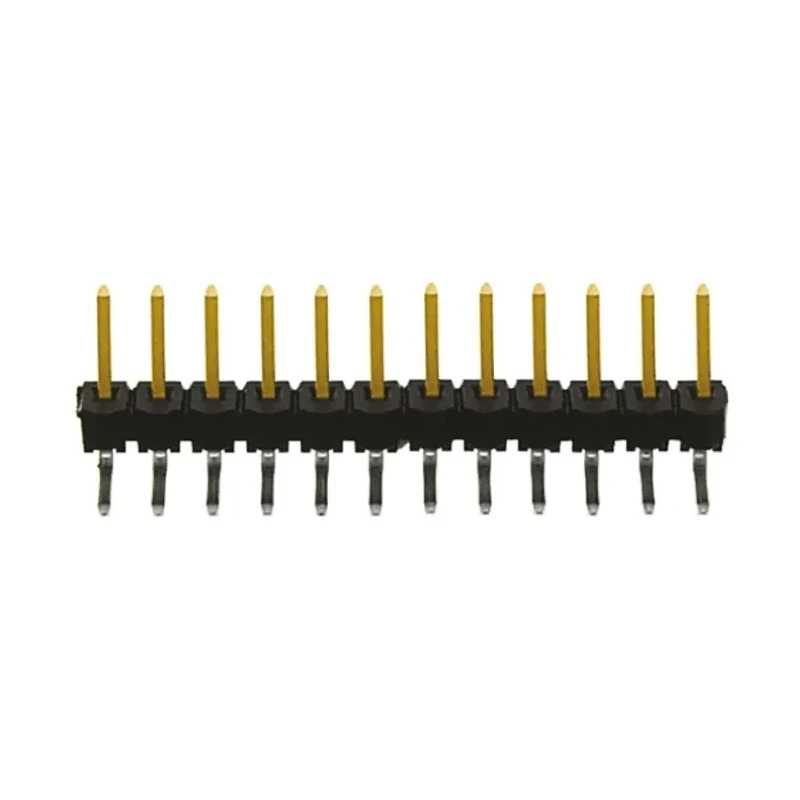

Samtec TSW Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSW-112-08-L-S-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 7.6A |
| Model | TSW-112-08-L-S-RA |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.29mm |
| Mating Pin Length | 5.84mm |
Key Features
- Features a right angle orientation to facilitate space-efficient PCB layouts.
- Manufactured with a black glass filled polyester insulator for durability.
- Contacts made of phosphor bronze with gold plating ensure excellent conductivity and corrosion resistance.
- Rated for a current of 7.6 Amperes and voltage of 450 Volts for robust electrical performance.
- Designed for through hole mount type with a solder termination for secure attachment.
- Operating temperature range from -55°C up to 125°C supports diverse environments.
- The header has a tail pin length of 2.29 mm and a mating pin length of 5.84 mm.
- Unshrouded design allows easy mating with compatible sockets and connectors.
Product Description
Samtec TSW-112-08-L-S-RA is a high-quality PCB through hole right angle pin header with 12 male contacts arranged in a single row and a pitch of 2.54 mm. The header features a robust black glass filled polyester housing that assures mechanical stability and electrical insulation.
The contacts are made of phosphor bronze and plated with gold to provide excellent conductivity and resistance to oxidation. With a rated current of 7.6 A and voltage rating of 450 V, it is suitable for a wide range of electronic applications including board-to-board and wire-to-board connections in industrial, electronic manufacturing, telecommunications, and control systems.
Its through hole mount type ensures strong mechanical retention on PCB assemblies. The operating temperature range from -55°C to 125°C enables usage in harsh environments. The tail pin length of 2.29 mm and mating pin length of 5.84 mm match standard TSW series dimensions.
The unshrouded design allows compatibility with numerous socket options, easing integration into electronic devices and systems. Applications span from prototyping and repair tasks to final product assembly in industrial electronics, automation, and communications equipment.
Right angle orientation optimizes PCB space utilization. Glass filled polyester housing offers durability and insulation. Gold-plated phosphor bronze contacts enhance conductivity and longevity. Supports 7.6 A current and 450 V voltage for reliable performance.
Through hole solder termination ensures robust mounting. Wide operating temperature range from -55°C to 125°C. Unshrouded single row, 12 contact configuration. Ideal for industrial, laboratory, manufacturing, and electronic assembly applications.
Samtec TSW series headers provide standardized, reliable interconnect solutions for various PCB designs. This model, TSW-112-08-L-S-RA, combines durability, electrical performance, and design flexibility.
Explore the Electronics Components category at EnvMart for trusted PCB Headers and connectors to enhance your electronic projects and manufacturing needs.
