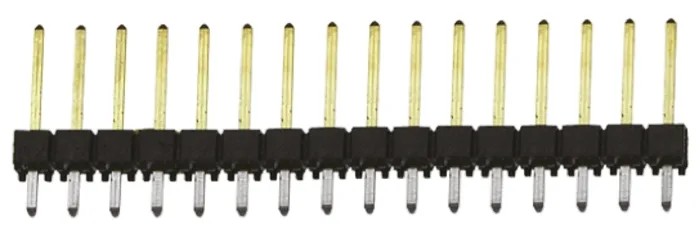

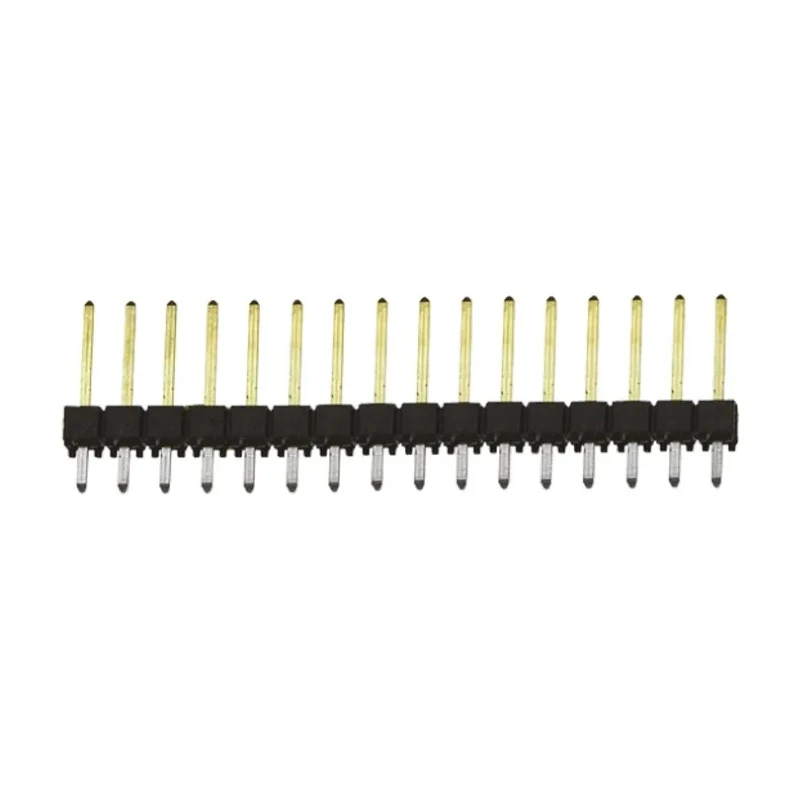

Samtec TSW Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSW-116-14-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-116-14-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- Features a straight orientation with phosphor bronze contacts plated with gold.
- Constructed with a glass-filled polyester housing for durability.
- Operating temperature range from -55°C to 125°C ensuring versatile environmental tolerance.
- Includes 2.79 mm tail pin length and 8.13 mm mating pin length for secure connections.
- Suitable for board-to-board and wire-to-board connector systems.
- Designed for solder termination type ensuring strong mechanical and electrical bonds.
- Unshrouded single-row configuration ideal for various PCB applications.
- Meets industrial standards without specific certifications indicated.
Product Description
Samtec TSW-116-14-L-S Straight Through Hole Pin Header is a high-quality PCB connector designed for industrial, electronic, and manufacturing applications. This 16-contact single-row header features a 2.54 mm pitch and unshrouded design to facilitate easy and secure through-hole mounting on printed circuit boards.
The connector’s housing is made from durable glass-filled polyester, providing excellent mechanical strength and thermal resistance. Contacts are crafted from phosphor bronze with gold plating, ensuring reliable conductivity and resistance to corrosion.
Rated for a voltage of 550V and carrying a current capacity of 7.6A, this header supports robust electrical performance. It operates effectively in a broad temperature range from -55°C to 125°C, making it suitable for harsh environments.
The termination is solder type, allowing secure mechanical and electrical bonding to PCBs. Tail pin length is 2.79 mm, and the mating pin length extends 8.13 mm, ensuring compatibility with a variety of socket types. The straight orientation and single-row formation are ideal for board-to-board and wire-to-board connector arrangements.
This TSW Series header is widely used across electronic manufacturing, equipment assembly, and industrial automation sectors where reliable and precise PCB connectivity is essential.
Straight orientation with phosphor bronze gold-plated contacts. Glass-filled polyester housing for durability and thermal resistance. 550V voltage rating and 7.6A current capacity. Operating temperature from -55°C to 125°C.
Solder termination for strong mechanical and electrical bond. 2.79 mm tail pin length and 8.13 mm mating pin length. Single row, unshrouded 16-contact configuration. Suitable for board-to-board and wire-to-board systems.
This Samtec TSW-116-14-L-S Pin Header ensures a reliable connection solution for various PCB applications in electronics, industrial automation, and manufacturing production lines. Explore EnvMart’s extensive selection of PCB headers and connectors for compatible accessories and components.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this pin header is 550V.
This model supports a current capacity of 7.6A.
The pitch size for the contacts is 2.54 mm.
The contacts are made from phosphor bronze with gold plating, and the housing is constructed from glass-filled polyester.
The operating temperature range is from -55°C to 125°C.
This pin header uses a solder termination type for secure connections.
The tail pin length is 2.79 mm.
The mating pin length is 8.13 mm.
This pin header has 16 contacts.
It is suitable for board-to-board and wire-to-board connector systems.
The configuration is unshrouded and consists of a single row.
The TSW-116-14-L-S pin header is manufactured in India.
