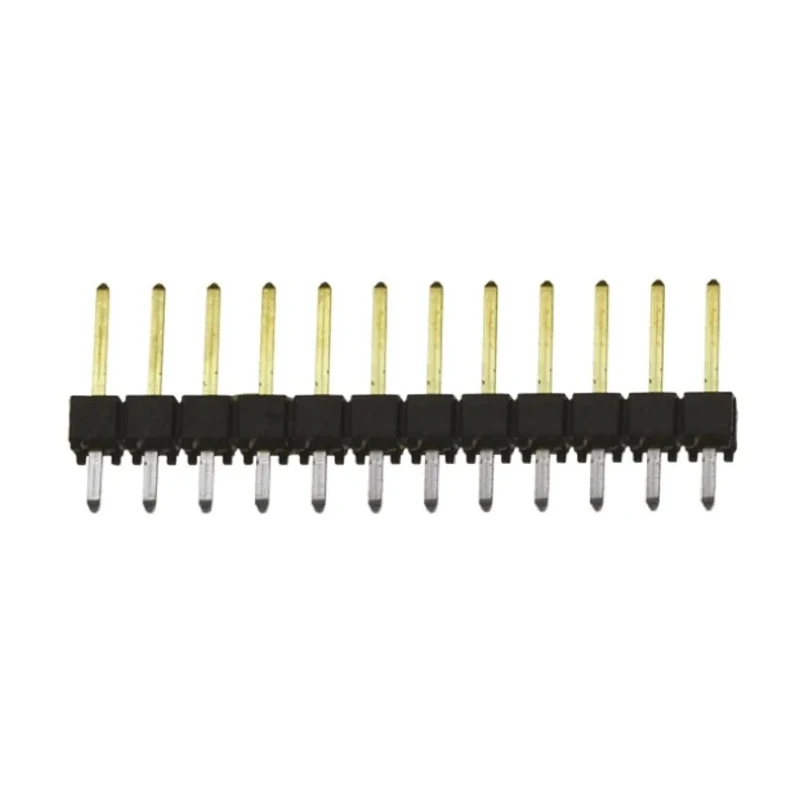

Samtec TSW Series Straight Through Hole Pin Header 12 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-112-07-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-112-07-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
Key Features
- Constructed with glass filled polyester housing for durability.
- Gold-plated phosphor bronze contacts ensure excellent conductivity.
- Single row unshrouded configuration for easy solder termination.
- Rated for current up to 7.6A and voltage up to 550V.
- Operating temperature range from -55°C to 125°C.
- Tail pin length of 2.54 mm and mating pin length of 5.84 mm.
- Through hole mount type suitable for robust PCB assembly.
- Supports board-to-board and wire-to-board connector systems.
Product Description
Samtec TSW-112-07-L-S straight through hole pin header is a precision electronic connector designed for PCB interfacing in industrial and electronic applications. This single row headers have 12 pins spaced at a standard 2.54 mm pitch and are constructed from durable glass filled polyester housing paired with high-quality phosphor bronze contacts plated in gold to ensure reliable connectivity and corrosion resistance.
The unshrouded design enables straightforward solder termination with a tail pin length of 2.54 mm and mating pin length of 5.84 mm, ideal for board-to-board and wire-to-board connections. Rated for 7.6 amperes current carrying capacity and 550 volts operating voltage, it functions reliably within temperature ranges from -55°C to 125°C, making it suitable for demanding industrial environments.
These through hole mount pin headers facilitate robust mechanical and electrical connections on printed circuit boards commonly used in manufacturing, telecommunications, and electronic device assembly. The TSW series provides multiple configurations, but this specific part number corresponds to a 1-row, 12-contact, unshrouded header ensuring easy integration in your designs.
Constructed with glass filled polyester housing for mechanical strength. Gold-plated phosphor bronze contacts provide excellent electrical performance. Single row, unshrouded configuration for versatile PCB layout. Supports 7.6A current and 550V voltage for dependable operation.
Operating temperature from -55°C to 125°C for wide application range. Through hole mounting ensures firm PCB attachment. Tail pin length of 2.54 mm and mating pin length of 5.84 mm dimensions. Suitable for board-to-board and wire-to-board connector systems.
Ideal for industrial, electronic manufacturing, and telecommunications use cases.
This Samtec TSW series through hole pin header offers a dependable, industry-standard connector solution for electronic component assembly and design projects. Its robust materials and clear specifications meet critical performance standards, helping ensure long-term reliability in diverse professional applications.
Explore detail-rich categories and products in our extensive Electronics & Electricals collection on EnvMart for all your industrial component needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.6A and a voltage of 550V.
The operating temperature range is from -55°C to 125°C.
The contacts are spaced at a pitch of 2.54 mm.
This pin header has 12 contacts.
It is constructed with glass filled polyester housing and gold-plated phosphor bronze contacts.
This model uses solder termination.
Yes, it supports both board-to-board and wire-to-board connector systems.
The tail pin length is 2.54 mm.
The mating pin length is 5.84 mm.
It uses through hole mounting for robust PCB assembly.
The orientation of this connector is straight.
The country of origin for this product is India.
