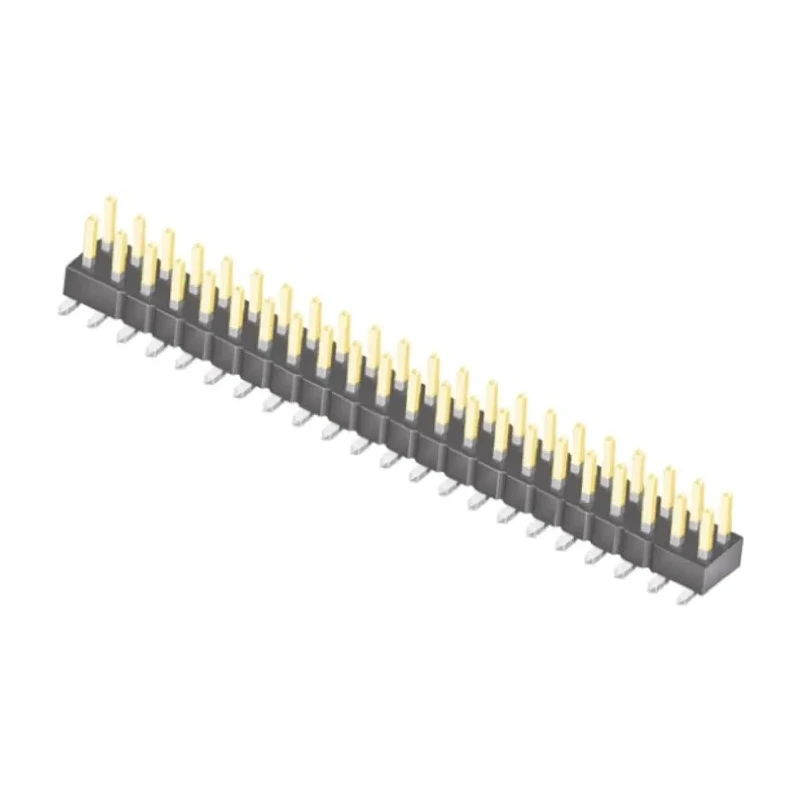

Samtec TSM Series Straight Surface Pin Header, 44 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-122-01-L-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec TSM Series Straight Surface Pin Header, 44 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-122-01-L-DV

Name: Samtec TSM Series Straight Surface Pin Header, 44 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-122-01-L-DV
Brand: Samtec
SKU: 105216
Price: 5.92 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	475V
Brand	Samtec
Orientation	Straight
Current	7A
Model	TSM-122-01-L-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TSM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	44
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Mating Pin Length	5.84mm

Key Features

Features a black liquid crystal polymer housing for high durability.
Built with phosphor bronze contacts plated with 0.25μm gold on post and matte tin on tail.
Rated for 7 amperes current carrying capacity and 475 volts voltage.
Operates reliably from -55°C to 125°C in harsh environments.
Offers a 5.84 mm mating pin length for flexible board-to-board and wire-to-board configurations.
Designed for surface mount technology assembly in PCB applications.
Unshrouded design allows easy mating with compatible sockets.
Compatible with various socket types such as BCS, SSW, and SSM series.

Product Description

Samtec TSM-122-01-L-DV is a high-performance surface mount technology straight pin header designed for PCB board-to-board and wire-to-board interconnections. It features 44 male contacts arranged in 2 rows with a 2.54 mm pitch, housed in a robust liquid crystal polymer insulator offering excellent mechanical stability.

The contacts are made of phosphor bronze and plated with 0.25μm gold on the post for optimal conductivity and corrosion resistance, while the tail has a matte tin finish to ensure reliable solder joints. This pin header supports a continuous current rating of 7 amperes and a voltage rating of 475 volts, suitable for various industrial and electronic applications requiring high reliability.

Operating temperature ranges from -55°C to 125°C, making it ideal for use in demanding environments. The 5.84 mm mating pin length enables secure engagement with mating sockets, such as the BCS standard box sockets or SSM surface mount socket strips. The unshrouded design permits easy access for soldering and mating, expanding application flexibility.

This TSM series header is suitable for industrial manufacturing, electronics prototyping, assembly lines, and other applications requiring durable and precise PCB connections. Its surface mount configuration simplifies automated assembly processes and reduces installation time.

Robust liquid crystal polymer housing enhances durability. Phosphor bronze contacts with gold and matte tin plating ensure high conductivity and solderability. Supports 7A current and 475V voltage for robust electronic performance.

Wide operating temperature range of -55°C to 125°C for harsh environments. 5.84 mm mating pin length for strong and reliable connections. Unshrouded double-row design for easy access and flexible applications. Compatible with various socket types for versatile connectivity.

Ideal for industrial, manufacturing, and prototyping uses.

For those seeking reliable PCB headers with proven industrial specifications, the Samtec TSM-122-01-L-DV offers a dependable solution. Explore further options in PCB Headers and connectors at EnvMart.
