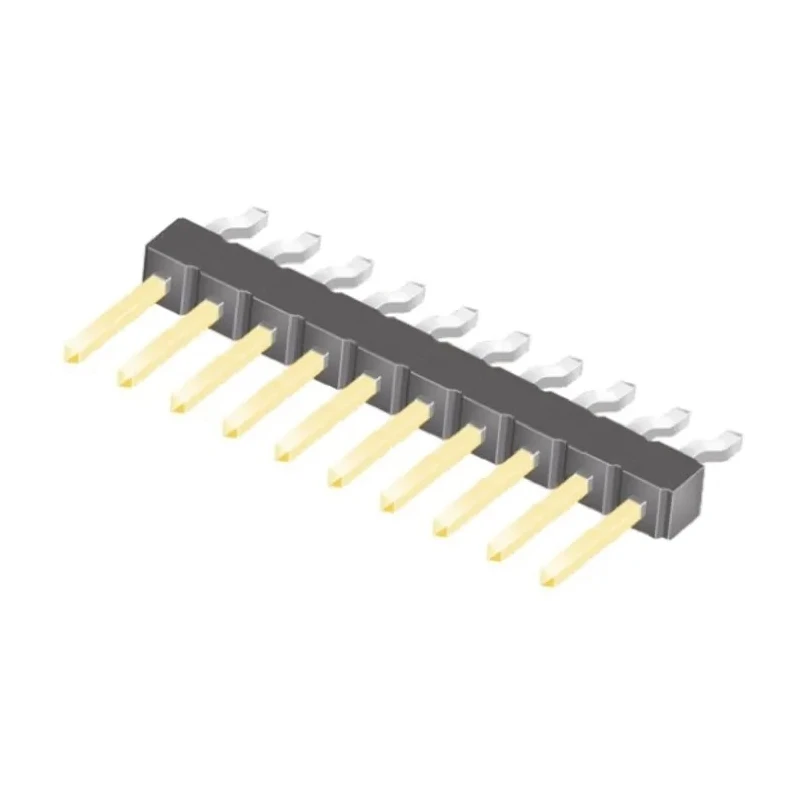

Samtec TSM Series Right Angle Surface Pin Header 10 Contacts 2.54mm Pitch 1 Row Unshrouded TSM-110-02-L-SH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 7A |
| Model | TSM-110-02-L-SH |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 8.13mm |
Key Features
- Manufactured from liquid crystal polymer housing for high durability.
- Phosphor bronze contacts plated with 0.25μm gold ensuring reliable conductivity.
- Supports a maximum current of 7 A and voltage up to 475 V.
- Operating temperature range from -55°C to 125°C for versatile industrial use.
- Mating pin length is 8.13 mm suitable for right angle SMT mounting.
- Designed for surface mount technology with solder termination.
- Single row, 10 contact configuration simplifies compact PCB designs.
- Unshrouded design allows easy mating with complementary connectors.
Product Description
Samtec TSM-110-02-L-SH is a precision right angle surface mount pin header designed for electronic and industrial applications requiring dependable board-to-board and wire-to-board connectivity. This connector features 10 male contacts arranged in a single row with a 2.54 mm pitch, housed in a robust liquid crystal polymer body resistant to high temperatures and mechanical stresses.
The phosphor bronze contacts are plated with 0.25μm gold on the posts to ensure excellent electrical conductivity and corrosion resistance, complemented by a matte tin finish on the tails for reliable soldering. The right angle orientation supports SMT mounting on printed circuit boards, with an 8.13 mm mating pin length suitable for precise engagement with compatible socket strips.
Rated for a maximum current of 7 A and voltage up to 475 V, this pin header maintains stable operation within an industrial temperature range of -55°C to 125°C. Its unshrouded male contact design facilitates quick and secure mating in complex electronic assemblies, without obstructing adjacent pins.
These features make the TSM-110-02-L-SH ideal for demanding industrial environments, electronic manufacturing, telecommunications, and advanced PCB assembly lines. The product complies with common industry standards, though it does not carry specific certifications, emphasizing its general-purpose robustness.
Liquid crystal polymer housing ensures mechanical strength and thermal resistance. Phosphor bronze gold-plated contacts offer superior electrical performance. Surface mount technology termination guarantees reliable PCB integration.
Compact 2.54 mm pitch and single row configuration optimize PCB layout. Wide operating temperature supports industrial and commercial applications. Right angle design aids in space-saving board configurations. Unshrouded contacts allow easy inspection and maintenance.
Explore the full range of PCB connectors and headers at EnvMart for compatible and complementary products designed for quality electronic assembly solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 7 A.
This pin header can handle a maximum voltage of 475 V.
The operating temperature range for this connector is from -55°C to 125°C.
This model features 10 male contacts arranged in a single row.
The pitch of the contacts is 2.54 mm.
The housing is made from liquid crystal polymer, which provides high durability and thermal resistance.
This pin header uses solder termination for reliable PCB integration.
The mating pin length is 8.13 mm, suitable for right angle SMT mounting.
The TSM-110-02-L-SH features an unshrouded design, allowing easy mating with complementary connectors.
This connector is suitable for board-to-board and wire-to-board connectivity in electronic manufacturing and telecommunications.
The orientation of this model is right angle, which aids in space-saving board configurations.
This pin header is manufactured in India.
